Meet API Spec 8A/8C standardCE/ISO certificate.
Top quality and best price.

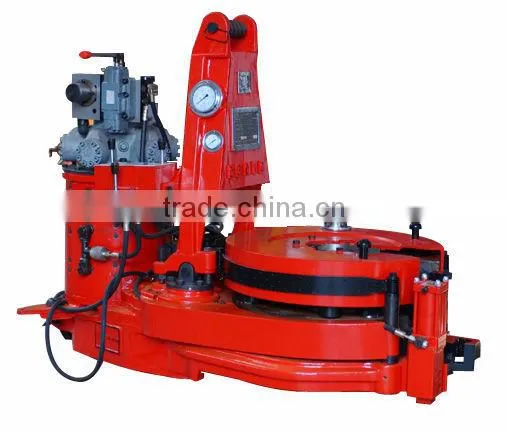

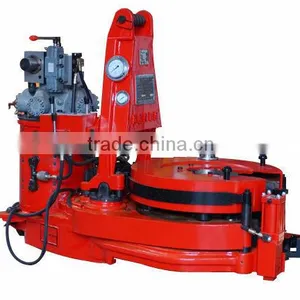

ZQ Drill Pipe Power Tong
ZQ Drill Pipe Power Tong
1.The drill pipe power tong is an ideal oil drilling wellhead tools, widely used in marine, land drilling andworkover operations on unloading column threaded operations.
2.Use of this clamp can play safety, effortto improve the ergonomics of the role.
3.The series clamp, open type, be free to disengage the column,the mobile; set torque clamp and spinner clamp at one shackle on alternative catwork, tongs and spinrope.
4.The tongs are in line with norms SY/T5074 standards and API Spec 7K.
Model |
ZQ127-25 |
ZQ162-50 |
ZQ203-100 |
ZQ203-125 |
|||
Size range |
Drill pipe |
mm |
65-127 |
85-162 |
127-203 |
127-203 |
|
in |
23/8~31/2 |
23/8~5 |
31/2~8 |
31/2~8 |
|||
Casing |
mm |
65-127 |
114.3~153.7 |
|
|
||
in |
23/8~31/2 |
41/2~51/2 |
|
|
|||
Oil pipe |
mm |
65-127 |
138-156 |
|
|
||
in |
23/8~31/2 |
31/2~41/2 |
|
|
|||
Max.torque |
kN.m |
25 |
50 |
100 |
125 |
||
ft.lbf |
18440 |
36880 |
73750 |
92200 |
|||
Speed(High gear) |
rpm |
65 |
60 |
40 |
40 |
||
Speed(Low gear) |
rpm |
10.5 |
4.1 |
2.7 |
2.7 |
||
Air pressure |
MPa |
0.5–0.9 |
|||||
psi |
72–130 |
||||||
Pressure rating |
MPa |
12 |
14 |
16.6 |
20.7 |
||
psi |
1740 |
2030 |
2400 |
3000 |
|||
Flow rating |
L/min |
120 |
120 |
114 |
114 |
||
gpm |
31.7 |
31.7 |
30 |
30 |
|||
Shifting distance |
mm |
1000 |
1000 |
1500 |
1500 |
||
in |
39.4 |
39.4 |
59 |
59 |
|||
Size |
mm |
1110×735× |
1570×800×1190 |
1760×1000×1360 |
1760×1080×1360 |
||
in |
44×31×32 |
62×31×47 |
69×39×53 |
69×40.5×53 |
|||
Weight |
kg |
620 |
1500 |
2400 |
2650 |
||
lb |
1360 |
3310 |
5290 |
5840 |
|||
IF THE TYPE, SIZE AND SPECIAL REQUIREMENTS OF PRODUCTS ARE NOT COVERED HEREIN, PLEASE DON'T HESTITATE TO CONTACT US, AND WE WILL REPLY PROMPTLY.
