API 16A Annular BOPAtandard: API 16A
Packing element:spherical or tapered type
Piston is set in low position

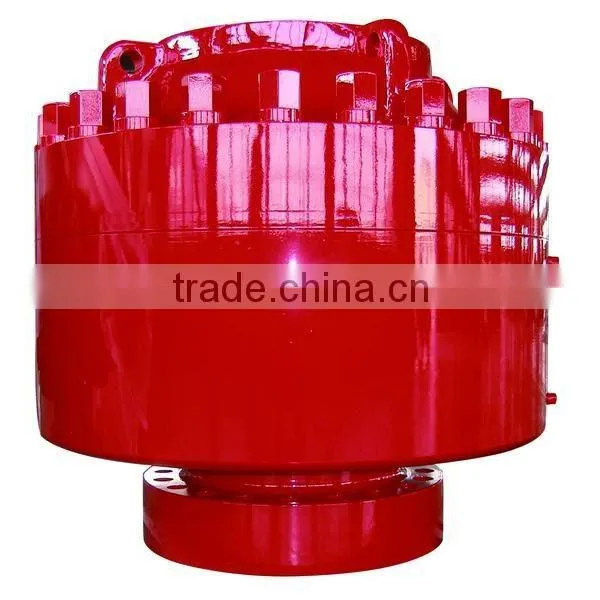

API 16A Annular BOP
The design and manufacture of Annular BOP is according to API Spec 16A standard.
Packing element is spherical or tapered type with massive storage volume, low operation pressure and excellent sealing function;
Bonnet is hemispherical-shaped, so there is no stress concentration on bonnet whenever bearing the pressure.
Bonnet and body are connected by a wedge block, so the pressure is evenly distributed;
Packing element is interchangeable with similar overseas products;
Use observation hole to check the life span of the packing element;
Piston is set in low position to have a shorter moving distance; Use wear ring on piston.
Annular BOP classification | |||||
Operating pressure |
Drift diameter(in) |
||||
7 1/16 |
11 |
13 5/8 |
20 3/4 |
21 1/4 |
|
2000 |
Flange connection(bolted) |
Flange connection(bolted) |
Flange connection(bolted) |
- |
conical |
3000 |
Flange connection(bolted) |
Flange connection(bolted) |
Flange connection(bolted) |
conical |
- |
5000 |
Flange connection(bolted) |
Flange connection(bolted) |
Flange connection(bolted) |
- |
- |
10000 |
Flange connection(bolted) |
Wedge block connection |
Wedge block connection |
- |
- |
