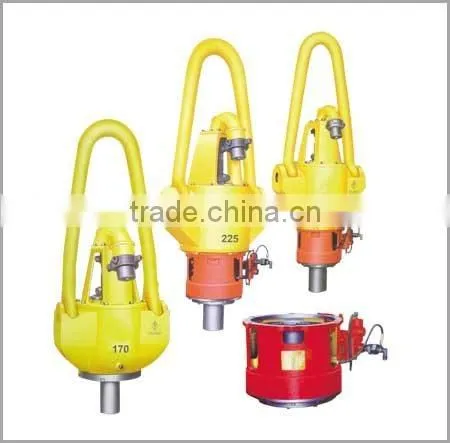

SL160 API 8A Drilling Swivel

SL160 API 8A Drilling Swivel thumbnail-1
SL160 API 8A Drilling Swivel photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
sinotai
Model Number:
all types
Contact Supplier Request Quote Chat Now
Sinotai Petroleum Equipment Co., Ltd.
Silver Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name sinotai
Model Number all types
Type Other, drilling rig accessories
Machine Type Drilling Equipment
Certification API
Material High Manganese Steel
Processing Type Forging
Use Well Drilling

Specifications

SL160 API 8A Drilling Swivel
1 API 8A
2.Max Dead Load:1600KN
3.Max Rotary Speed:300 r/min
4.Max Working Pressure:35MPa

L160 API 8A Drilling Swivel




Technology Specification

  1. Type :                           SL160
  2. Max Dead Load :                  1600KN
  3. Max Rotary Speed:                 300 r/min
  4. Max Working Pressure :             35MPa
  5. Inside diameter of Central Pipe :      φ60mm
  6. Inside Diameter of Water Filling Pipe : φ57.15mm
  7. Bottom Tread of Central Pipe :        41/2 FH-LH
  8. Winding Radius of Elevator Link :     115 mm
  9. Joint of Screw Thread :         6 5/8 REG-LH(API Spee 7)
  10. Connecting Style of Gooseneck : screw thread  4NPT

 SL160 API 8A Drilling Swivel

Structure Instructions

1,Equipped with standard bails.

2,The wash pipe and packing assembly are cartridge type and can be replaced on the floor without disconnecting the rotary hose and/or gooseneck..

3,The gooseneck is provided with a outlet for wire line logging.

4,Equipped with 4API hose connection.

5,The Swivels conform to API specification 8A and API monogram can be used.



Model

SL135

SL160

SL170

SL225

SL450

LB140

CH125


Max. static load rating
kN

1350

1600

1700

2250

4500

1245

1250


Max. speed
r/min

300

300

300

300

300

300

300


Max. working pressure
Mpa

27.5

35

35

35

35

27.5

21


Dia.of stem
mm

60

57

70

75

75

60

68



15°

15°

15°

   15°

15°

15°

15°


Coupling thread


API
To stem

4 1/2
FH LH

4 1/2
REG LH

4 1/2
REG LH

65/8
REG-LH

6 5/8
REG LH

4 1/2
FH LH

4 1/2
FH LH


API
To Kelly

6 5/8
REG LH

6 5/8
REG LH

6 5/8
REG LH

6 5/8
REG LH

75/8
REG LH

6 5/8
REG LH

6 5/8
REG LH

××
Overall dimension(L×W×H)
mm

2291×
638×
648

2267×
781×
660

2169×
638×
648

2980×
1060×
860

3034×
1096×
1110

2291×
638×
648

620×
660×
2099



Weight
kg

777

1750

1500

2500

3060

  777

625
