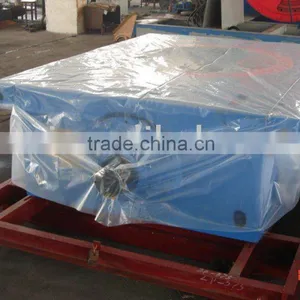

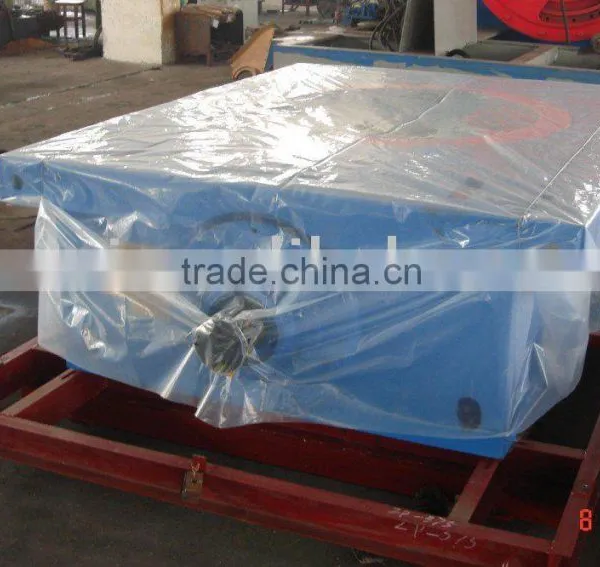

Api ZP495 Rotary Table
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
sinotai
Model Number:
ZP495
Payment & Shipping
Payment Methods:
Port of Shipment:
main port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Shandong, China
Brand Name
sinotai
Model Number
ZP495
Type
Rotary Table
Machine Type
Drilling Equipment
Certification
API
Material
Other, alloy steel
Processing Type
Casting
Use
Well Drilling
Specifications
ZP495 rotary table:1.Standard: API Spec. 7K.
2.Type:ZP175,ZP205,ZP275,ZP375,ZP495
ZP495 rotary table
- The rotary table conforms to API Spec. 7K.
- Kelly drive and pin drive are available for the master bushing.
- With API casing bushing.
- Input shaft type includes sprocket or flange.
- The installation locating block is provided.
Model |
ZP175 |
ZP205 |
ZP275 |
ZP375 |
ZP495 |
Dia. of opening mm(in) |
444.5(17 1/2) |
520.7(20 1/2) |
698.5(27 1/2) |
952.5(37 1/2) |
1257.3(49 1/2) |
Table axis to center inner row sprocket teeth mm(in) |
1118(44) |
1353(53 1/4) |
1353(53 1/4) |
1353(53 1/4) |
1651(65) |
Max. static load KN |
1350 |
3150 |
4500 |
5850 |
7250 |
Max. working torque Nm |
14000 |
23000 |
28000 |
33000 |
37000 |
Max. speed r/min |
300 |
300 |
300 |
300 |
300 |
Gear ratio |
3.58 |
3.22 |
3.67 |
3.56 |
3.93 |
