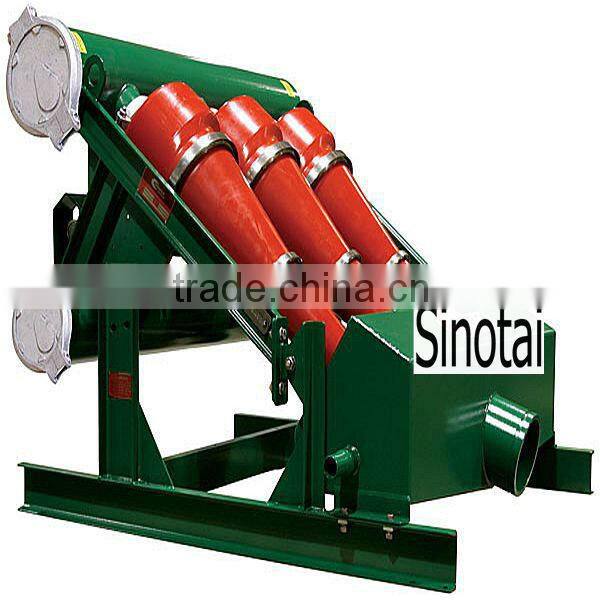

QJ250 API Desander 10"cone

Name: QJ250 API Desander 10"cone
Brand: Sinotai
SKU: 119517631
Availability: InStock

US$ 10,000 - 100,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

Sinotai

Sinotai Petroleum Equipment Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

main ports of China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name Sinotai

Power(W) 0.15~0.35Mpa

Weight 2000kg

Certification API

Warranty 18 months

After-sales Service Provided Engineers available to service machinery overseas

Main feature:

1.Desander is the second class and the third class solid control equipment to treat the drilling fluid.

2.According to the size of the cone diameter, it is dividedinto desander and desilter.

3.Usually the cone diameter is more than 6″is called desander, and used as the second-control equipment in drilling operation.

4.We commonly used 8 "and 10" cones desander to separate solid-phase particle size 47-76μm in the drilling fluids

5.It apply for directional drilling.

Desander

The main technical performance and specification for the desander:

Model	QJ200S	QJ250S	QJ300S	QJ200	QJ250	QJ300
Capacity	≤120m3/h ≤528GPM	≤180m3/h ≤792GPM	≤240m3/h ≤1056GPM	≤120m3/h ≤528GPM	≤180m3/h ≤792GPM	≤240m3/h ≤1056GPM
Cone size	8"	10"	12"	8"	10"	12"
Pressure	0.15~0.35Mpa
Inlet Size	75-100mm	100-150mm	150-200mm	75-100mm	100-150mm	150-200mm
Outlet Size	125-150mm	150-200mm	200-250mm	125-150mm	150-200mm	200-250mm
Separation size	47-76μm		47-76μm		47-76μm
Screen area	1.0m2(600×1600mm)			No Under fluids Shaker
