DXDK Automatic Grain Packing Machine
General (Automatic Packing Machine):
The Automatic Grain Packing Machine is suitable for automatic packaging of granular products, such as coffee tea, seeds, foodstuffs, medicines, chemicals etc.
Application (Automatic Packing Machine):
The Automatic Grain Packing Machine is widely used for automatic packaging of granular products, such as coffee tea, seeds, foodstuffs, medicines, chemicals etc.
Features (Automatic Packing Machine):
1.Control System: Chinese/English is displayed in touch screen, Mitsubishi PLC controller. The language can be customizing.
2. Filling system is drive by measuring cup, the filling system has structural stability and non-fragile.
3. Bag-making, coding, measuring, filling, sealing, cutting are all finished automatically.
4. The temperature is under independent PID control, more suitable for different packing materials.
5. Optional device: Ribbon printer, Gas flushing device, Air expeller device, Hole punch device, easy tear notch device.
6. Bag Shape: Pillow sealing, three side sealing, and four side sealing.
7. Wrapper: PET/PE, Paper/PE, PET/AL/PE, OPP/PE
8. Special sizes can be customized!
Technical Specification(Automatic Packing Machine Grain):
Model |
DXDK-20III |
DXDK-50III |
DXDK-150III |
DXDK-500III |
Power |
1.8kw |
2.2kw |
||
Voltage |
1P 220V 50hz |
|||
Packing Speed |
60bpm |
50bpm |
40bpm |
30bpm |
Filling Volume |
2-20ml |
5-50ml |
10-150ml |
50-500ml |
Bag length size |
35-80mm |
50-110mm |
50-150mm |
50-220mm |
Bag width size |
25-70mm |
30-80mm |
30-110mm |
30-150mm |
Gross Weight |
280kgs |
320kgs |
350kgs |
400kgs |
Package Size |
800×600×1780mm |
800×700×1900mm |
900×820×2300mm |
1000×820×2300mm |

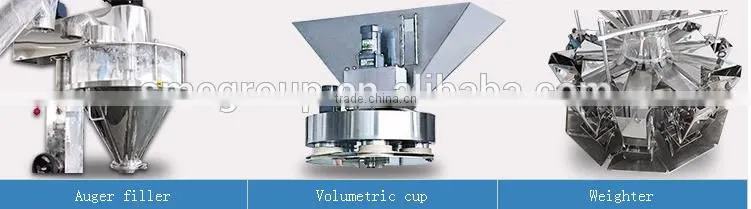

| Optional Parts: |
| Measuring Cup Device |
| Combination Weigher |
| Screw Metering Machine |
| Plunger Pump Or Gear Pump Metering System |
| Hdl Series Main Machine |
| Z Type Bucket Elevator |
| Vibration Feeder |
| Supporting Platform |
| Product Conveyor |
| Screw Infeed Conveyor |
| Material Elevator |
| Nitrogen-Making Machine |
| Check Weigher |
| Metal Detector |
| Nitrogen-Making Machine |
| And So On |
| 1.Efficient: to finish the production, sealing, packaging and date printing in one time. |
| 2.Intelligent: automatic stop function, unsticky and not wasting the films. |
| 3.Convenient: labor-saving, low loss, easy to operate and maintain. |
Pillow Packaging Machine Large Vertical Automatic Packaging Machine- Multiple Choices
| SPARE PARTS | ||
Spare parts |
Brand |
PLC |
Panasonic or Siemens |
Frequency Inverter |
Panasonic |
Proximity Switch |
Omron or Sick |
Connecting Terminals |
Weidmueller |
Display Screen |
HITECH |
Magic Eye |
Shanghai Yatai |
Temperature Control Meter |
Shanghai Yatai |
Pushbutton Switch |
Schneider |
Power Board |
Taiwan Ming Wei |
Circuit Breaker |
MUNLAN |
Two Wire Switch |
Schneider |
Touch screen |
Touch screen for Taiwan WEINVIEW |
Motor |
Guangdong Jiang Chen |
Emergency Stop Switch |
Schneider |
Auxiliary Relay |
Schneider |
Solid State Relay: |
Schneider |
We provide:
1. Best product quality and competitive price
2. On time delivery and the shortest delivery time
3.One year warranty: If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery.
4. OEM and customized service, products could be customed as your requirements.
5. User manuals will go with relative machines.
We assure:
1. All products will be checked before delivery
2.Compensation: If any unqualified product is found, we'll pay the compensation or send new qualified products to customers
3.Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.
4.Operation Guidance: If you have any problem with operation, please feel free to contact us
Matters not mentioned here could be discussed.
