Portable Visualizer,document Camera
Specifications
Portable visualizer with CMOS camera, USB and VGA output, remote controller,real-time demostrate document and 3D objects
Portable visualizer P06, with two CMOS cameras, USB and VGA output, remote controller, real-time demostrate document and 3D objects, teaching aids equipment for education
Hardware Specifications:
| Interface | VGA out, VGA in, USB2.0, DC in | |
| Unfolded size | 312 x 305x 81 mm | |
| Folded size | 312 x 122x 81 mm | |
| Net weight | 856.7±0.3g | |
| Accessories | VGA Cable, USB cable, DC adapter, Remote controller, Software CD, Scanning mat | |
| Camera 1 | Camera 2 | |
| Output interface | USB | VGA |
| Sensor | 1/2.5inch CMOS, 3 megapixels | 1/2.5inch CMOS,2 mega pixels |
| Resolution | 2048x1536,1920x1080,800x600 | 1280x1024,1280x800,1024x768,800x600 |
| Frame rate | 15fps @2592x1944,1080P (16:9), 30fps@800x600 | max. 30fps@640x480 |
| Focus type | Fixed | Auto |
| Shooting area | A4 (210mm x 297mm) | 360 degrees ajustable angle |
| Power supply | 5V USB | 5V DC adapter |
| Connect to | Computer | Projector or LCD monitor |
| Micro phopne | Yes | No |
| Software | Yes | No need |
| Remote control | No | Yes |
Software Specifications:
1. When connected to computer through USB port, you can use software
2. Main function: Document presentation, Object presentation, Image caputure, Video recording
Computer Requirements:
CPU 2.3GHz recommended
RAM 2G recommended
Hard Disk free space 1G
Windows XP, Windows vista, Windows 7
Mac OS 10.5 above
Accessories: USB cable, VGA cable, DC adaptor, Scanning mat, Software CD, User manual
Applications: Scanning when connected with computer

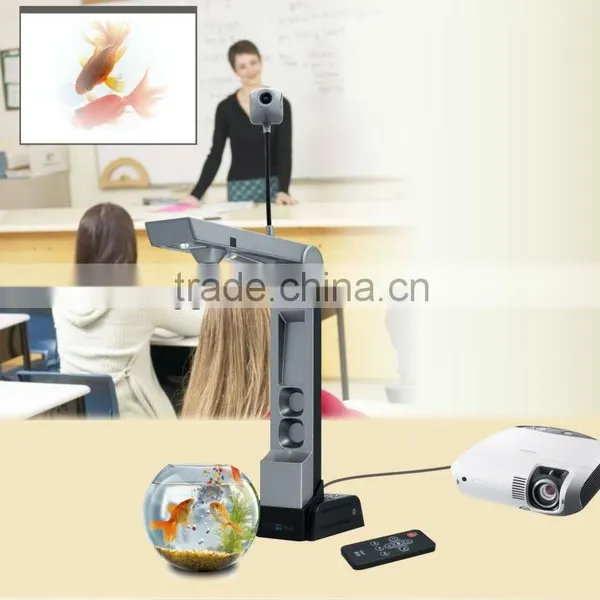

Live Presentation document , 3D object
Individual package: printed color box or white box. Dimension: 410*375*675mm
10 units per carton,Carton size: 410x375x675mm,N.W.: 19KG,G.W.: 20KG ,
20 FT container Qty : 2540 units,
40 FT container Qty: 5080 units
Hardware and software design, develop and supports. We accept OEM and ODM orders according to customer's special requirements.
Warranties: Full inspection from incoming material, production lines to packing. Normally 1 year after sales. If you want to have longer time warranty, we can negotiate further.
Established in 2003, with 11 years development , not Shenzhen Digital-Leader Technology is a Hi-tech technology enterprise, a member of China educational equipment association. ISO 9001:2008 AND ISO14001:2004 Verified, own product design patent, own application software copyright, own "DINGYI" and " XINGDINGYE" trademark, own 4000 square meters workshop building.
Sample lead time : 7 days
Normal mass production time : 15days
Price term: FOB Shenzhen or Hong Kong ,CIF destination
Shipping method : Air express, General Airline, By Sea
MOQ: 100 units for standard factory package
MOQ: 500 units for customized package
Payment terms: 30 deposit after order confirmed, 70% balance before shipment
Warranty: at least one year dated from good received
Certificates: CE/FCC/ROHS
