A3 Size Work Without Computer Visual Presenter

A3 size work without computer visual presenter

The visual presenter is the quick and easy way to real-time display document and object or transform your paper document, object to high-quality digital files, allowing you to manage, send or upload them to the cloud.And can work without computer,directly connect the whiteboard or LED screen.

Application: education industry, financial institutions, government, health care institutions for people with bad vision, enterprises,on line traning, SOHO users and so on.

Features at a Glance

Auto-focus mode doc cam: stream live images directly to your PC or Mac

5.0 Megapixel camera for exceptionally detailed HD images up to 2592 x 1944 pixels

Gooseneck design, Multi-angle image capture and video recording make your captures quick and effortless

Built-in LED light, automatic resolution and exposure, and a suite of other smart features

Captures docs, textbooks, devices, 3D objects and more without taking up too much space

Bundled specific software enable for easy work

3 in 1 output mode, USB,VGA, HDMI multi-interface flexible for all kinds of requirement.

Control panel for easy operation, just press the control panel, all functions can be carried out. Remote controller offer flexible wireless operation in classroom or conference.

A3 large size capture, 10X digital zoom for full HD presentation

Work standalone without PC, support SD card storage, capture and save image or video into SD card.

Specifications

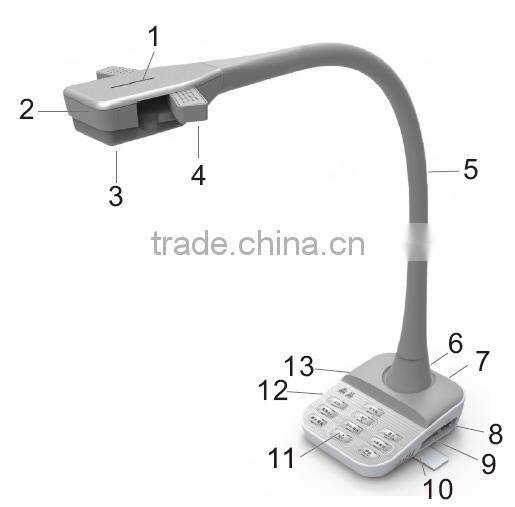

Main body

1= Power indicator light: Turn on the power switch, the power indicator light is lit, which means the power is connected.

2= Infrared receiver (IR): It is for receiving signal issued by remote controller.

3= Lens

4= Left and Right LED light: Light compensation

5= Gooseneck pipe: Multi - angle rotation

6= VGA out: Signal transfer out to other VGA device

7= VGA in : Signal transfer in from other VGA device

8= HDMI out: Signal transfer out to other HDMI device

9= SD card slot: Provide storage for the product

10= Support feet: Open the support feet to enlarge base support

11= Control panel: Pressing the control panel, all functions can be carried out

12= USB 2.0 port: For connecting computer or mouse

13= DC in: For connecting the AC adapter

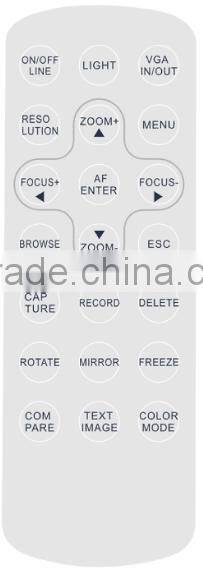

Remote controller

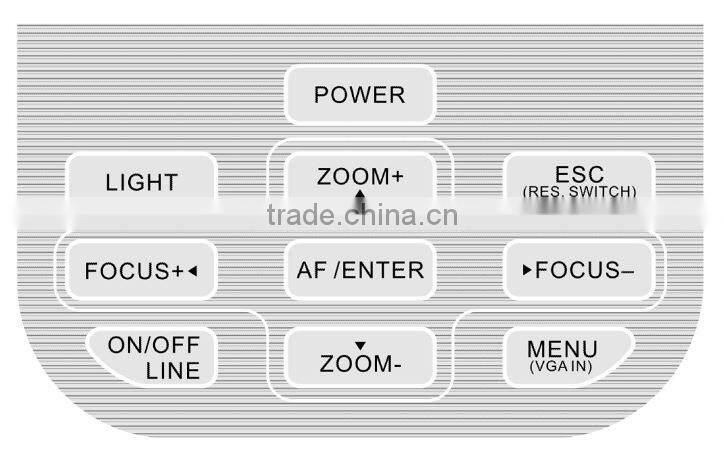

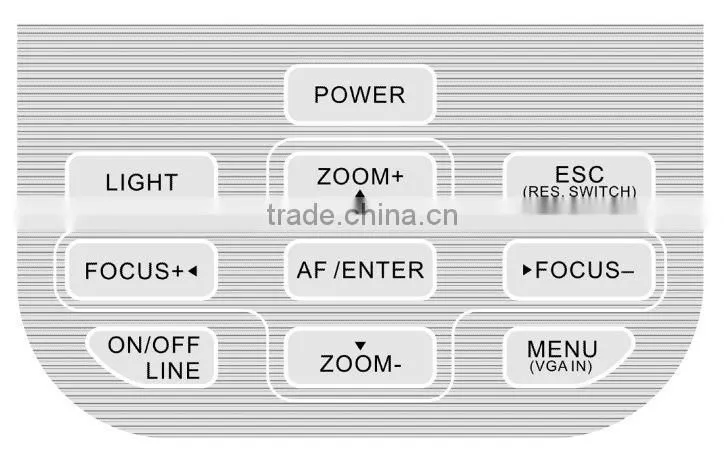

Control panel

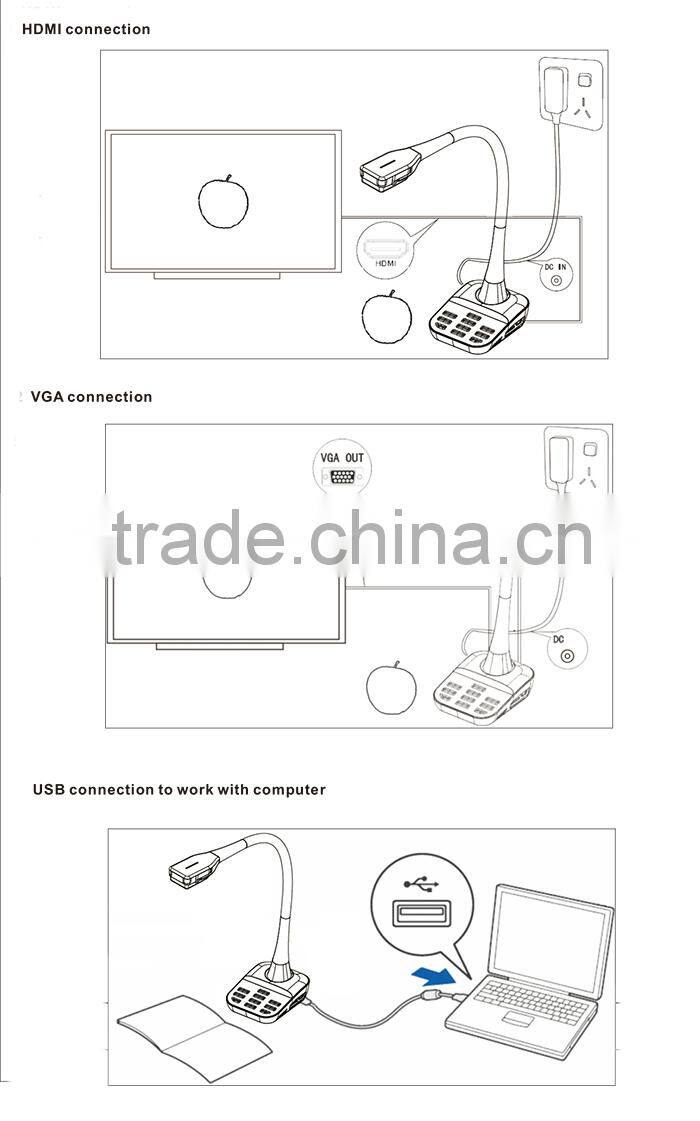

 How to connect

                                                                                                                                                                                                 Offline Software Introduction

When product be connected with VGA,HDMI,USB interface displayer,

press the menu button from control panel or remote controller, below will be pop up on monitor.

       1            2           3            4            5            6           7           8            9          10          11        12          13

1.Auto Focus           2. Zoom in     3. Zoom out   4.Rotation    5. Mirror       6.Freeze    7.Capture,

8.Video recording    9.Browse      10.Contrast    11.PIP           12.Remark   13.Setting

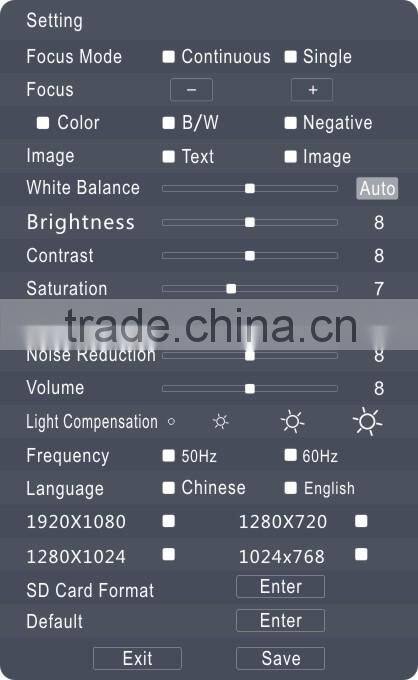

1-       Setting

2-       Focus Mode: 2 options to choose from continuous focusing or Single focusing

3-       Focus: 2 options to choose from Zoom – or Zoom +

4-       Color: 3 options to choose from color, black /white and negatives

5-       White Balance, Brightness,Contrast,Saturation,Sharpness,Noise Reduction,Volume: Those could be adjusted manually or choose Auto

6-       Light Compensation: 3 options to choose from Mild, Medium and Strong

7-       Frequency: 50 and 60 for choose

8-       Language: Chinese and English for choose

9-       Resolution: Different resolution for choose

10-   SD Card Format

11-   Default

12-   Exit and Save for choose
