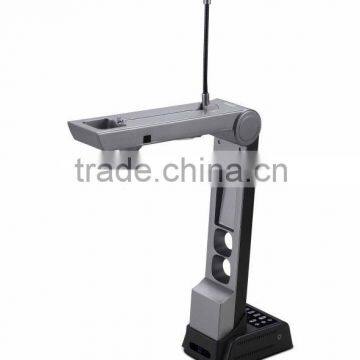

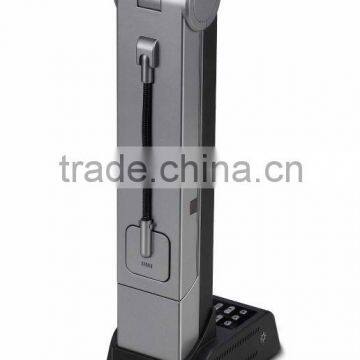

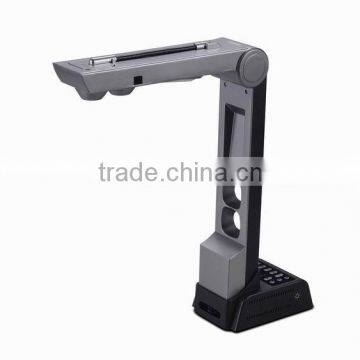

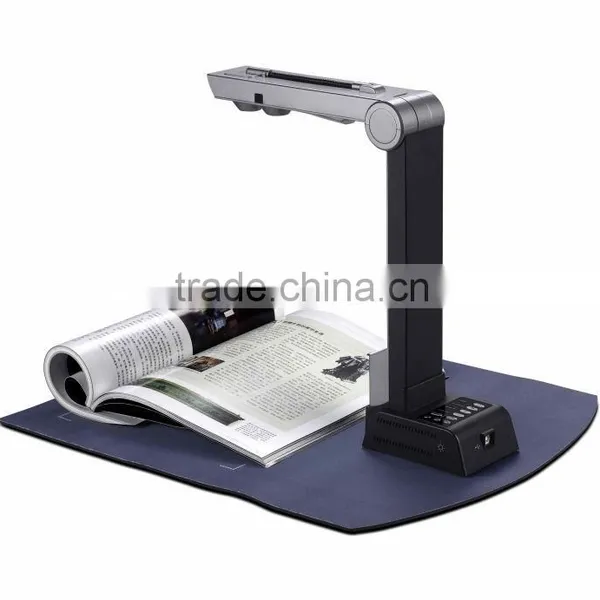

Education Visualizer, Document and 3D Object Presenter, Electronic Teaching Aids and Classroom Equipments

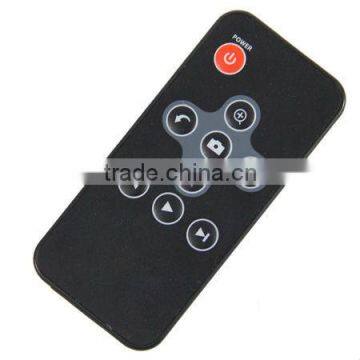

Education visualiser with 5 mega pixels camera, USB and VGA output, remote controller, real-time demostrate document and object

Hardware Specifications:

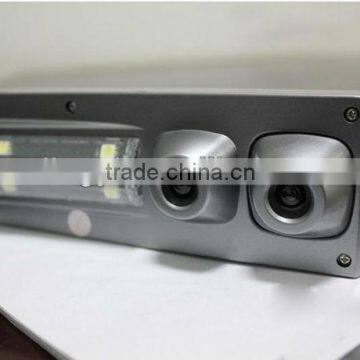

1. USB Lens: 5 mega pixels CMOS camera,
USB output reslolution: 2592x1944,1920x1080,800x600

2. VGA  lens:  2 mega pixels CMOS camera,

VGA output resolution: 1280x1024,1280x800,1024x768,800x600
3. USB lens works when connected to computer or laptop,  VGA lens when connected to projector directly

4. Interface: USB2.0 x1,VGA in x1, VGA out X1 , DC in x1, RS232 x1
5. Key buttons:  power on/off, zoom in, zoom out, rotate 180°,capture, playback
6. Touch LED light switch
7. Power supply: DC5V or USB5V
8. Product size: 312x121x81mm (folded), 312x305x81mm ( working)
9. Product weight: 1500g

Software Specifications:

1. When connected to computer through USB port, you can use software
2. Main function:  Document presentation, Object presentation, Image caputure, Video recording

Computer Requirements:

 CPU 2.3GHz  recommended
 RAM 2G recommended
 Hard Disk free space 1G

Windows XP, Windows vista, Windows 7
Mac OS 10.5 above

 Accessories:  USB cable, VGA cable, DC adaptor, Scanning mat, Software CD, User manual

 Applications:  Scanning  when connected with computer

Live  Presentation  document , 3D object

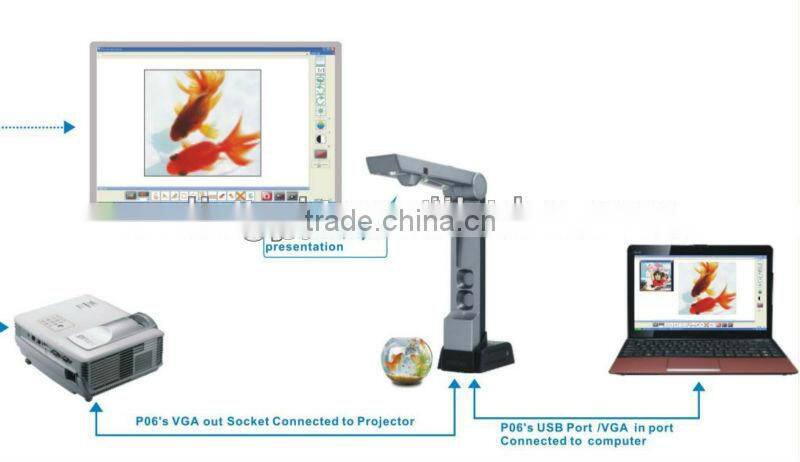

Connection guide:

Individual package: printed colorbox or whitebox, dimension: 400mm x175mm x135mm

10 units per carton,Carton size: 410x375x675mm,N.W.: 19KG,G.W.: 20KG ,
20 FT container Qty : 2540 units,
40 FT container Qty: 5080 units

Shipping method : Air express, General Airline, By Sea

  We accept OEM and ODM orders according to customer's special requirements.

 Hardware and software design, develop and supports.

 Sample lead time :  7 days

 Normal mass production time : 15days

 Price term: FOB Shenzhen or Hong Kong ,CIF destination

Warranties:  Full inspection from incoming material, production lines to packing.   Normally 1 year after sales.  If you want to have longer time warranty,  we can negotiate further.

Established in 2003, with 11 years development , now Shenzhen Digital-Leader Technology is a  Hi-tech technology enterprise, a member of China educational equipment association.

 ISO 9001:2008 AND ISO14001:2004 Verified, own product design patent, own application software copyright, own "DINGYI" and " XINGDINGYE" trademark, own 4000 square meters workshop building.

 MOQ: 100 units for standard factory package

 MOQ: 500 units for customized package

 Payment terms: 30 deposit after order confirmed,  70% balance before shipment

 Warranty:   at least one year dated from good received

 Certificates: CE/FCC/ROHS
