Portable battery powered A3/A4 document scanner , USB2.0 and HDMI

Specifications

Portable A3/A4 scanner with 5 mega pixels camera, with TF memory card,battery,LCD screen,USB2.0 and HDMI ,height adjustable

 Portable A3/A4  document scanner with 5 mega pixels camera, height adjustable, with image/video storage memory card (TF Card), built-in battery,USB2.0 and HDMI out interface,OCR software



Features:

1. Image sensor : 5.0 mega pxiels CMOS

2. I/O: USB and HDMI

3. Built-in 3.7V lithium-ion rechargable battery

4. LCD display: 2.0 inch color display screen

5. Built-in microphone

6. Memory: support mirco SD card

7. Work stand-alone or with computer,laptop

8.  Shooting area : max A3 (420mmx297mm)

9. Image Zoom:  8 x digital zoom



Hardware Specifications:
1. Image sensor: 1/3inch CMOS, 5 million pixels
2. Image resolution:2592x1944,2048x1536,1600x1200,1280x1024,1024x768,800x600,640x480
3. Capture size: Max. A3 ( 420x297mm)
4. Light source: Natural light or LED lights
5. USB2.0 interface and HDMI output interface
6. Stylish plastic case
7. Battery:  Rechargeable 3.7V, 1000mA li-ion battery
8. LCD: 2.0 inch TFT LCD
9. Memory card slot : TF card ( micro SD card,max 32GB )
10. Key buttons:  Power ON/OFF, capture, playback, up,down, pause, online /offline switch
11. Product size: 261mm(L) x 285mm (W)  x 362mm (H) - opened;
                       261mm(L) x83mm(W) x60mm(H)- folded
12- Product weight : 885g



Software Speicifications:
 1.  Main functions: Scanning, File editting, OCR,Video recording
 2.  Scan type : Capture to image
 3.  Image format: BMP/JPG/PNG/TIF
 4.  File editting: Rotation, Annotation, Crop,Brightness/Contrast/Saturation Adjustment
 5.  File convertion: PDF/RTF/DOC
 6.  OCR language: English, Chinese, Germany, French, Italian, Spanish, Polish, Turkey, Korean, etc
 7.  Video format : AVI

 System Requirements:
  1.Windows XP/Vista/7, Mac OS 10.5 above
  2. CPU  2.3GHz recommended
      RAM  1GB minimum, 2GB recommended
      1GB free hard disk space
      CD-ROM drive
      USB2.0 port



 Accessories:  USB cable, Software CD, User manual, Battery charger, Nylon carry bag

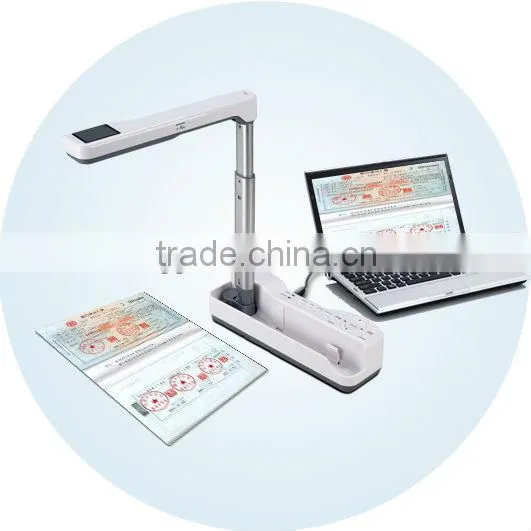

 Product pictures:

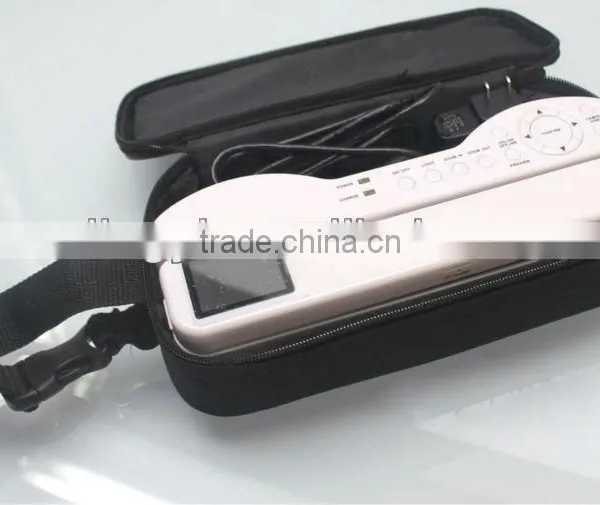

 Individual package:  portable carry bag dimension: 280*135*70mm

 Giftbox or whitebox package dimension: 400*145*120mm

 20 units per carton box

 Carton box size:  745*415*500mm

 G.W.: 28KG







  We accept OEM and ODM orders according to customer's special requirements.   Hardware and software design, develop and supports.



 Sample lead time :  7 days

 Normal mass production time : 15days

 Price term: FOB Shenzhen or Hong Kong ,CIF destination

 Shipping method : Air express, General Airline, By Sea



Warranties:  Full inspection from incoming material, production lines to packing.   Normally 1 year after sales.  If you want to have longer time warranty,  we can negotiate further.



Established in 2003, with 11 years development , not Shenzhen Digital-Leader Technology is a  Hi-tech technology enterprise, a member of China educational equipment association.



 ISO 9001:2008 AND ISO14001:2004 Verified, own product design patent, own application software copyright, own "DINGYI" and " XINGDINGYE" trademark, own 4000 square meters workshop building.





  MOQ: 500 units for customized package

 Payment terms: 30 deposit after order confirmed,  70% balance before shipment

 Warranty:   at least one year dated from good received

 Certificates: CE/FCC/ROHS
