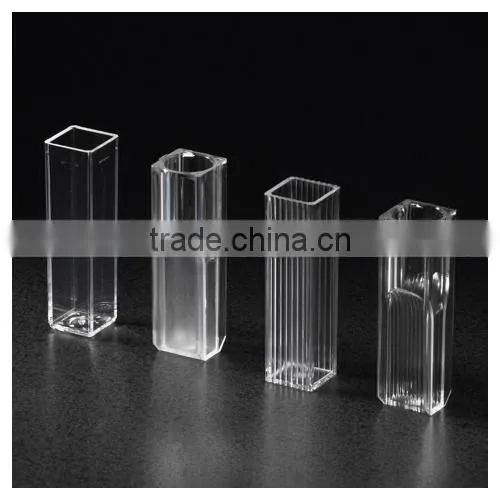

Micro Dose Cuvettes Filling and Sealing Machine

Automatic CUVETTE Typing Filling Sealing Machine

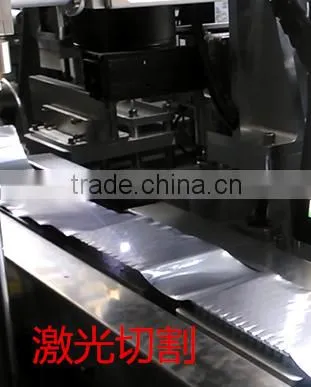

This equipment is the latest research and development of new technologymachine. Suitable for small doses of filling sealing, mainly used in medicine research, biotechnology, pharmaceutical, cosmetic, chemical and other industries.This equipment is adopt the world's most advanced micro measurement precisepump, suitable for small measuring range of filling. Micro measurement precisepump has micrometer gaugespialeadjustment, but according to fillingmaterialtochoose liquid pumporhigh viscosity pump, filling accuracy is high, the whole equipmentmeetnational GMP standard design, microcomputer PLC programming, electronic photoelectric sensor control system, ultrasonic seal cutting film.

Technical Parameters:
FillingVolume Range: 0.002ml-8ml
Filling Time:40-60 times/min.
Filling Precision:≤±0.5%
Size:1650x 1300x1460mm

Air Pressure:0.4MPa-0.6MPa/ 4bar-6bar / 58psi-87psi

Pneumatic metering pump,usehigh precisetrimming micrometerto volumetric measuring, soit can achieve high precisionfilling. (vomit quantity level 0.5 CC, errorisplus or minus 0.5%)

Features:

Ifpumpsize, only needs to replace pump head and plungerpart.

Use high precisemicrometer, can be easily changedfilling volume.

To suction velocity and spit out speed can be adjusted respectively, so can set out the most suitable spit outconditions.

There arevariousof materialfor liquid contact parts. Different liquid choose different material.

There ischeck valve and rotary valve two kinds, respectively applied for the low viscosity materials and high viscosity material.

Metering pump B series (electric type)

Metering pump electric type, B series is to use stepper motor driven

Features:

Change pumpsize, only needs to replace pump head and plunger pumppart.

By using a pulse motor to drive the metering pump driver part, load low speed can also get stability

Constant speed and digital setting function, make the reset operation become very easy

Can use general computertoinput and manage date.(special software: Windows version)

Use the computer can confirm each pump setting and action, andthroughB series to connected tomessage box.(optional spare parts)

Can use the computer for each pump settingand its action confirmation, and throughmessage(control) boxtoconnect, could be change date and confirm action on the spot, very convenient driverpart separated from the controller, more convenientto controland easier to maintain, can use the computer or external controller (PLC) to stroke setting and speed setting.

Q1.Are you a manufacturer or a trading company ?

A:

We are a professional manufacturer of Pre-packing and after-packaged machine.

Q2.Where is your factory located ? How can I visit there ?

A:

Our factory is located in Shanghai City. From Pudong airport or Hongqiao airport

 Q3.How to support me if i don't know how to use it?

A:

Free training within the warranty by tel and mail or skype. We also can dispatch our
technician to customer’s company if customer agree the air ticket and hotel.

Q4.What's the pre-sale service of your company?

A:

Professional Advice about Market, machines, processing , materials, packing can be supplied.

Q5. What's the after-sale service of your company?

A:

1. Allocation chart

2. Operation manual

3. One year warrantee, life time maintenance with cost price.

4. Free easy broken spare parts

5. First installation can be done by engineer.

6. Training workers in customer’s factory.

Q6. If machines wearing parts need changing, what should we do?

A:

We can offer the wearing parts all the time, and offer video.

Q7. What's the payment terms if we want to buy the machines?

A:

L/C, 100%T/T,T/T 30% down payment, 70% balance before delivery.
