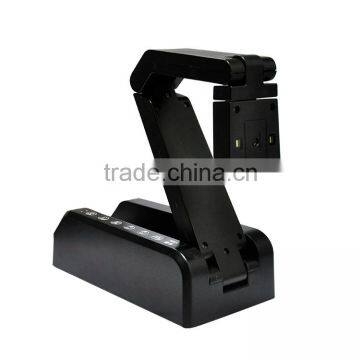

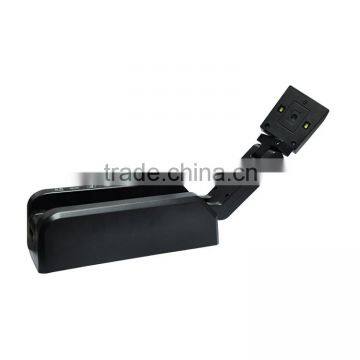

auto focus 5MP high speed CMOS sensor scanner portable visual presenter for education equipment , USB 5V powered, head rotatable 270 degrees. Frame rate can be 15fps @ 2592x1944, high speed, good quality image/video.
Other similar scanner for your reference
It integrates a flexible arm with rotating camera head to capture and display colorful, vivid images from various angles with ease. Meanwhile, the compact, portable design lets you take and place the document where you need it.The auto-focus lens effortlessly helps you get clear images while the zoom in and out feature quickly allows you to see every detail during your presentation. Use the remote to adjust optical and digital zoom, split the screen, mirror images, adjust white balance and more.Create an interactive experience full of vibrant colors with the Auto focus document camera digital visualizer .
with below features
USB+VGA output interface
Maximum Scan size A4
5MP high definition presentation
Document scanner & visual presenter of real objects
270 degree camera rotation, auto focus, 6X digital zoom, and 30X Mechanical zoom
Remote control supported
Powerful software function: image processing, OCR, document management and etc.
Digital visualizer Image

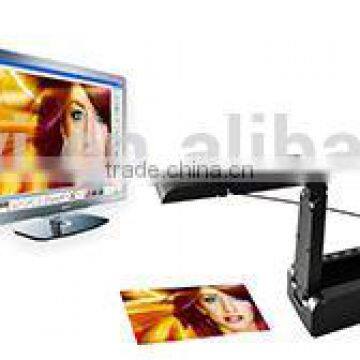

How to use the digtal visuzlier Autofocus camera: stream live images directly to your projector or to PC or Mac
Built-in LED light, automatic resolution and exposure, and a suite of other smart features
Capture or realtime display docs, textbooks, devices, 3D objects and more without taking up too much space
Bundled specific software enable for easy work.
Digital visualizer Specifications
Sensor |
5 Megapixel HD CMOS Active Pixels Digital Image Sensor (1/4 color sensor) |
Focus mode |
Auto Focus |
Image depth |
24bit |
Image Resolution and Frame rate |
2592x1944@15fps, 1920x1080@15fps, 800x600@30fps |
VGA output resolution |
800x600(default),1024x768,1280x720,1280x1024,1920x1080 |
USB output format |
MJPG, YUY2 |
Audio |
Built-in microphone |
Power Requirements |
AC adapter DC 5V, USB 5V |
Communication Interface |
USB 2.0 UVC and VGA |
Current |
Working <450mA standby <280mA |
Voltage |
5V |
System Requirements |
CPU 1.0GHz Minimum, 1.6GHz Recommended, RAM 512MB Minimum, 1G Recommended |
Scan Size |
A4(210mm x297mm), or other smaller sizes |
Key buttons |
Light, Zoom in, Zoom out, Image freeze, Focus, Power on/off |
Lighting |
LED light (lifespan 3000 hours ) |
Remote control |
Yes |
Height and Weight |
1 KG |
Dimensions |
215mm x112mm x300mm (opened);215mm x112mmx 65mm(folded) |
Connections Required |
1 USB 2.0 Cable to the computer |
Warranty |
1 year |
Accessories |
User manual+USB cable+software CD+roll-up Mat+Remote controller+AC adaptor+VGA cable |
Certifications |
FCC, CE, RoHS |
Individual Color box: 350*155*135mm
10pcs per carton box
Carton box size: 800*365*295mm
N.W.: 20kg
G.W.: 21kg
OEM order ,ODM order are welcome. We offer one-stop service from developing, designing, modifing hardware and software spefications according to customer 's request
Warranty : Full inspection from incoming material, production lines to packing. Normally 1 year after sales. The warranty time can be extended if add relative charge.
we are an ISO9001 2008 & ISO14001 2004 certificated manufacturer,specialized in portable office equipment and visual Educational device, product are portable high speed scanner, foldable document camera scanner apply for office and visual presenter,visualizer,all in one multi-media machine apply for classroom. All product have been CE, FCC, RoHS certificated,we have our own brand, and sell products to many oversea countries. Welcome you contact Mary Liu for more product details.Feel free to contact as below
Mary Liu
Mobile phone :0086-159 8673 1586
Sample lead time : 5 days
Normal mass production time : 15days
Price term: FOB Shenzhen or Hong Kong ,CIF destination
Shipping method : Air express, General Airline, By Sea
Certificates: CE/FCC/ROHS
