Visualizer system all in one computer, 5MP visual presenter, speaker, central controller
Brief Introduction
All in one visualizer system is a combination of computer, central controller, speaker, digital visualizer, wireless keyboard and mouse. It is wall-mounted beside the whiteboard or touchable screen.Just following the instruction to easily control the speaker, computer, projector, visualizer by pressing the keys of the central controller panel.
Visualizer system features
1.Wall-mounted metal structure
2.Highly integrated and multi-functional
3.Built-in PC, central controller, high resolution visualizer, hi-fi speaker, wireless keyboard and mouse, accessories with multi-functional wireless microphone with paging up and down function, laser pointer
4.Compact design and space saving
5.Easy installation and maintenance
Match solution
Parter with Optical interactive whiteboard
Parter with Magnetic interactive whiteboard
Parter with Infrared interactive whiteboard
Parter with LED TV interactive whiteboard
All in one PC multimedia teaching machine application field: School teaching, Training Institutions, Business Conference
Specification for all in one visualizer system
Computer (For option) | |
Main board |
INTEL CPU I3 / CPU I5 (Optional) |
Power Supply |
GW-MATX220 |
Hard Disk |
Seagate 500G |
RAM |
4G |
CD ROM |
JianXin DVD (Optional) |
Mouse, Keyboard |
Accessories |
Visualizer | |
Resolution |
2592*1944 |
Picture Scanning Format |
JPF TIFF BMP PNG |
Document Output Format |
PDF DOC TXT |
Video Recording Format |
AVI |
Light Compensation |
Support |
Microphone |
Support or Nonsupport (Optional) |
Picture Management &Edit |
Brightness, Exposure, Sharpness, Color, Saturation, Definition, Grayness, Tone, Contrast, White Balance |
Expanding& Folding Dimensions |
Working Size: 337*245*128mm |
Folded Size:337*100*128mm | |
Image Sensor |
CMOS |
Image Color |
24Byte |
Audio | |
Audio Type |
Computer Audio |
Audio System |
2.1track |
Power Supply Mode |
Active |
Adjust Method |
Button keys |
Speaker output power |
25W (Dual mono ) |
SNR |
89dB |
Antimagnetic function |
Support |
Power Consumption |
20W |
Central controller | |
USB port |
4 |
VGA Input Channel(s) |
1 |
VGA Output Channel(s) |
2 ( one VGA output can be change to HDMI for optional) |
Notebook input |
1 |
Microphone input |
1 |
AC input/output |
1 |
Audio input/ output |
1 |
RS-232 |
1 |
COM port |
1 |
SD card port |
1 |
RJ45 port |
1 |
Antenna port |
1 |
Multi-function wireless microphone(optional) |
2.4G wireless transmission at 10M, 8hous standby time,support PPT paging up and down, Laser pointer, volume adjustment |
VGA Input Signal Resolution |
1280×1024 |
Packaging | |
Product Size |
1250*320*75mm |
Packing Size |
1340*405*185mm |
Weight |
N.W 18kg |
G.W 22.8kg | |
Qty/Container |
320pcs/20' 640pcs/40' 695pcs/40'HQ |
Trade Terms | |
Price Term |
Ex-work |
Payment Term |
T/T 30% deposit in advance, 70% balance before shipping |
Delivery Time |
5-7 working days after payment received for 100 sets |
Warranty |
1 year |
Remarks | |
The computer configurations can be customized and prices will be different accordingly. | |

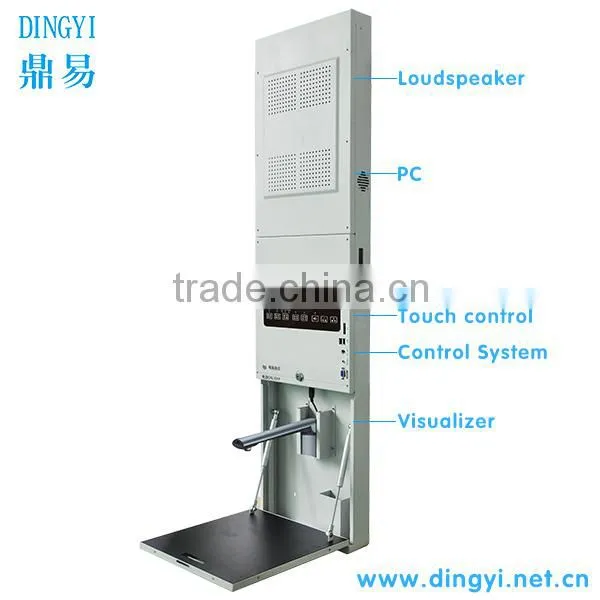

All in one visualizer system product show
machine top side interface

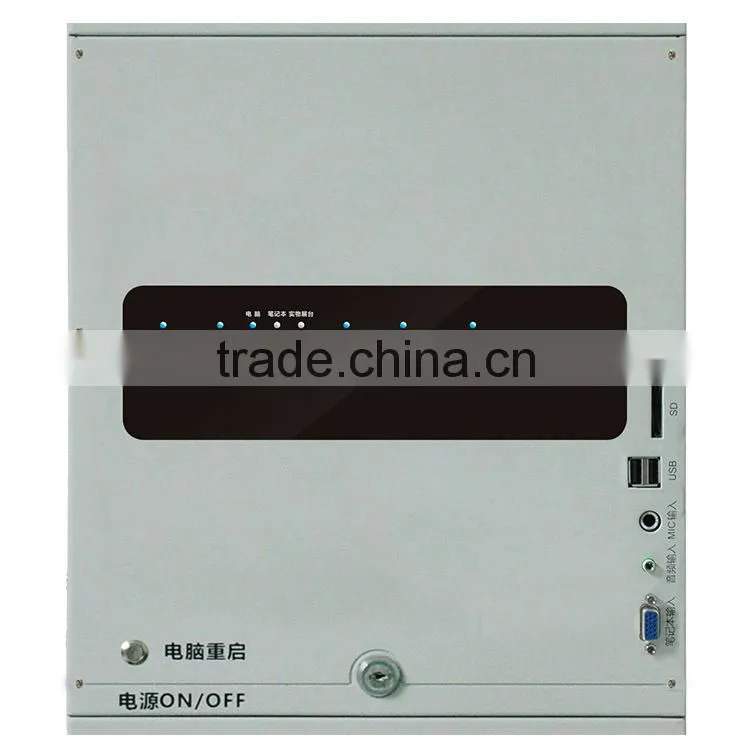

Front board

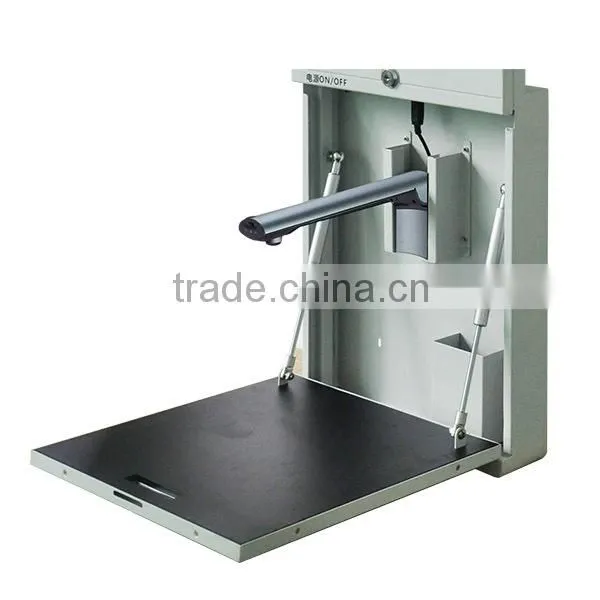

Visualizer
