Product Detail

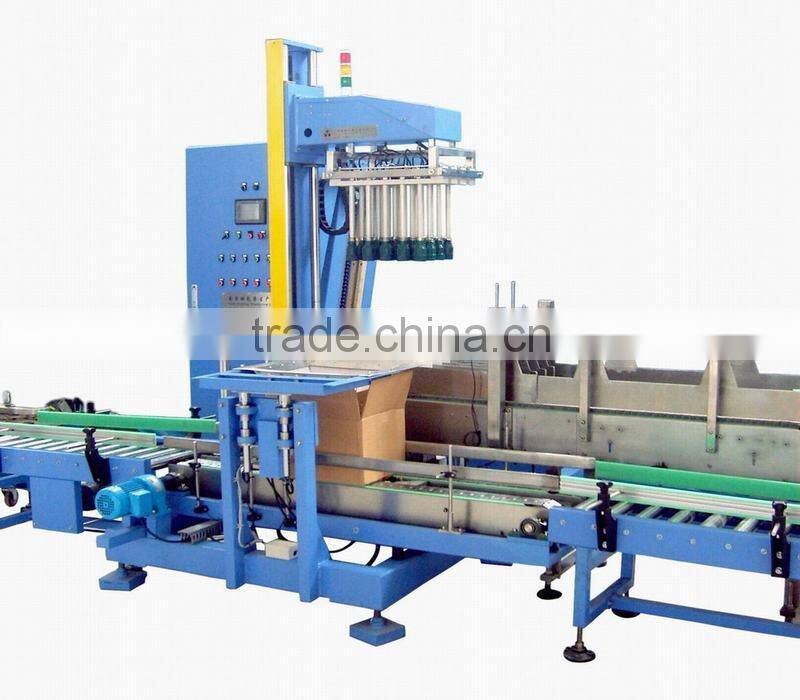

Auto Carton Packaging Machine (SF-01ZX)
The automatic carton packaging machine clamp the bottle by holder(with rubber to avoid damaging the bottle), and then put the bottles into open carton. When the bottle holder lifts, the carton with bottle will be sent to carton sealing machine. The machines controlled by PLC and Touch Screen. The machine will alarm and stop when it is lack of bottles. This packing line is very easy to operate, manage, and reduce the labors and work intensity, it is necessary for automatic production line.
Feature:
1. It can arrange the products according to the carton filling requirement.
2. It has novelty design and compact construction.
3. It is widely used in various industry, such as plastic flat bottles, irregular bottles, round bottles, columned and oval-shaped bottle, square cans and paper cans.
4. It is controlled by the computer and easy to operate, the quality is very stable.
Specification:
ModelSF-01ZX
Carton Size(L× W× H): 200~500× 150~400× 100~450mm
Table Height: 750± 50mm
Working Speed: 8~12ctns/min. 16~24ctns/min.
Air Resource: 6~7kg/cm2
Power Supply: 3.5kw 220V/380V 50Hz
Machine Size(L× W× H):1500× 2000× 2300mm
Weight: 1200kg

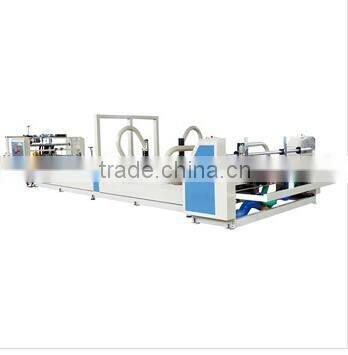

Carton Folding and Gluing Machine QF-2400
Carton folding and gluing machine
Automatic carton folding and gluing machine consists of three sections: Vacuum feeding section, gluing and folding section, counter and stacker section.
All motors except frequency conversion motor adopt Taiwan Chengbond motor, Frequency conversion motor with quality inverter adjust speed. PLC and Touch screen control system for easy operation and running stable. The maximum speed is 130meters/min, average speed is 100 meters/min. Energy conservation and high speed, saving labor cost.
Main structure of machine:
Feeding Section
Vacuum suction feeding to feed wraping paperboard easily
Quality electromagnetic clutch and brake adopted, feeding section controlled independently, operation easily.
Stainless steel glue wheel adopted, long life and saving glue cost.
Second creasing struction can impress again the paperboard which was not creased well
Gluing and Folding Section
Simpless structure and high reliability, glue quantity adjustable, cleaning easily
Creaser wheel adjustable, suit for 2-8mm thick paperboard
Imported quality rubber belt adopted, automatic folding
With paperboard rectify device and creasing rectify device
Counter and Stacker Section
Stacking and counting are simple and reliable
Digital control, operation easily and reliable. No-stop put in dta and automatic counting
With rectification function.
Paperboard counting and put out by pneumatic, stable and quickly.
Technical specifications
Model |
2400 |
2800 |
Max. Cardboard (mm) |
900*2200 |
1200*2600 |
Mini. Cardboard (mm) |
300*900 |
300*900 |
Dimensions (mm) |
L11000 * W3000 * H1600 |
L12500 * W3400 * H1600 |
Total weight |
6000kg |
7000kg |
Power Required |
11.5kw 380V 3phase 50HZ |
14.5kw 380V 3phase 50HZ |
Paperboard thickness |
3 or 5 layer paperboard |
3 or 5 layer paperboard |
Control |
PLC & TOUCH SCREEN |
PLC & TOUCH SCREEN |

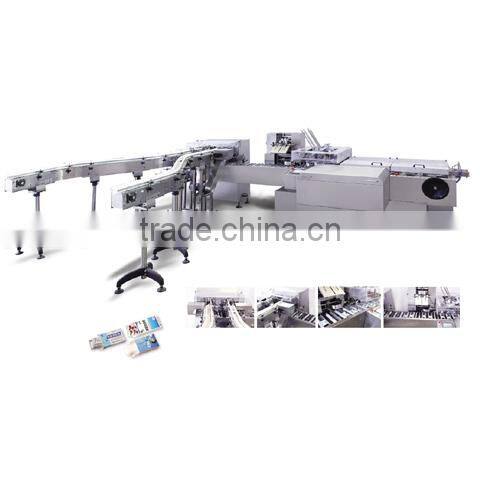

Multifunctional Automatic Cartoning Machine MWZH-180
Automatic folding(1~4 folding) and conveying of manual leaflet, automatic matenal categorizing and feeding; automatic paper carton apreading; automatic manual leaflet and material carton packaging, synchronous(3-row) batch number printing, automatic paper carton sealing, automatic waster eliminating.
Performance and characteristics:
1. Continuous mechanical feeding materials and carton packing, and working of each functional part is in harmony, stable and reliable.
2. When materials do not reach correct position, the pusher has an alarm and halt facility for that, in order to ensure good quality of carton packaging and safety in operation effectively.
3. Constantly moving carton-opening and pulling carton-opening mechanism are more stable and reliable.
4. Servo material departing and feeding mechanism is stable and reliable.
5. Halt facility for air pressure and vacuum protection ,when caster opened, the halt facility will be checked automatically for operating safety of the machine.
6. It is easy, convenient and quick to change and adjust product size by hand wheel.
7. Variable frequency speed regulation, automatic PLC control, opera-ting on touch screen, words and numbers display, easy to operate, coefficient run stable..
8. Overload protection for principal driving, indication of failure diagno-sis, and automatic halt of failure.
Main Technical Parameters:
Max encasing speed :180box/min
BoxQuality Requirement: 250-350g/m2
Dimension Range (L×W×H): (78-150) ×(33-70) ×(15-60)mm
LeafletQuality Requirement :50-70g/m2
Folded Leaflet Specification(1-4 Fold): (130-160)X(100-130)mm
Air Consumption :>0.3m3/min 0.6mpa
Motor Power :1.5kw 380V 50HZ
Machine Dimension (L×W×H) :4300x1440x1600mm
Machine Net Weight :1500kg
Our Factory:
Motech. has been providing world-class quality, service, and support since 1997. In that time, we have completed more than 25,000 custom projects for customers worldwide. Our customers, which range from start-up operations to Fortune 500 multinational corporations, can be found a broad range of industries, including:
•Medical
•Pharmaceutical
•Energy
•Food Processing
•Government
•Aerospace
•Electronics/Semiconductor
•Telecommunications/Fiber Optics
•Packaging/Material Handling
•General Manufacturing
Our machine combine a tightly crafted and functional design with optimum ease of operation and a long life span. Installation is just a matter of “pack”, and smart design ensure that hygiene standards and maintained at all times.
SME has 3 manufacturing sites distributed in China. With its own sales office in Shanghai, supported by some 20 staff and dealers worldwide, its e-business marketplace and global distribution system, SME is always close to its customers for the supply of both products and services.
Our brands are the cornerstone of that investment and are our commitment to each customer. Offering some of the world’s best known and top-performing brands in electronics, telecommunications, automotive and electrical, SME stands as the world’s premier provider of circuit protection.
Our Clients Visiting us
Our Services We provide:
1. Best product quality and competitive price
2. On time delivery and the shortest delivery time
3.One year warranty: If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery.
4. OEM and customized service, products could be customed as your requirements.
5. User manuals will go with relative machines.
We assure:
1. All products will be checked before delivery
2.Compensation: If any unqualified product is found, we'll pay the compensation or send new qualified products to customers
3.Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.
4.Operation Guidance: If you have any problem with operation, please feel free to contact us
Matters not mentioned here could be discussed.
