Fast Automatic Carton Sealer 15 cartons per minute
- 500 Piece / Pieces per Month
- SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal
- Without electricity waste tire doubling and tripling machine scrap tyre packing unpacking machine
- MK60S Semi Automatic Strapping Machine
- Mastek Strapping Head
- MK900 Fully Automatic Strapping & Wrapping All In One Machine
- Chocolate Candy Foil Folding Wrapping Machine
- chicken/bouillon cube Wrapping machinery /cube packaging machinery
Product Details
Condition: | New | Application: | Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles | Packaging Type: | Bags, Barrel, Belt, Bottles, Cans, Capsule, Cartons, Case, Film, Foil, Pouch, Stand-up Pouch |
Packaging Material: | Glass, Metal, Paper, Plastic, Wood | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 380V 220V 50/60HZ | Power: | 15KW | Place of Origin: | Shanghai, China |
Brand Name: | MOTECH | Model Number: | CS5050 | Certification: | ISO |
After-sales Service Provided: | Overseas third-party support available |
Product Description
Product Detail

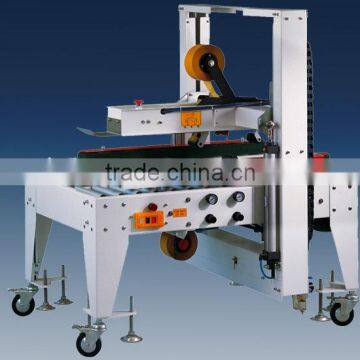

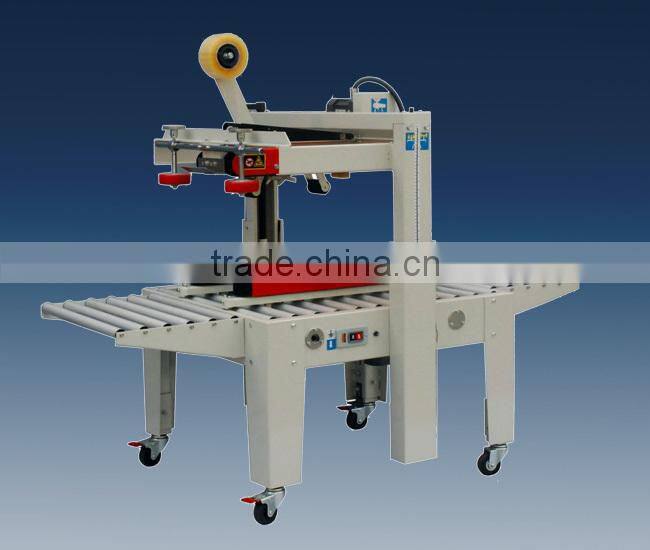

Automatic Carton Sealer (CS5050AS)
The Automatic Carton Sealer is one kind of carton sealing equipments, With advanced pneumatic adjusting system and bottom-side driving system, Used for sealing bottoms and tops of cartons automatically; It can seal different size of cartons at one time without stop, and sealing speed can reaches up to 15 cartons per minute. It is used widely for packing all sorts of productions with papery boxboards.
Application(Automatic Carton Sealer):
It applies to packing all sorts of productions with papery boxboards.
Technical Characters of Automatic Carton Sealer:
1. It can adjust width and height size of the machine to adapt to a variety sizes of cartons automatically.
2. Imported pneumatic and electric components ensure trouble-free operation for a long time.
3. Both sides of the belt driven, High speed and smoothly.
4. Install large casters for easy mobility, Eight supporter ensure the machine have enhanced stability.
5. Easy operation and simple maintenance.
Technical Specification(Automatic Carton Sealer):
Model CS5050AS
Voltage 220V/50Hz or 380V/50 Hz
Powe 240W
Packing Speed 12-15 cartons/min
Adhesive Tape Width 48-75mm
Table Height 580-780mm
Carton Length 150-∞ Mm
Carton Width 150-500mm
Carton Height 140-500mm
Air Pressure(MPa) 0.6-0.8Mpa
Weight 160kg
Machine Size 1170× 900× 1350mm

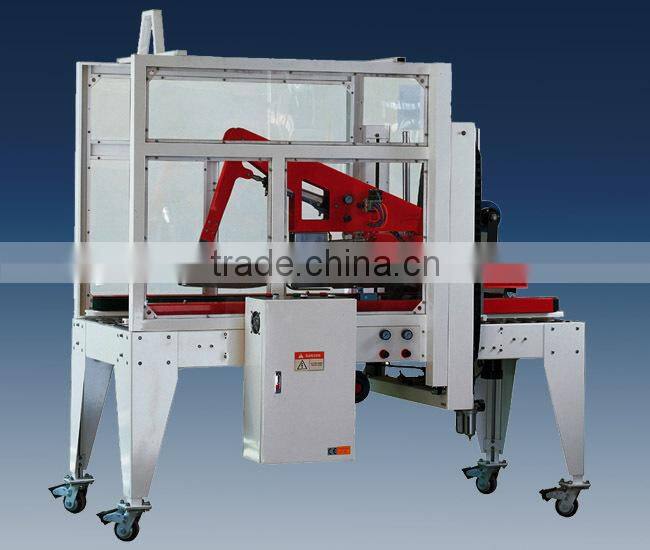

Semi-Auto Flaps Folding Carton Sealer CS5050f
The Semi-automatic Flaps Folding Carton Sealer is a kind of flow-line equipments, With advanced pneumatic adjusting system and belt driving system, Using for folding tops flaps, sealing tops and bottoms of cartons automatically; It can seal different size of cartons at one time without stop. It is used widely for packing all sorts of productions with papery boxboards.
Application(Semi-automatic Flaps Folding Carton Sealer):
It applies to packing all sorts of productions with papery boxboards.
Technical Characters of Semi-automatic Flaps Folding Carton Sealer:
1. It can adjust width and height size of the machine to adapt to a variety sizes of cartons automatically.
2. Imported pneumatic and electric components ensure trouble-free operation for a long time.
3. Both sides of the belt driven, High speed and smoothly.
4. Install large casters for easy mobility.
5. Easy operation and simple maintenance.
6. Automatic alarm and closing down system when faults occur.
Technical Specification(Semi-automatic Flaps Folding Carton Sealer):
Model:CS5050F
Voltage: 220V/50Hz or 380V/50 Hz
Power:240W
Packing Speed:12-15cartons/min
Adhesive Tape Width:48-75mm
Table Height:580-780mm
Carton Length: 200-500mm
Carton Width:150-500mm
Carton Height:150-500mm
Air Pressure(MPa):0.6-0.8Mpa
Weight: 230kg
Machine Size:1700× 880× 1450mm

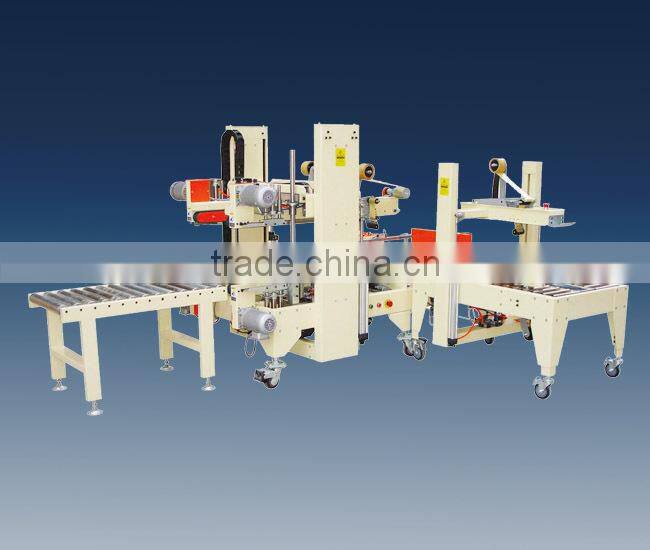

Automatic Corner and Side Type Carton Sealer (CS5050AZ)
Automatic corner and side type carton sealer is a high standards of carton packaging equipments, With advanced pneumatic adjusting system and belt driving system, Using for sealing corner and side of cartons automatically; It can seal different size of cartons at one time without stop, and sealing speed can reaches up to 15 cartons per minute. It is used widely for packing all sorts of productions with papery boxboards.
Application(Automatic corner and side type carton sealer):
It applies to packing all sorts of productions with papery boxboards.
Technical Characters of Automatic corner and side type carton sealer:
1. It can adjust width and height size of the machine to adapt to a variety sizes of cartons automatically.
2. Imported pneumatic and electric components ensure trouble-free operation for a long time.
3. Tops and bottoms of the belt driven, High speed and smoothly.
4. Install large casters for easy mobility.
5. Easy operation and simple maintenance.
6. Automatic alarm and closing down system when faults occur.
Technical Specification(Automatic corner and side type carton sealer):
Model: CS5050AZ
Voltage: 220V/50Hz or 380V/50 Hz
Power: 480W
Packing Speed: 4-6 cartons/min
Adhesive Tape Width; 48-75mm
Table Height: 600± 50mm
Carton Length: 320-500mm
Carton Width: 200-500mm
Carton Height: 180-500mm
Air Pressure(MPa): 0.6-0.8Mpa
Weight: 460kg
Machine Size :2100× 1200× 1580mm
Our Factory:
Motech. has been providing world-class quality, service, and support since 1997. In that time, we have completed more than 25,000 custom projects for customers worldwide. Our customers, which range from start-up operations to Fortune 500 multinational corporations, can be found a broad range of industries, including:
•Medical
•Pharmaceutical
•Energy
•Food Processing
•Government
•Aerospace
•Electronics/Semiconductor
•Telecommunications/Fiber Optics
•Packaging/Material Handling
•General Manufacturing
Our machine combine a tightly crafted and functional design with optimum ease of operation and a long life span. Installation is just a matter of “pack”, and smart design ensure that hygiene standards and maintained at all times.
SME has 3 manufacturing sites distributed in China. With its own sales office in Shanghai, supported by some 20 staff and dealers worldwide, its e-business marketplace and global distribution system, SME is always close to its customers for the supply of both products and services.
Our brands are the cornerstone of that investment and are our commitment to each customer. Offering some of the world’s best known and top-performing brands in electronics, telecommunications, automotive and electrical, SME stands as the world’s premier provider of circuit protection.
Our Clients Visiting us
Our Services We provide:
1. Best product quality and competitive price
2. On time delivery and the shortest delivery time
3.One year warranty: If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery.
4. OEM and customized service, products could be customed as your requirements.
5. User manuals will go with relative machines.
We assure:
1. All products will be checked before delivery
2.Compensation: If any unqualified product is found, we'll pay the compensation or send new qualified products to customers
3.Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.
4.Operation Guidance: If you have any problem with operation, please feel free to contact us
Matters not mentioned here could be discussed.
Our Clients
Q1.Are you a manufacturer or a trading company ?
A:We are a professional manufacturer of Pre-packing and after-packaged machine.
Q2.Where is your factory located ? How can I visit there ?
A:Our factory is located in Shanghai City. From Pudong airport or Hongqiao airport
Q3.How to support me if i don't know how to use it?
A:Free training within the warranty by tel and mail or skype. We also can dispatch our
technician to customer’s company if customer agree the air ticket and hotel.
Q4.What's the pre-sale service of your company?
A:Professional Advice about Market, machines, processing , materials, packing can be supplied.
Q5. What's the after-sale service of your company?
A:
1. Allocation chart
2. Operation manual
3. One year warrantee, life time maintenance with cost price.
4. Free easy broken spare parts
5. First installation can be done by engineer.
6. Training workers in customer’s factory.
Q6. If machines wearing parts need changing, what should we do?
A:We can offer the wearing parts all the time, and offer video.
Q7. What's the payment terms if we want to buy the machines?
A:L/C, 100%T/T,T/T 30% down payment, 70% balance before delivery.
