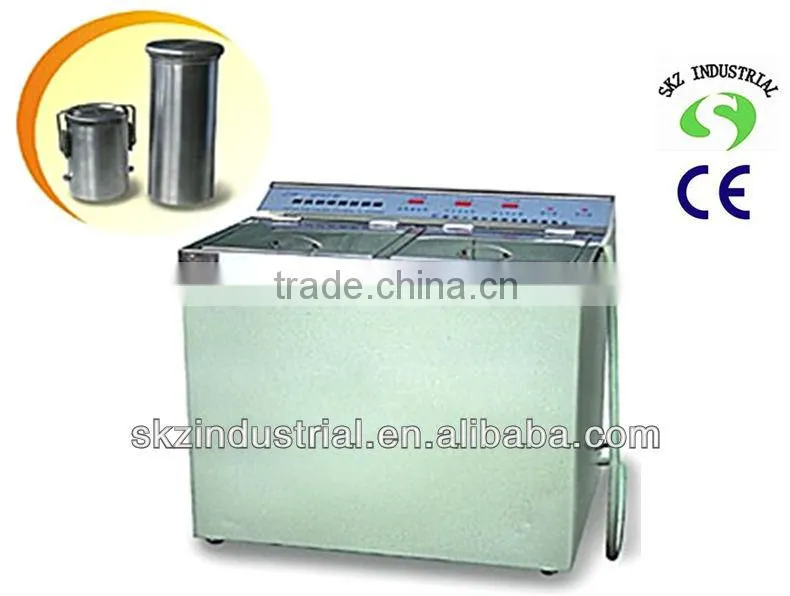

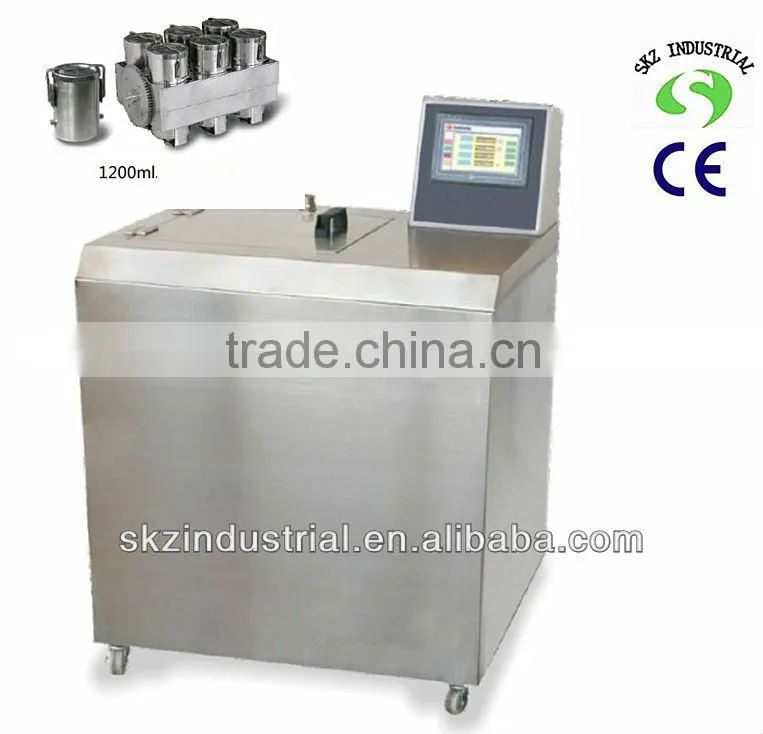

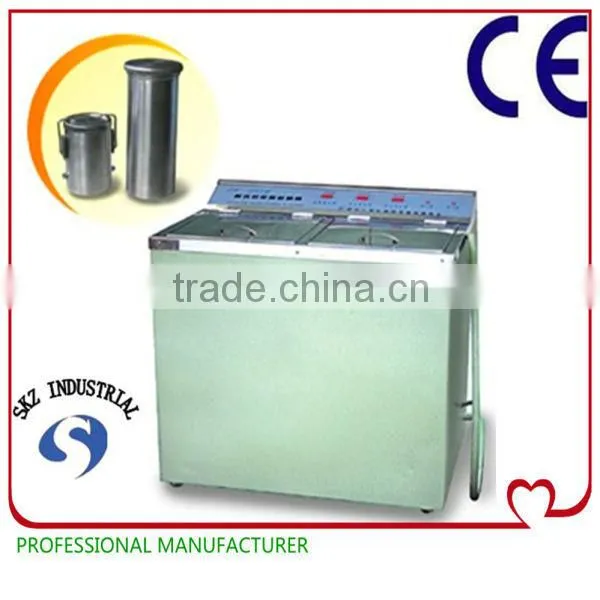

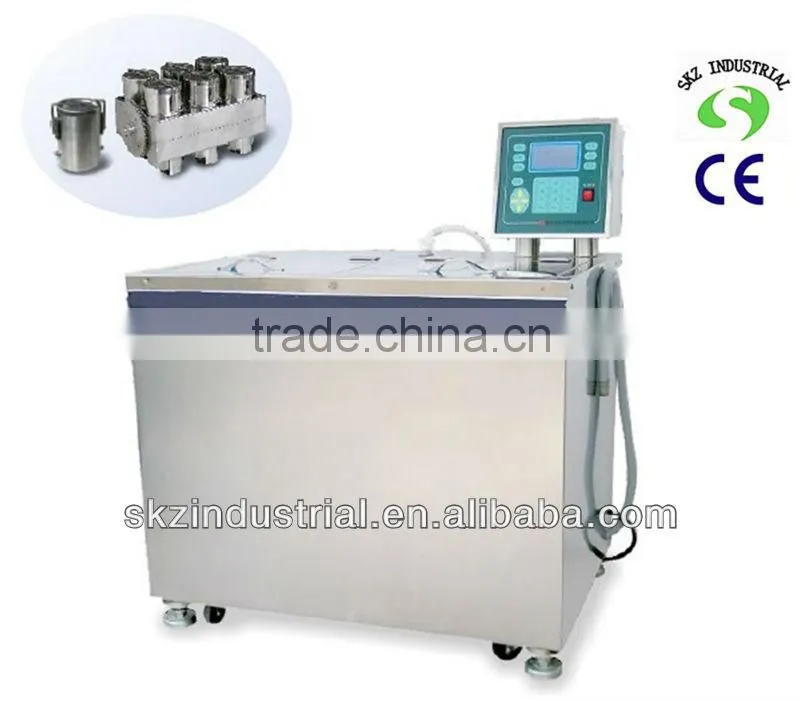

Test cups12pcs and 24pcs dye washing color fastness tester

Specifications

Test cups12pcs and 24pcs dye washing color fastness tester

Applicable RangeFor fastness determination. Apply to determine the dye washing color fastness, resistant to washing, resistant to dry cleaning and resistant to shrink of cotton, wool, silk jute and chemical fiber textiles. ISO105-X12, ISO105-D02.

Relevant StandardsGB/T3921/1/2/3/4/5 ISO105C01/C02/03/04/05/C06/08 AATCC61/1A/2A/3A/4A/5A JIS L0860/0844 BS1006 etc.

Test mode:

To put specimen of drying articles , testing liquid steel ball into testing cup ,running according to specified temperature ,time, when washing, drying, comparing with grey scale thus can appraise specimen washing firmness

Instrument characteristics

1. SSR control heating, digital temperature sensor detection, PID regulator function

2.Direct use of gear, smooth and reliable transmission, convenient replacement of test cup 3.Electronic touching switch, no mechanical contacts, long usage life, high reliability, highly dust proofed, waterproof panel, water splashing on the panel does not have any impact on the circuit

4. Equipped with a preheating chamber.(working space on the left side, a preheating chamber on the right)

Technical parameters

1. Test cup volume: 550ml (A type), 550ml &1200mm (B type)

2. Number of test cup: 12pcs (A type), 24pcs(B type)

3. Centrifugal distance: Distance between center of rotation and test cup bottom:45mm

4. Rotation speed: 40±2r/min

5. Time control: 0-99.9min±5s

6. Temperature control: Interior temperature:~99°C±2°C

7. Heating power: 4.5 kW +3 kW

8. Power source: AC380V  50Hz 8kW

9. External dimension: 935×690×910mm

10. Weight: 165kg

Instrument configuration

1, Host:                                             1unit

2, Rotating frame                               1pc

3, Steel ball spoon                             1pc

4 Test cup                                         12pcs/24pcs (B type)

5, (100ml) measure cup                      1pc

6, Stainless steel balls (6mm dia.)       150pcs

7, Rubber sealing ring                         12pcs (spare parts)

8, Nylon bearing block                         2pcs (spare parts)

9, Rubber gloves                                1 pairs
