Specifications

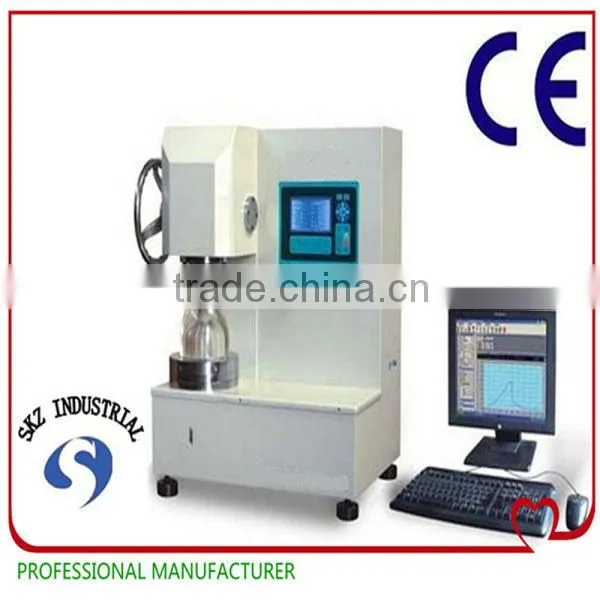

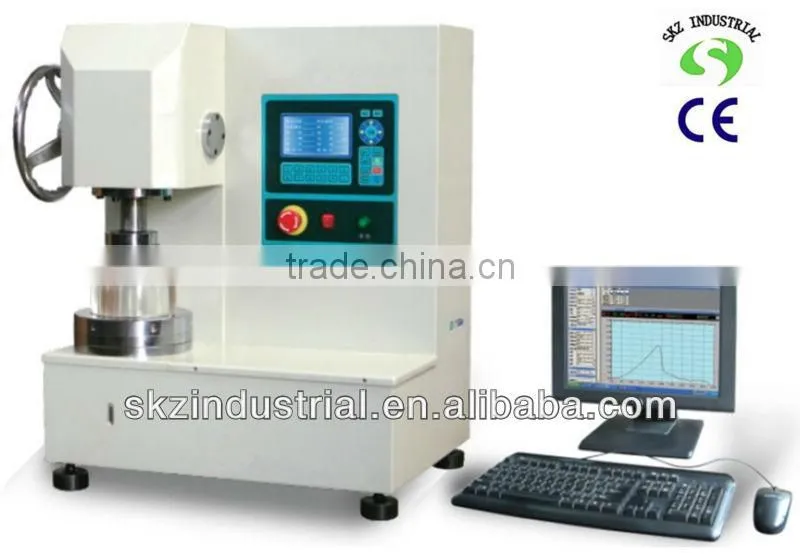

Applied in testing the bursting strength and bursting distension of fabric, non-woven, and leather.Fabric and Leather bursting strength tester
Used for testing the burst force and degree of fabrics, non-woven fabrics, leather, When under force in all directions at the same time(elastic diaphragm method).
Standards GB/T7742, FZ/T60019, ISO2960, ASTM D3786
Instrument characteristics 1.Meeting the testing area of 50cm2(Φ79.8mm) 2. Sample clamp support system 3.Supporting on-line communication
Technical parameters
1.Testing range: 0-10Mpa (B type)
2.The min. value: 0.002Mpa
3.Test area: 7.3cm2(Φ30.5mm) (B type)
4.Elastic mold-plate size: ≤2mm
5.The max. burst length: 70±0.02mm
6.The max. burst time: 99.9±0.1S
7.Pressuring speed:100 -500cm2/min
8.Output types :Printing output, displaying output,
supporting on-line communication
9.Power source:AC220V 50Hz 800W
10.External dimension:620×400×530mm
11.Weight:300kg

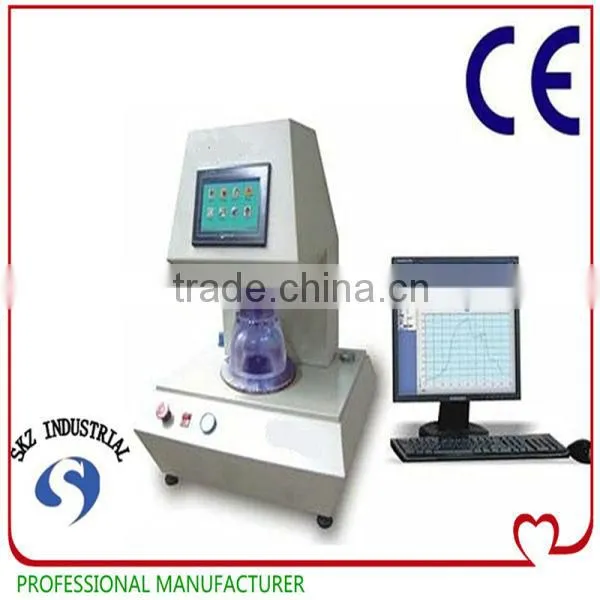

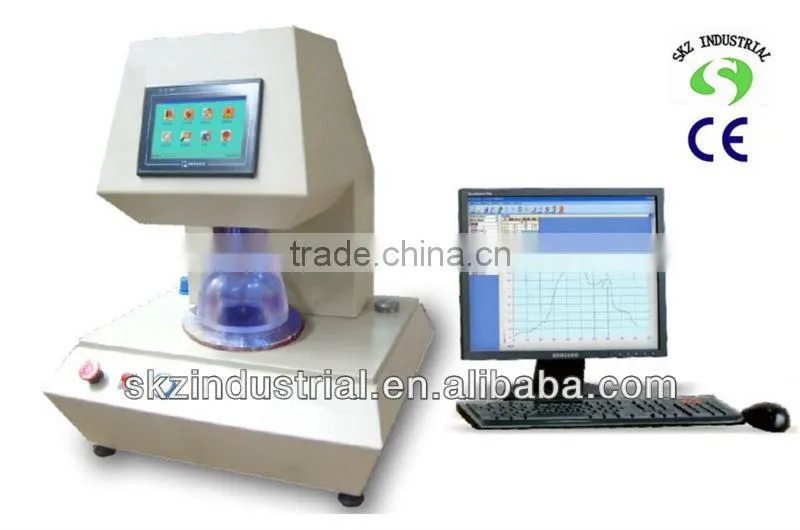

Auto Pneumatic Bursting Strength Tester
Determination pressure for a variety of fabrics, including knits, woven fabric, non-woven fabric, laminated fabric and other craft-made variety of fabrics, in standard conditions or under wet bursting strength and bursting dilation.
Standards ISO13938-2, ASTM D3786, IWS Tm29
Test principle:
Through the circular clamping the sample holder can be extended in the diaphragm, the gas pressure applied below the diaphragm, the diaphragm and the sample expansion. Rate of increase has been constant pressure until the sample burst, measured burst strength and burst dilation.
Instrument features:
1,Computer control, automatic burst test, automatic calibration, automatic data processing, experimental form of a report output.
2,Air power, high cleanliness.
3,Color touch screen interface, the English menu operation, support online communication
4,Bursting pressure of up to 1500KPa (15Bar or 200psi)
5,Burst dilation can reach 70mm
6,Test surface enhanced lighting system
7,The main specimen clamping system of aerodynamic power
8,A variety of optional test area, and easy switching
Technical parameters:
1,Test range:0-1 .5 Mpa
2,Minimum scale value: 0.002 Mpa
3,Pressure mode: direct pressure two kinds of time pressure
4,Test Accuracy: ≤ ± 0.2% F · S
5,Flexible diaphragm thickness: ≤ 2mm
6,Test area: 50cm2 (φ79.8mm)
7,Pressure rate: nonlinear sub-pressure 0.1-0.5L/min
8,Safety cover: high transparent plexiglass
9,Power: AC220V/50Hz 800W
10,Dimensions: 560 × 450 × 580mm (host L × W × H)
11,Weight: 60kg
Optional test area:
Area(cm2) |
100 |
50 |
10 |
7.3 |
Diameter(mm) |
112.8 |
79.8 |
35.7 |
30.5 |
