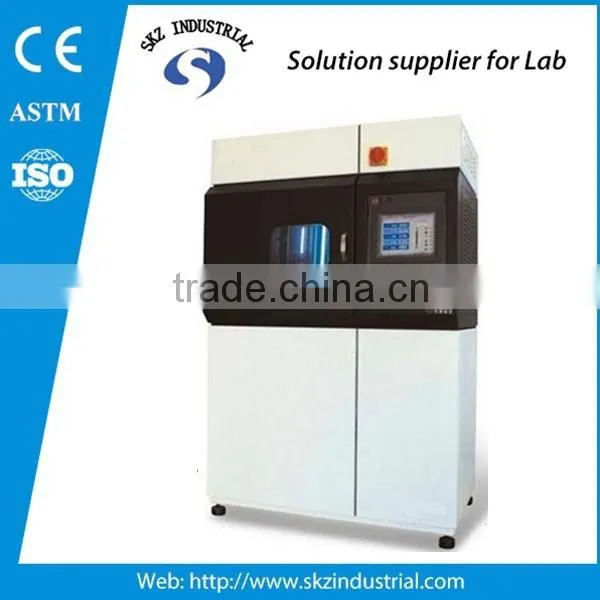

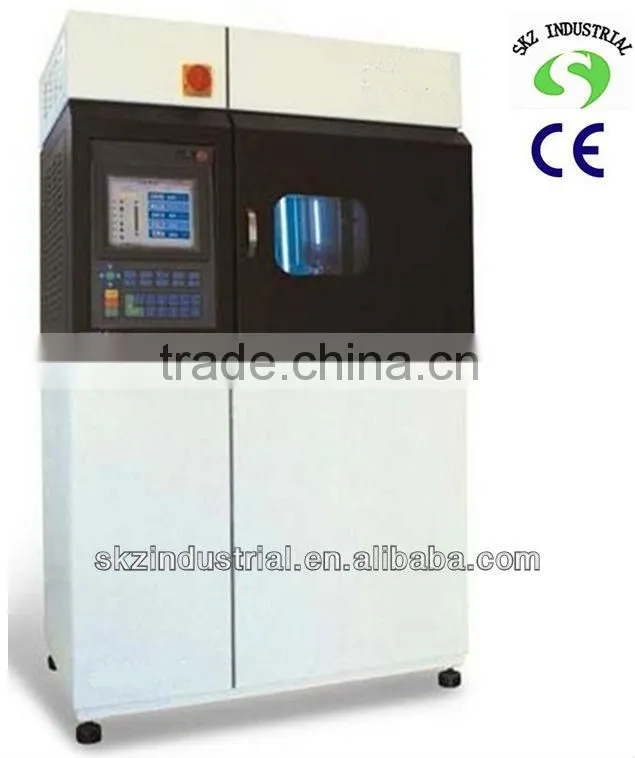

Color Fastness to Sunlight and Weather Aatcc Color Fastness Tester

color fastness to sunlight and weather aatcc color fastness tester

--Solar radiation simulation Wind cooling Tester

Used for testing the color fastness-to-light, color fastness-to-weather of various colored textiles in color fastness experiments and also for the testing of the color fastness-to-light, light aging of paint, pigment, coating, rubber, plastic, wood floor, paper and other materials.

Relevant Standards

GB/T8427(national standards technical committees) GB/T14576, GB/T15102-2006, GB/T15104-2006 GB/T8430, AATCC TM16, ISO105-B04, ISO105-B02

Instrument characteristics

1.Digital setting of light intensity , real-time monitoring, automatic adjustment, to meet the different standards for testing the stability of light source

2.The sample is tested with black plate thermometer(BPT),black plate standard thermometer(BST),irradiance detector at the same position(in equidistance) to really indicate measuring state of the sample, the tested data is transmitted synchronously by using technology of radio frequency and indicated on the color screen in the forms of digit, chart, curve, etc. after CPU process, without shutdown for observation.

3.Test and radio transmission are powered by using light conversion technology, no additional power supply is required.

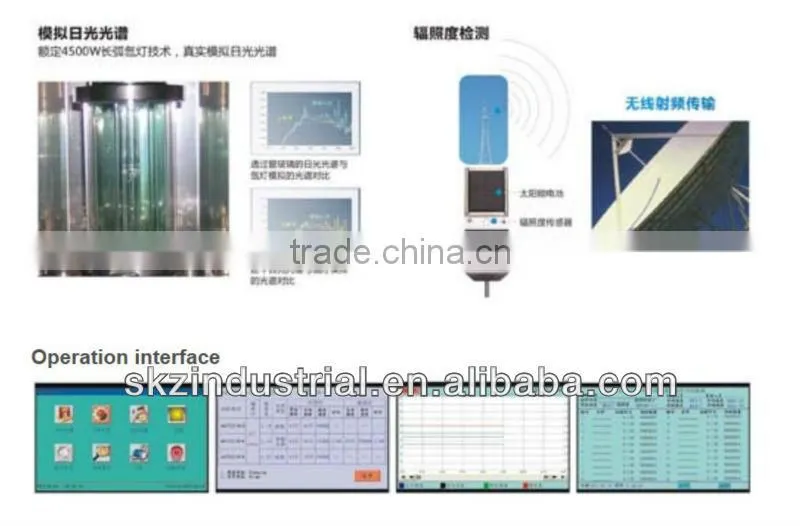

4.10.4 inch color touching screen display control and various test monitoring modules(animation, digit, chart)make operation easy, visual and clear

5.Individual timing of each sample clamp may enable different sample test in a same tester and facilitate test monitor and reduce operation cost

6.Rated 2500W long-arc xenon lamp technology adopted to real simulate sunlight spectrum

7.With industrial temperature control (refrigeration) system for smoothly and fast adjusting temperature in test chamber

8.Ultrasonic humidification and professional dehumidification system guarantee the accuracy and stability of testing humidity

9.Natural circulation system and air filter system inside reduces the environmental requirements greatly

10.One test can run for 1000 hour continuously with quality guarantee

Technical parameters

Atype:

1.Working pattern: Simulating and strengthen the effects of environmental factors on specimens, offering light, temperature, humidity, rain and other quantitative indicators

2.Light source:2500W air-freezing xenon-arc light

3.Test chamber temperature control:25~50°C:Distinguishability:0.1°C

4.Test chamber humidity control:10~95%RH, Distinguishability:0.1%

5.Testing time control:1000h

6.Irradiance:1.00~1.50W/m2/420nm;Accuracy:±0.03W/m2/420nm;Digital setting automatic compensation

7.Sample clamps: GB: 135×45mm, 10 pieces. AATCC: 100×75mm, 5 pieces both sides can clamp samples

8.Slewing speed of sample frame: revolution 5r/min, rotation 180°/rpm

9.Sample clamps time individually: ≤1000h 1

0.Black standard thermometer :40~80°C, Distinguishability:0.1°C

11.Power source: AC220V±10%, 50Hz, 5.5kW

12.External dimensions: 1000×550×1570mm

13.Weight: 220kg

 B type

Technical parameters

C type

Technical parameters
