Computer controlled Rubber curing index testing machine

Specifications

Computer control, Data display, Automatic calibration, Imported intelligent digital temperature controller.

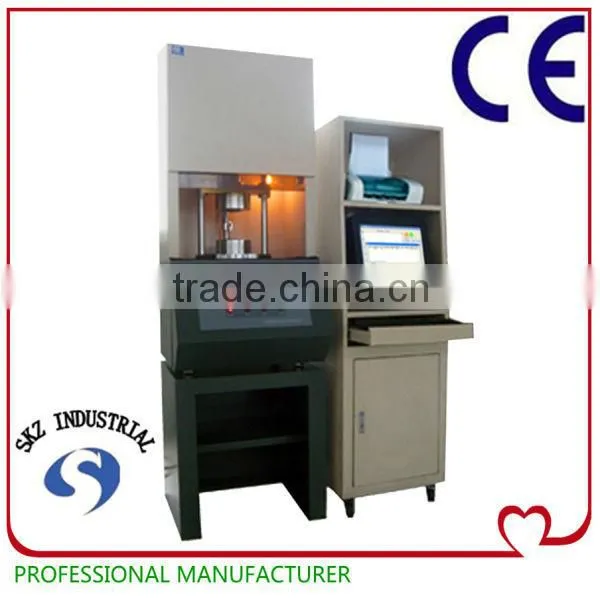

Computer controlled Rubber curing index testing machine



Used to Raw rubber or rubber compound for the determination of Viscosity, scorch and curing index



Feature of host:

1. Computer control, Data display, Automatic calibration
2. Imported intelligent digital temperature controller, easy to adjust the settings, a wide temperature range
3. Using the latest principles of a "host + computer + printer" structure

Feature of Control Software:
1. Unit of options: kgf-cm, lbf-in Nm, the dN-m, the MV;
2. Test data: contains the Mooney viscosity, scorch various data;
3. Test curve: Mooney viscosity curve, Mooney scorch curve, temperature curve of the upper and lower mold
4. Modify the time during testing
5. The test data can be saved automatically

6. A number of test data and curves can be displayed on one piece of paper, and used the mouse click to read the value of any point on the curve

7. Historical data can be added together to analysis and can be printed out.

8. The color of the curve can be modified.

9. Software platform for Windows98/Me/NT/XP other versions

Technical Specifications

1. Test data: Mooney viscosity, Mooney scorch
2. Standard: ISO289, ISO667, GB/T1232-92 HG/T3432-1989
3. Temperature measuring:
(1) The temperature measuring range: room temperature ~ 200 °C

(2). Temperature Resolution: 0.1 ° C
(3). Temperature fluctuation: ± 0.3 ° C (after feeding)
4. Temperature rise time: ≤ 10min

5. The maximum test time: Mooney: 10min;
Scorch: 120min (modification time during testing)

6. Mooney value of measuring range: 0 to 200

7. Mooney value resolution: 0.1 Mooney value

8. Mooney value measurement accuracy: ± 0.5 Mooney value

9. Calibrate accuracy: 100±0.5 Mooney value

10. Rotor speed: 2 ± 0.02r/min

11. Rotor dia. : big: 38.1±0.03mm, small: 30.48±0.03mm

12. Power supply: AC220V ± 10% 50HZ

13. Dimensions: 645mm × 580mm × 1300mm

14. Weight: 210kg



PACKING LIST



Host                                                                                          1PC
Mooney software                                                                       1PC
Calibration Poise                                                                        1UNIT
Large and small rotor                                                                  2 PER
Seal Ring                                                                                   4PCS
Canvas gloves                                                                            1PAIR
Copper screwdriver, Phillips screwdriver, slotted screwdriver         1PER
3,4,5,6 inside hexagonal wrench                                                   1UNIT
Scissors                                                                                     1PAIR
Wire brush                                                                                  1PC
