Help CenterDigital Display Electronic Bend Testing Machine
Related Products
-
Digital Display Electronic Hydrostatic Testing MachineUS$ 3,900 - 12,000MOQ: 1 Unit -
Digital Bursting TesterUS$ 2,600 - 3,500MOQ: 1 Unit
-
Paper and Board Digital Bursting Strength TesterUS$ 2,600 - 3,500MOQ: 1 Unit
-
Desktop Digital Hunt Whiteness MeterUS$ 1,000 - 2,500MOQ: 1 Unit
-
Bekk Smoothness Meter Smoothness Measurement InstrumentUS$ 2,900 - 3,500MOQ: 1 Unit
Specifications

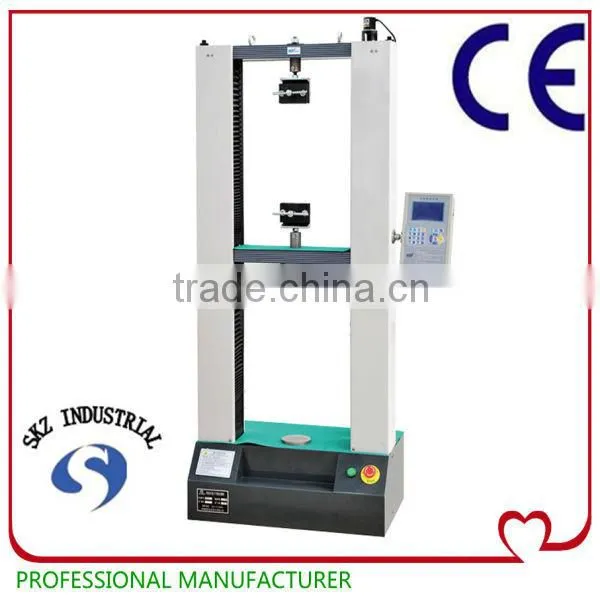

Paper Tensile Strength Tester used to test tensile strength, compression force, 180 peeling, 90 peeling of paper, plastic.Digital Display Electronic bend testing machine
-Digital Display Electronic Universal Testing Machine -Tensile Strength Tester -- is used to test the properties of metal, non-metal and composite materials. It adopts precise auto control and data acquisition system. The Max bearing force, compression force, tensile strength, compression strength, elongation, deformation can be displayed on the LCD after test. And if the machine is equipped with mini-printer, the test results can be printed
2. Advantages
1) The test force can be adjusted in a wide range, stable and effectively.
2) Display test force, test speed and displacement at real time
3) It can automatically return to the original position after test.
4) Has the functions of limit position protection, over load protection and over current protect.
3. Main technical parameter
1 |
Max test force |
500N,1KN, 2KN,3KN, 5KN |
2 |
Precision of the equipment |
1% |
3 |
Measuring range |
10N-1KN |
4 |
Relative error of indicating value |
1% |
5 |
Resolution of test force |
1/200000 |
6 |
Min reading value of deformation |
0.01mm |
7 |
Speed range |
0.2-500mm/min |
8 |
Test span |
75mm |
9 |
Stroke of crossbeam |
0-800mm |
10 |
Loading mode |
Electrically |
11 |
Control mode |
Micro-computer |
12 |
Voltage (should connect to the ground) |
440V, 3 phase |
13 |
Power |
400W |
14 |
Dimension of main machine |
410X430X1550mm |
15 |
Weight |
100kg |
4. Configuration
Main machine |
Single arm structure Precise ball screw |
1 set 2 sets |
Drive system |
|
1 set |
Control system |
Micro-computer control, LCD display |
1 set |
Load sensor |
|
1 PC |
Limit position device |
|
3 PCS |
Tensile accessories |
Corrugated fixture with width:100mm, Length:50mm |
1 set |
Pneumatically operated Clamp grips |
with width:100mm, Length:50mm |
1 set |
Diameter of compression plate |
100mm |
1 set |
