Specifications
Test the glossiness of printing ink, paper, plastic, pottery etc.

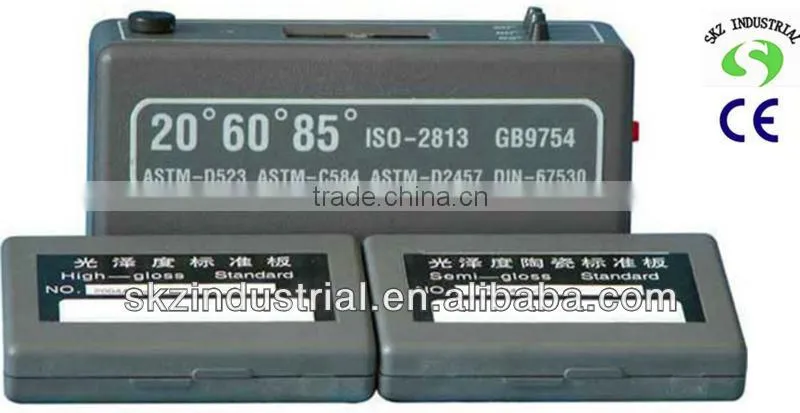

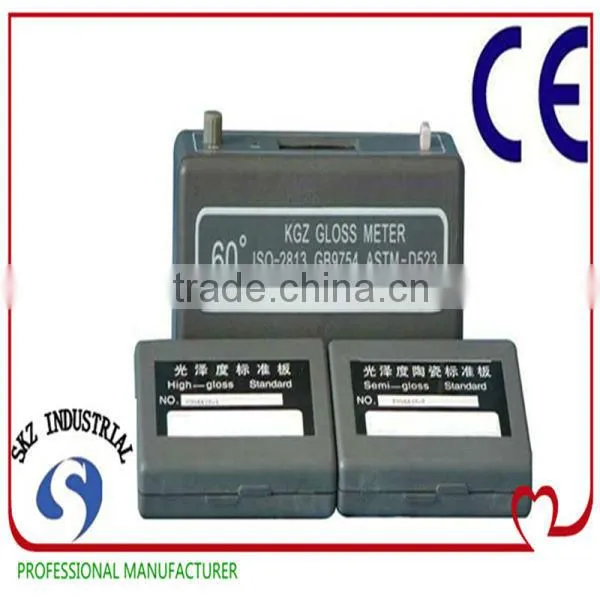

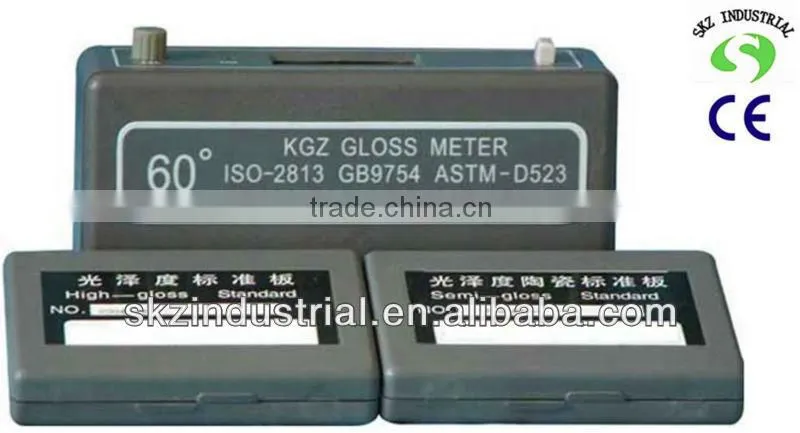

paper glossmeter
It is used for measuring the surface glossiness of coating, ink, plastic, pottery, stone, paper, metal etc. It is especially convenient for the field testing when there is no power.
Parameter reference:
Angle |
Standard reference |
Range for applying |
20° |
DIN-67530 ISO-2813 ISO-8254 ASTM-D523 ASTM-2457 |
High gloss paint, ink, plastic, paper. |
20° |
ASTM-D1834 TAPPI-T653 |
High gloss waxed paper and casting paper |
45° |
ISO-2767 |
The surface of aluminum alloy and aluminum oxide |
45° |
ASTM-C346 ASTMD-2457 |
Pottery, enamel, plastic, china and stone. |
45° |
JIS-E8741 |
Pottery, enamel, plastic, china and stone |
60° |
ISO-2813 ASTM-C584 ASTM-D523 KIN-67530 ASTM-D2457 |
Medium gloss paint, ink, plastic, pottery and stone. |
75° |
ISO8254 TAPPI-T480 |
CCL paper |
85° |
ISO-2813 DIN-67530 ASTM-D523 |
Low gloss paint, camouflage coating. |
Technical data:
·Value range: 0-199.9 (GS) unit for gloss.
·Accuracy: ±1 (GS), ± 0.5 GS
·Resolution: o.1 GS
·Repeatability: better than ±0.5 (GS)/10 min.
·Stable reading time: less than 5 seconds.
Functions:
·Four No.5 nickel-hydrogen batteries inside.
·Configured with small charger. 10 hours working time for 10 hours charging.
·Voltage 9V, electrode +.
·Display: when the voltage down to 4V, the screen will display LOBAT on left-up side.
·Dimension: 180mm×105mm×60mm.
·Weight: 1.0kg.
