Home > Products > Paper Testing Instruments > mullen burst tester cardboard bursting strength tester (Mullen)
mullen burst tester cardboard bursting strength tester (Mullen)
- 150 Unit / Units per Month
- Beijing/Qingdao/Shenzhen
- Credit Card PayPal
Product Details
| Place of Origin: | Shandong, China | Brand Name: | SKZ | Model Number: | SKZ108 |
| Power: | Electronic | Usage: | Strength Testing Machine |
Product Description

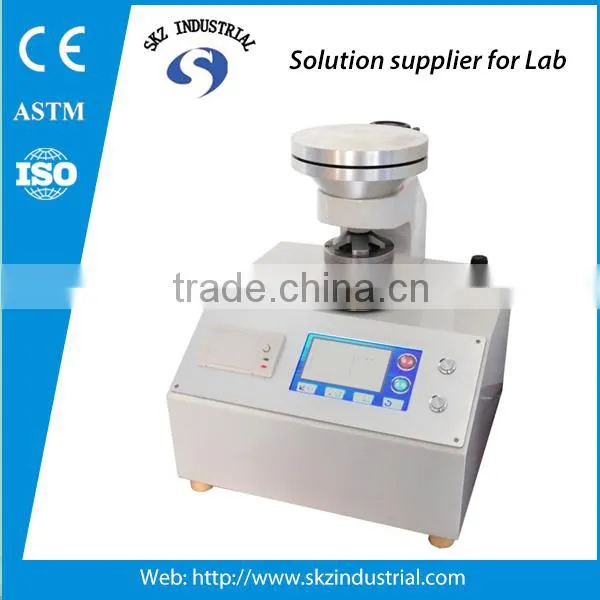

mullen burst tester cardboard bursting strength tester (Mullen)
It is the basic instrument for testing the anti-bursting degree of paper or cardboard. For cardboard: It conforms to the standards of ISO2759 (standard testing for cardboard bursting strength) and GB1539 (method for testing cardboard bursting strength). For paper: It conforms to the standards of ISO2758. It adopts signal transmitting press. When the specimen is burst, the tester stores the maximum of bursting strength automatically.
Characters:
1. Micro-computer control, use hydraulic oil as the driving force to break the specimen.
2. When the specimen is broken, it stores the maximum and reset automatically.
3. LCD displays, the unit of kgf/cm2, psi and kPa in option.
4. It adopts signal transmitting press
5. ISO 2759 and ISO 2758.
6. running joint is made of brass so that prolong its life-span.
7. Dimethyl Silicone Oil: Viscosity(mm2/s): 100+/-8, Density(25g/cm3): 0.960-0.970
Refractive index: 1.400-1.410
8. Show real-time curve
Technical parameters:
Type parameters Items |
SKZ108A paper |
SKZ108B cardboard | |
Indicating way | Digital display | ||
Power | (220±10)V; 50 HZ (grounding) | ||
Temperature | (20±10) °C | ||
Relative humidity | < 80% | ||
Accuracy | Error:±0.5%FS; mobility: < 0.5% | ||
Upper platen aperture dia. | (30.5±0.05)mm | (31.5±0.05)mm | |
Lower platen aperture dia. | (33.5±0.05) mm | (31.5±0.05) mm | |
Diaphragm size | Thickness (0.8--0.9)mm | Protruding height: (2.5±0.2) mm Protruding height 27.8 mm | |
Diaphragm resistance | Protruding 9mm: (20-40)mm | Protruding 10mm,(170-220) mm Protruding 18mm,(250-350) mm | |
Pressure between platen | ≥430 Kpa | ≥690 Kpa | |
hydraulic pressure sensor | 2000 Kpa | 6000 Kpa | |
transmit hydraulic volume | (95±15) ml/min | (170±15) ml/min | |
Overall outline of the tester
Overall outline of the side
Overall outline of the control panel
