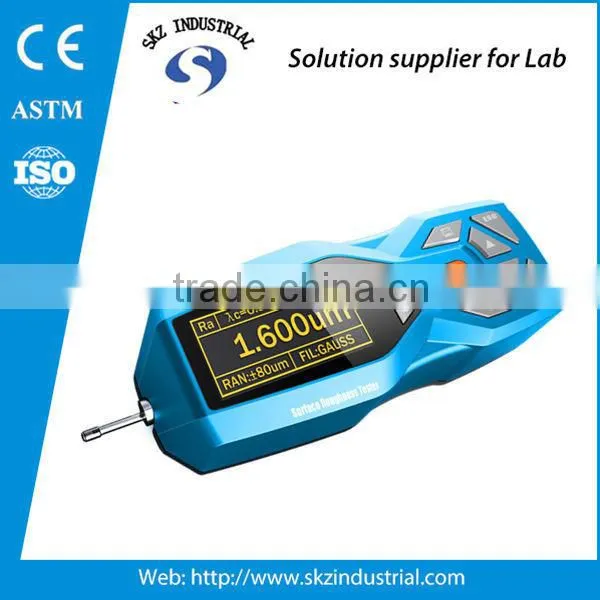

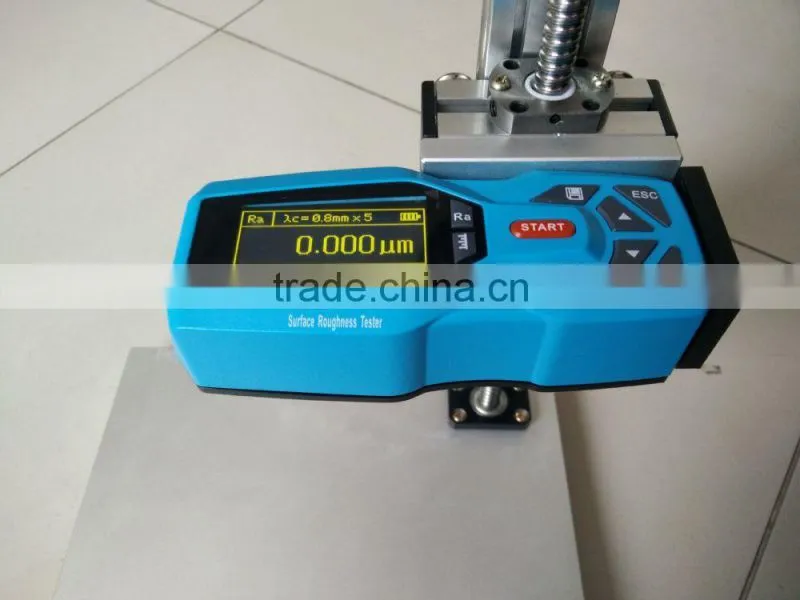

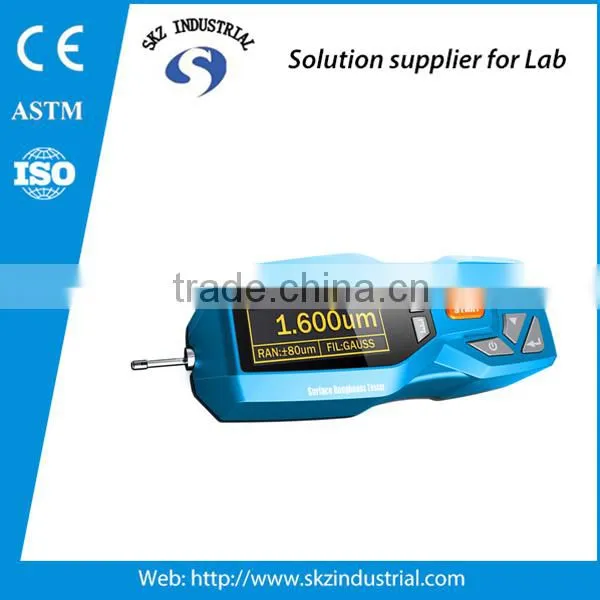

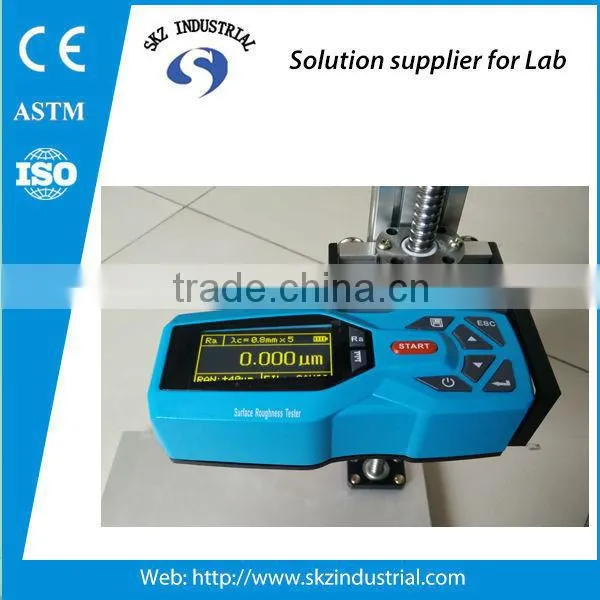

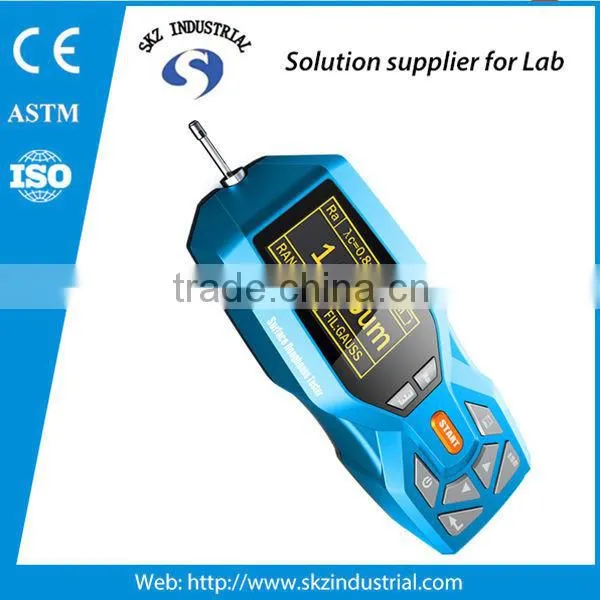

multi function USB digital portable surface roughness meter
It applies to production site and can be used to measure surface roughness of various machinery-processed parts, especially for roughness measurement of complex parts,
such as:Flat, Curved surface, Grooves and Holes.
Capable of evaluating surface textures with a variety of parameters according to various national standards and international standard.
The measurement results are displayed digital/graphically on the LCD, and output to the printer.
Work Principle:
When measuring roughness of part surface, the pickup is placed on the surface of the part and then tracing the surface at constant rate. The pickup acquires the surface roughness by the sharp stylus in pickup. The roughness causes displacement of pickup which results in change of inductive value of induction coils thus generate analogue signal which is in proportion to surface roughness at output end of phase-sensitive rectifier. This signal enters data collection system after amplification and level conversion. After that, those collected data are processed with digital filtering and parameter calculation by DSP chip and the measuring result can be read on LCD, printed through printer and communicated with PC.

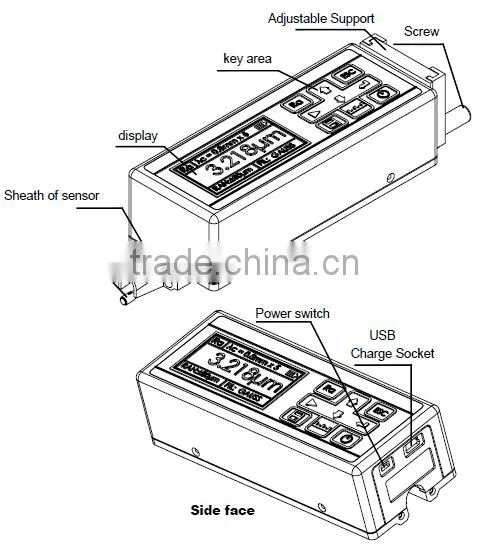

1. Electromechanical integration design, small size, light weight, easy to operation
2. DSP chip control and data processing, high speed, low power consumption;
3. Large measurement range
4. 14 parameters: Ra, Rq, Rz, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr

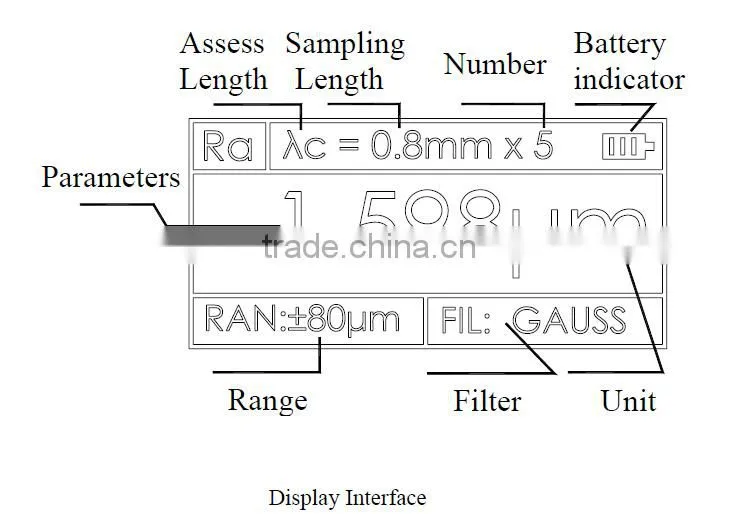

5. 128 × 64 OLED dot matrix display, digital or graphic highlight display, no viewing angle
6. Display full information, intuitive and graphical displays all parameters
7. Compatible with ISO, DIN, ANSI, JIS multiple national standards
8. Built-in lithium-ion rechargeable battery and control circuit, high capacity, no memory effect
9. Remaining charge indicator, charging hint
10. Can work more than 20 hours
11. Large capacity data storage, can store 100 items of data and waveforms
12. Real-time clock setting and display for easy data recording and storage
13. With automatic sleep, automatic shutdown power-saving functions
14. Reliable circuit and software design of prevent the motor stuck;
15. Display a variety of information tips and instructions.
Such as: Measurement, result display, the menu prompts and error messages
16. Metal case design, rugged, compact, portable, high reliability
17. Can connected to the computer and printer
18. All parameters can be printed and print content can be selected

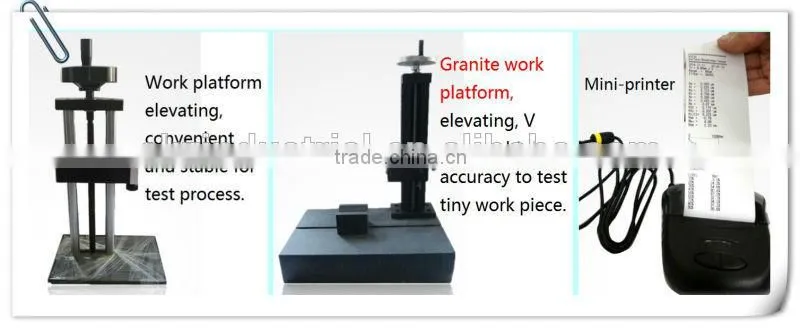

19. Optional accessory with extra charge: curved surface pickup sensor, holes sensors,
measurement stand, Sheath of sensor, extension rod, printer and analysis software
Sensor |
Measuring principle |
Current induction: the differential inductance by displacement |
Measure range |
160 μm |
|
Contact probe |
Natural diamond Cone angle: 90-degree Tip radius: 5um |
|
Test force value |
<4mN(0.4gf) |
|
Head guide |
Hard alloy, sliding direction radius: 40 mm |
|
Sliding speed |
Lr=0.25, Vt=0.135mm/s |
|
Lr=0.8, Vt=0.5mm/s | ||
Lr=2.5, Vt=1mm/s | ||
Return, Vt=1mm/s | ||
Measure Parameter |
Ra, Rz=Ry(JIS), Rq, Rt=Rmax, Rp, Rv, R3z, R3y, Rz(JIS), Rs, Rsk, Rku, Rsm, Rmr |
|
Measure range |
Ra:0.005μm--16.00μm Z axle (Vertical): 160um X axle (Horizontal): 17.5um |
|
Display range |
Ra, Rq: 0.005μm--16μm Rz, R3z, Ry, Rt, Rp, Rm: 0.02μm--160μm Rsk: 0--100% Rs, Rsm: 1mm Rmr: 0--100% |
|
Scale range |
±20μm, ±40μm, ±80μm |
|
Resolution |
Z axle (Vertical): 0.01um±20um 0.02um±40um 0.04um±80um |
|
Accuracy |
0.001um |
|
Error |
±(7-10)% |
|
Drift |
≤6% |
|
Measured profile |
Roughness, waviness, original contour |
|
Maximum stroke |
17.5mm/0.7inch |
|
Minimum stroke |
1.3mm/0.052inch |
|
4 Filter methods |
RC,PC-RC,Gauss,D-P |
|
Sample length (Lr) |
0.25mm,0.8mm,2.5mm |
|
Evaluation length (Ln) |
Ln=Lr×n, n=(1-5) |
|
Internal storage capacity |
100 groups of original data |
|
External input / output interface |
USB |
|
Electric source |
Built-in rechargeable lithium ion battery And external power adapter DC5V, 800mA |
|
Size and weight (net) |
158 x 63.5 x 46mm, 0.4kg |
|
Size and weight (gross) |
420*360*190mm, 2.5kg |
|
Working Environment |
Temperature: -20C---40C degree Relative humidity : less than 90% No vibration and no corrosive medium |
|
Optional accessory extra charge |

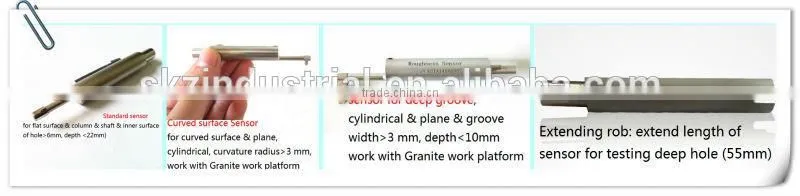

Curved surface sensor, small holes sensor, Groove sensor, deep grooves sensor, extension rod, Micro-printer, measurement platform |
|

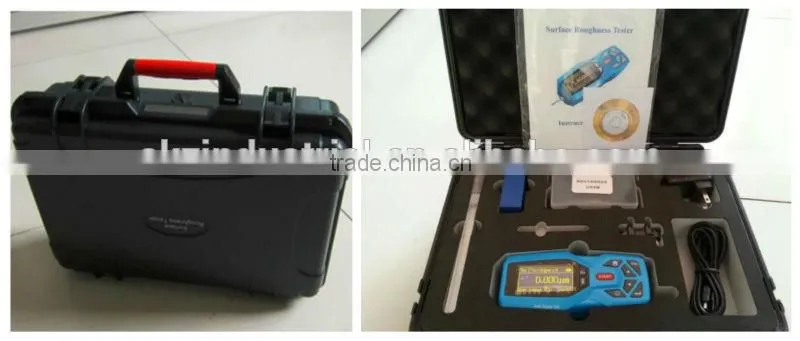

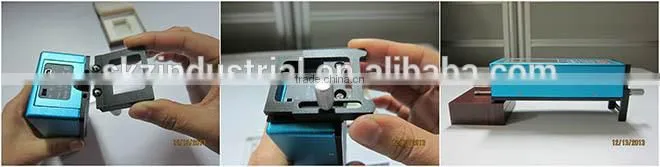

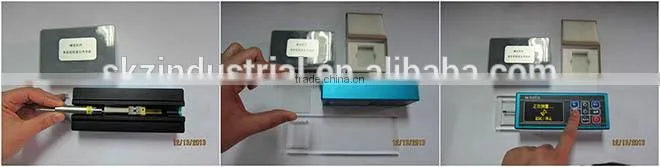

Packing list:
Host |
1 |
Standard sensor |
1 |
Calibration plate |
1 |
Bracket |
1 |
Charger |
1 |
Power adapter |
1 |
USB charging cable |
1 |
ABS case |
1 |
Optional accessory with extra charge
Specific ABS case with carton outside
