Best Price 220v dc 12v Power Source Transformer

Name: Best Price 220v dc 12v Power Source Transformer
Brand: YIGAO
SKU: 119488441
Availability: InStock

US$ 3.499 - 5.931 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

YIGAO

Model Number:

YT-AV12V60

Shenzhen Guangjiang Yigao AD. LED Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name YIGAO

Model Number YT-AV12V60

Output Power 51 - 100W

Output Type Single

Input Voltage 220V

Output Voltage DC12V

Output Frequency 50-60Hz

Output Current 5A

Specifications

best price 220v dc 12v power source
1.LED power supply
2.High Efficiency and good price
3.unwaterproof
4.Aluminum case

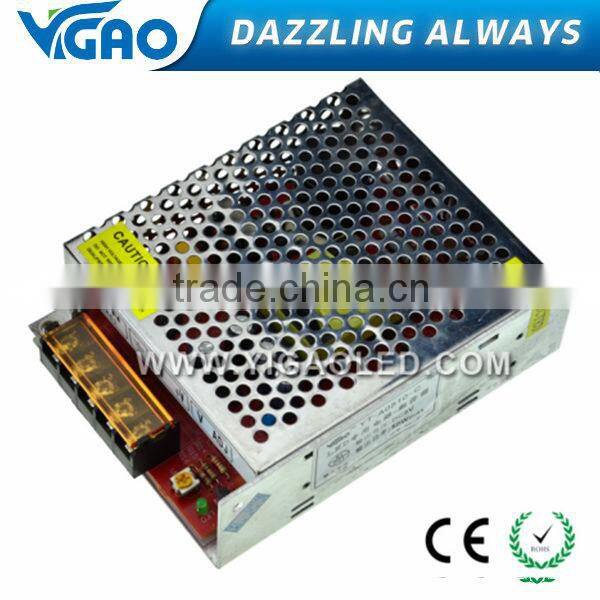

best price 220v dc 12v power source transformer

Our characteristic

What is the Features of our led lighting transformer ?

Model	S-120-5	S-120-12	S-60-12	S-25-12
DC output voltage	5V	12V	12V	12V
Output voltage tolerance	±2%	±1%	±1%	±1%
Rated output current	24A	10A	5A	2.1A
Output current range	0-24A	0-10A	0-5A	0-2.1A
Ripple and noise	50mVp-p	100mVp-p	100mVp-p	100mVp-p
Inlet stability	±0.5%	±0.5%	±0.3%	±0.2%
Load stability	±1%	±0.5%	±0.3%	±0.2%
DC output power	120W	120W	60W	120W
Efficiency	79%	84%	85%	85%
Output voltage adjustment range	±10%	±10%	±10%	±10%
AC input voltage range	85~132VAC/170~265VAC/47~63VAC,120~370VDC
Input current	0.6A/115V 0.35A/230V
AC impulse current	Cold-start current 15A/115V 30A/230V
Leakage current	<0.75mA/240VAC
Overload protection	105%~150% Type,PULSING HICCUP SHUTDOWN,Reset,auto recovery
Over-voltage protection	115%~135% rated output power
Temperature coefficient	±0.03%°C(0~50°C)
Setup rise hold up time	800ms,50ms,20ms/115VAC 300ms,50ms,80ms/230VAC
Vibration	10~500Hz,2G 10min./1cycle,Period for 60min,Each axes
Withstand voltage	I/P-O/P:2.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Isolation resistance	I/P-O/P I/P-FG O/P-FG:500VDC/100MΩ
Working temperature and humidity	-10°C~+60°C,20~90%RH
Store temperature and humidity	-20°C~+85°C,10~95 % RH
Overall dimension	1999838mm / 30pcs per carton
Weight	0.62Kgs
Safety standards	Desgin refer to UL1012,EN60950-1,EN61347-1,EN-61347-2 approved
EMC standards	EN55015,EN55022,EN55024,EN61000-2,EN61000-3,EN61547 approved
