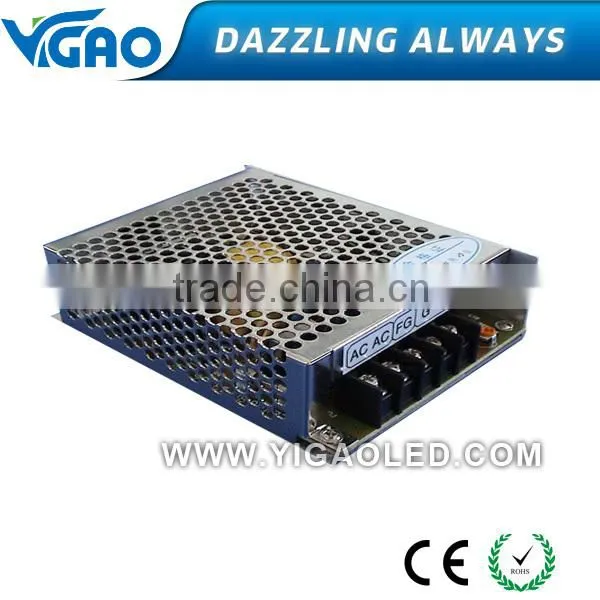

LED Power Supply Unwaterproof DC12V

Name: LED Power Supply Unwaterproof DC12V
Brand: YIGAO
SKU: 119486643
Availability: InStock

US$ 7.666 - 8.811 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

YIGAO

Model Number:

YT-AV12V36

Shenzhen Guangjiang Yigao AD. LED Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name YIGAO

Model Number YT-AV12V36

Output Power 101 - 200W

Output Type Multiple

Input Voltage 220V

Output Voltage DC12V

Output Frequency 50-60HZ

What is the Features of our dc power supply ?

Model	S-120-5	S-120-12	S-60-12	S-25-12
DC output voltage	5V	12V	12V	12V
Output voltage tolerance	±2%	±1%	±1%	±1%
Rated output current	24A	10A	5A	2.1A
Output current range	0-24A	0-10A	0-5A	0-2.1A
Ripple and noise	50mVp-p	100mVp-p	100mVp-p	100mVp-p
Inlet stability	±0.5%	±0.5%	±0.3%	±0.2%
Load stability	±1%	±0.5%	±0.3%	±0.2%
DC output power	120W	120W	60W	120W
Efficiency	79%	84%	85%	85%
Output voltage adjustment range	±10%	±10%	±10%	±10%
AC input voltage range	85~132VAC/170~265VAC/47~63VAC,120~370VDC
Input current	0.6A/115V 0.35A/230V
AC impulse current	Cold-start current 15A/115V 30A/230V
Leakage current	<0.75mA/240VAC
Overload protection	105%~150% Type,PULSING HICCUP SHUTDOWN,Reset,auto recovery
Over-voltage protection	115%~135% rated output power
Temperature coefficient	±0.03%°C(0~50°C)
Setup rise hold up time	800ms,50ms,20ms/115VAC 300ms,50ms,80ms/230VAC
Vibration	10~500Hz,2G 10min./1cycle,Period for 60min,Each axes
Withstand voltage	I/P-O/P:2.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Isolation resistance	I/P-O/P I/P-FG O/P-FG:500VDC/100MΩ
Working temperature and humidity	-10°C~+60°C,20~90%RH
Store temperature and humidity	-20°C~+85°C,10~95 % RH
Overall dimension	1999838mm / 30pcs per carton
Weight	0.62Kgs
Safety standards	Desgin refer to UL1012,EN60950-1,EN61347-1,EN-61347-2 approved
EMC standards	EN55015,EN55022,EN55024,EN61000-2,EN61000-3,EN61547 approved
