8.4 Inch 2.0MP Biological Binocular Digital Microscope With LCD Screen

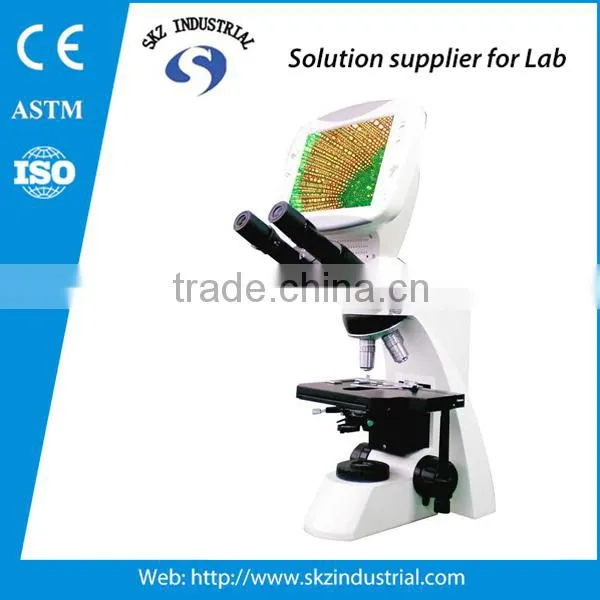

8.4 Inch 2.0MP Biological Binocular Digital Microscope With LCD Screen photo-1
US$ 500 - 2,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
SKZ
Model Number:
SKZ1047
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing/Shanghai/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name SKZ
Model Number SKZ1047
Theory Biological Microscope
Drawtube Binocular

8.4 inch 2.0MP biological binocular digital microscope with LCD screen



Microscopes with an embedded operating system, user can measure operation and take photographs and video directly onto the microscope, and operation result can be saved. It has a 8.4 TFT LCD screen, powerful processing capabilities (including dynamic measurement and calibration and real-time preview)



Technical parameters:

Digital section

2 million pixel CMOS image sensor chip

With a W-LAN and LAN function

Viewing Head

Binocular observation head, 30 ° inclined, IPD 52-75mm

Eyepiece

Large field eyepiece WF10 × / 18

Objective lens

Infinity half achromatic objectives 4X, 10X, 40X, 100X

Converter

Four-hole converter

Stage

Double moving platform, stage area: 140*140mm, movement range 75* 50mm

Condenser

Plug-in the condenser NA1.25

Illumination



6V / 20W halogen lamp, adjustable brightness

LED lighting, adjustable brightness (optional)

Digital screen

8.4 "TFT LCD touch screen

Output

USB2.0, AV Output, VGA Output, 100M Ethernet interface

Support System

Windows CE 5.0

Software

NMS (Microscope software)

NMS Client (PC software)

SD card

Support large-capacity high-speed SD card, optional SD card of 2G Kingston SD card (optional)



8.4 inch 2.0MP biological binocular digital microscope with LCD screen
