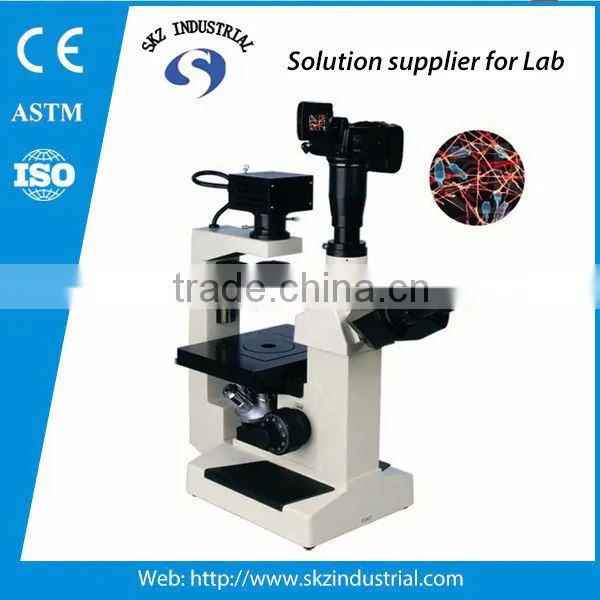

electric computer/camera Inverted biological microscope Quality Choice
- 800 Unit / Units per Month
- Beijing/Shenzhen/Shanghai
- Credit Card PayPal
Product Details
Place of Origin: | Shandong, China | Brand Name: | SKZ | Model Number: | SKZ1047 |
Theory: | Biological Microscope | Drawtube: | Binocular |
Product Description
electric computer/camera Inverted biological microscope
Usage:
Inverted biological microscopes, used to observe microorganisms, cells, bacteria, suspended solids, sediment, and tissue culture. Continuous observation of cells, bacteria in the culture fluid in the process of breeding division, can be photographed any of the patterns in the process. Widely used in cytology, parasitology, Oncology, immunology, genetic engineering, Industrial Microbiology, Botany field.
Technical parameter
1. Eyepiece
Type | Magnification | Field diameter (mm) |
Wide field eyepiece | 10X | φ18 |
16X (optional) | φ13 | |
20X (optional) | φ11 |
2. Objective lens
Lens type | Magnification | Numerical aperture NA | Working Distance (mm) | Coverslip thickness (mm) |
Long working distance len | 10X | 0.25 | 8.1 | 1.2 |
25X | 0.40 | 4.8 | 1.2 | |
40X | 0.60 | 3.3 | 1.2 | |
Long working distance phase contrast objective | 10X | 0.25 | 8.1 | 1.2 |
25X (optional) | 0.40 | 4.8 | 1.2 | |
40X (optional) | 0.60 | 3.3 | 1.2 |
3. Optical magnification: 100X 250X 400X, system reference magnification: 40X-2600X
4. Condenser: Long working distance condenser: NA = 0.4, working distance: 30mm
Ultra-long working distance condenser: working distance 70mm (optional)
5. Mechanical stage: Size 200mm * 140mm. Moving range 30mm * 75mm, grid value 0.1mm.Loading plate can be placed directly 96-well culture vessels, and configure multiple loading plate
6. Focus: Coaxial coarse focusing, micro-grid value 0.002mm
7. Light source: 6V / 20W halogen lamp, adjustable brightness
8. Anti - mildew: Unique system anti - mildew
System Description:
Can be observed in real time on a computer monitor, and can edit, save, and print the pictures.
Composition:
Computer type: 1. biological microscope 2. matching mirror 3. digital camera 4. data cable 5. computer (optional).
Digital camera type: 1. biological microscope 2. matching mirror 3. digital camera
Total amplification times reference
Computer type: 40--2600 times (17-inch monitor, for example)
Digital camera type: 40--2200 times (digital camera)
If above specification not match your request, or you have questions, Larger orders,
Please feel free to call, or e-mail!
