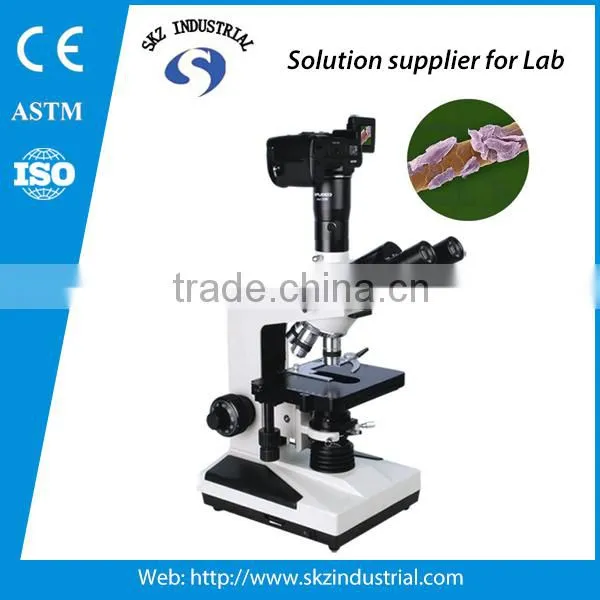

digital biological microscope price
Digital microscope is widely used in biology, bacteriology, histology, pharmaceutical Chemistry Research Institute, clinical trials in health care, laboratories are available for teaching purposes in schools.
Using binocular and artificial lighting, adjustable brightness, binocular 360-degree free rotation. Suitable for medical and health institutions, laboratories, research institutes and institutions of higher learning and other units for observation, teaching biology, pathology, bacteriology and professional use in research, clinical practice and routine medical examinations. This microscope is the choice of phase contrast, darkfield, polarized light and other accessories. Equipped with a variety of different products in order to meet the needs of different users.
Feature:
1.Adopts Binocular and the artificial lighting,
2. Lighting is adjustable brightness,
3. Binocular 360-degree free rotation.
4. Can equip with optional accessory of phase contrast, darkfield, polarized light to match different requires
Technical parameters
1.Eeyepiece
Flat-field eyepiece 10 ×. Φ22mm, 16 ×, φ11mm
2. Lens
Magnification |
Numerical aperture (NA) |
Working distance (mm) |
|
Achromatic objective lens |
4× |
0.10 |
17.5 |
10× |
0.25 |
7.31 |
|
40× |
0.65 |
0.63 |
|
100 × (oil) |
1.25 |
0.18 |
3. Optical magnification: 40X-1600X, System Magnification: 40X-2600X
4. Coaxial coarse focusing mechanism: Focusing range 15mm, micro-grid value: 0.002mm.
5. Mechanical tube length: 160mm.
6. The condenser lens Numerical aperture (NA): 1.25.
7. The mechanical stage size: 135mm × 125mm movement range: 75 × 50mm, the cursor cell value 0.1mm.
8. filter: blue, yellow, green.
9. The power source: 110V ~ 220V / 6V 20W halogen bulb, adjustable brightness.
10. anti - mildew: the unique anti - mildew system.
System Description:
Can be observed in real time on a computer monitor, and can edit, save, and print the pictures.
Composition:
Computer type: 1. biological microscope 2. matching mirror 3. digital camera 4. data cable 5. computer (optional).
Digital camera type: 1. biological microscope 2. matching mirror 3. digital camera
Total amplification times reference
Computer type: 40--2800 times (17-inch monitor, for example)
Digital camera type: 40--2400 times (digital camera)
