2015 Newest Led Backlight Module for Sign Board

FOB Price

Negotiable / Piece

100 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Light Source	LED	Input Voltage(V)	12
Lamp Power(W)	2	Lamp Luminous Flux(lm)	60-70
Lamp Luminous Efficiency(lm/w)	100	Color Temperature(CCT)	Cool White
Working Temperature(℃)	-15, 40	Working Lifetime(Hour)	1000
IP Rating	IP65	Certification	CE
Emitting Color	Cold White	Lamp Body Material	PVC
Place of Origin	Guangdong, China	Brand Name	Yigao
Model Number	YLJ-LS1/1W-6-Z

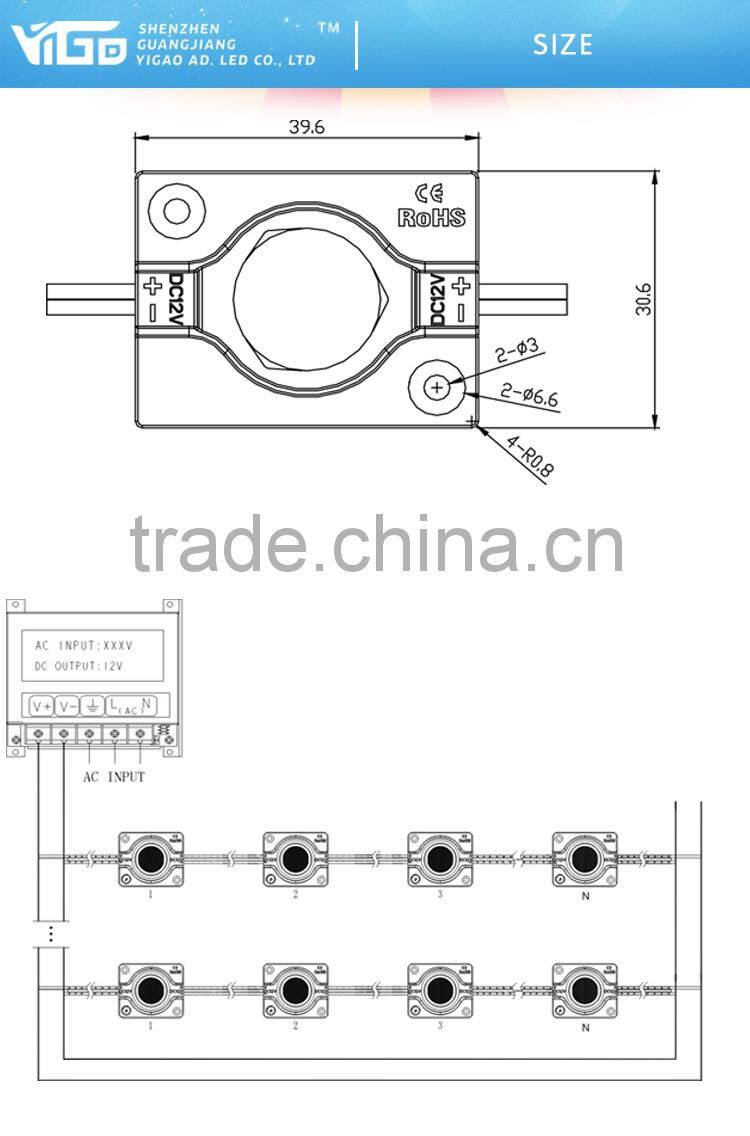

1W LED lighting box side viewing angle module YLJ-LS1/1W-6-Z

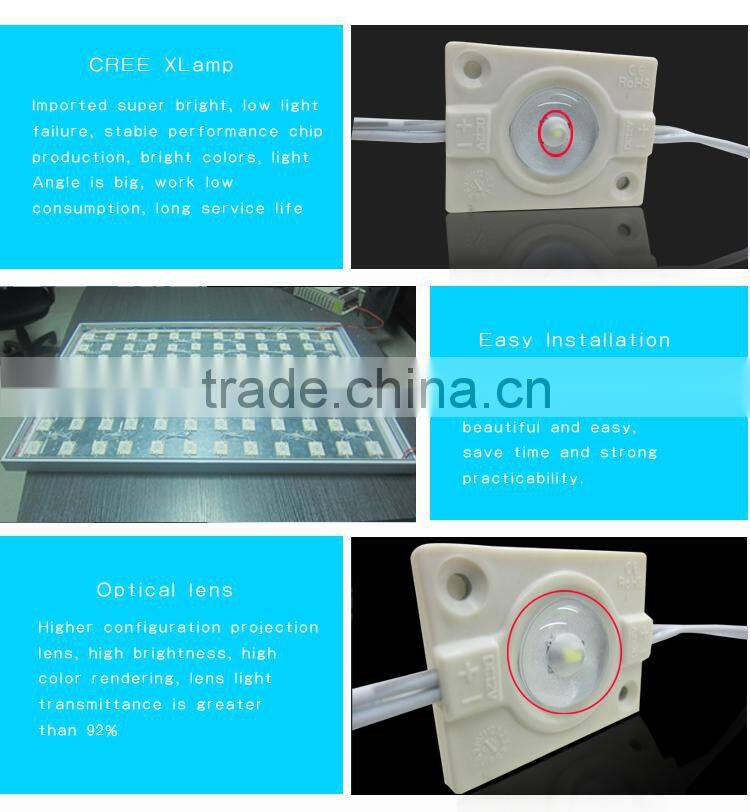

Feature:

Model	LEDs	Color	CT(K)	Angle	Power	Luminous	Voltage	Lens(°)	CRI(Ra)
YLJ-LS1/1W-6-Z	2835	white	9000~12000K	10*65°	1.44w	100-120m/pc	DC12V	10*65	>70

Beautiful, generous and elegant
Yigao independent research and development of high quality side viewing angle module source series products
This product is a diet high in 2015 of the latest research and development power module.
This product use safety
It can working 1000hours under the condition of zero droop.
Lifetime can reach 50000H

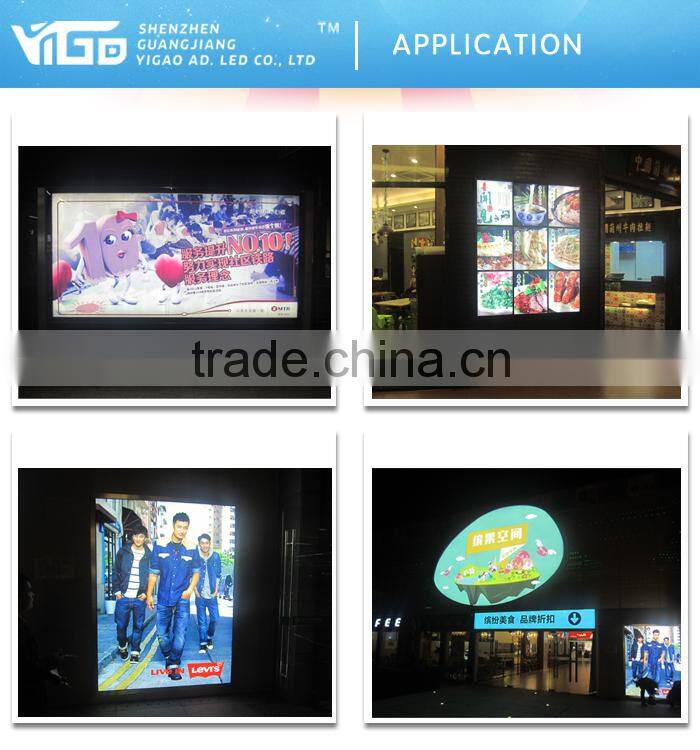

Application:

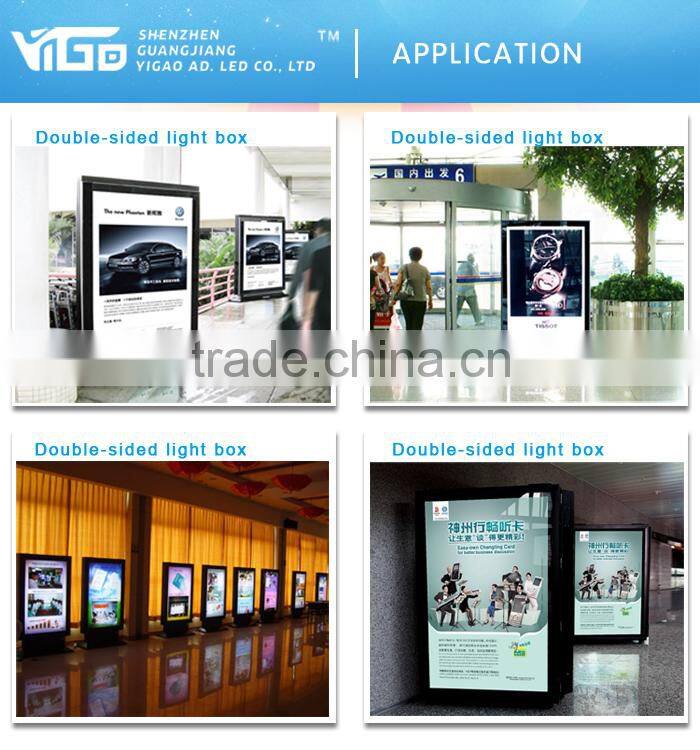

1. advertising lighting, double-sided light box, airport, subway, Banks, buildings, shopping malls and other small lab light box back lighting;

2. Scope of application: box 8 to 18 cm the thickness of the built-in light source
3. 1year/5000hours warranty
4. YiGao LED manufactory since 1995

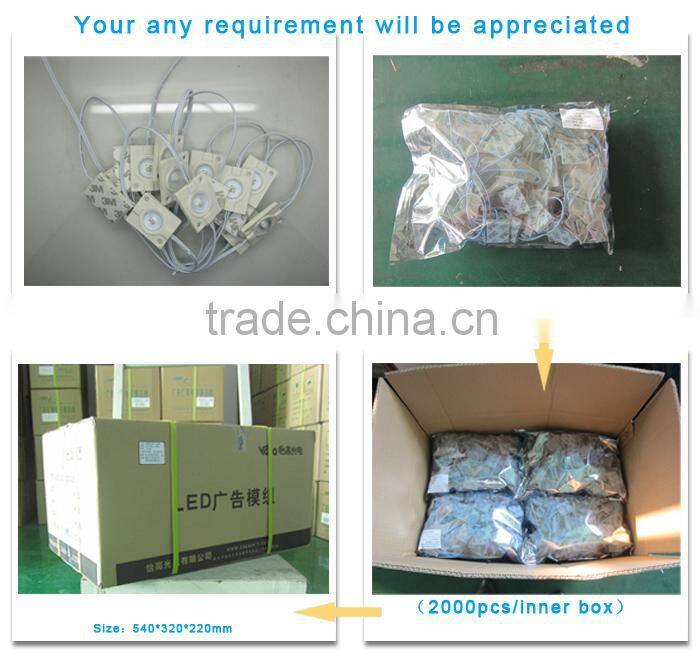

Packaging & Shipping

Application:
