ultrasonic sensor

Specifications

fessional manufacturer of parking sensor
2.self-test function activated when reversing
3.water-proof sensor

 ultrasonic sensor

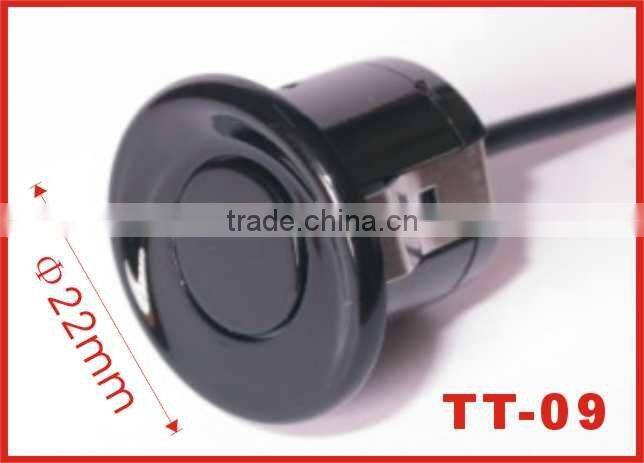

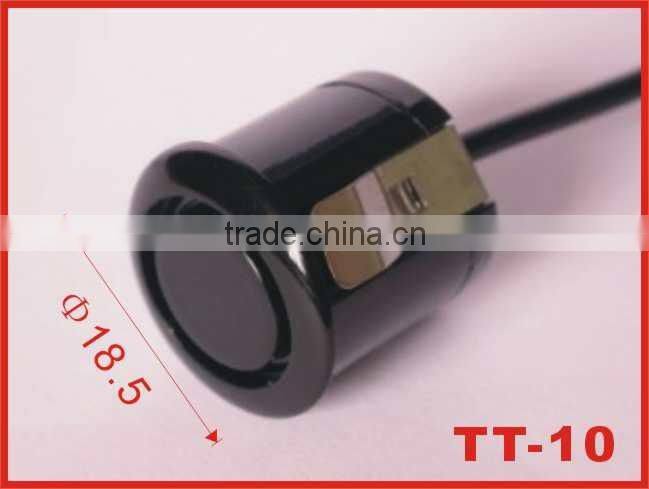

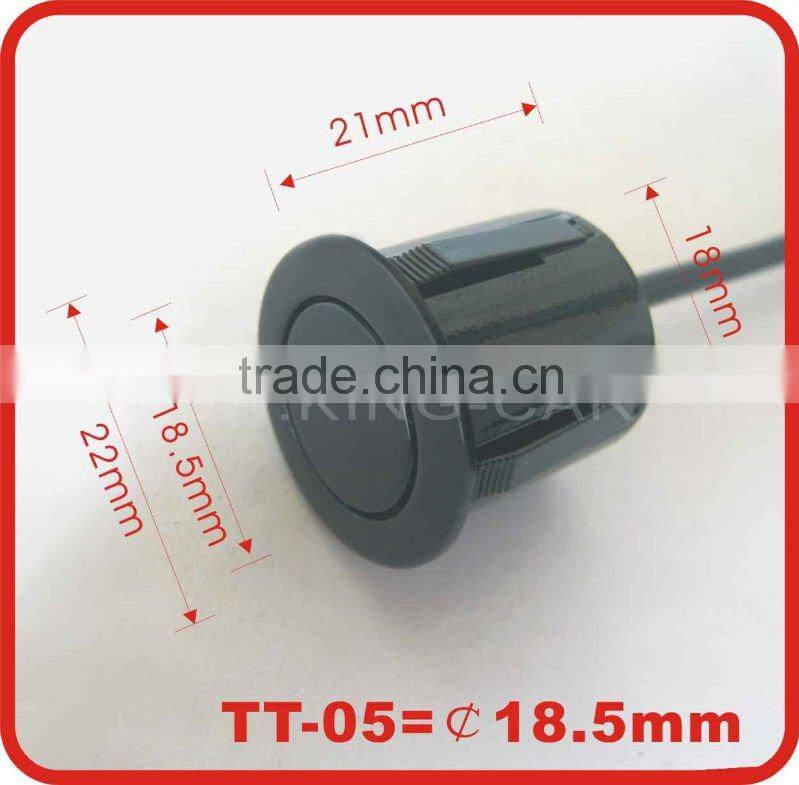

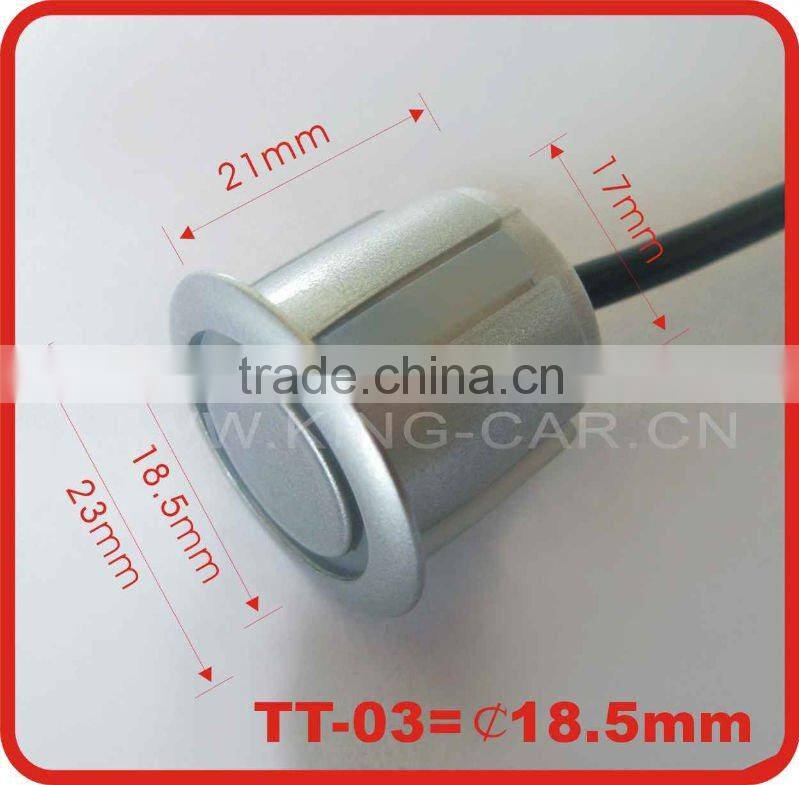

Deluxe mini size ultrasonic sensor for all vehicle models. With 11.5º angle spacer.

Hole diameter: 18.5~25mm(all size for choose)

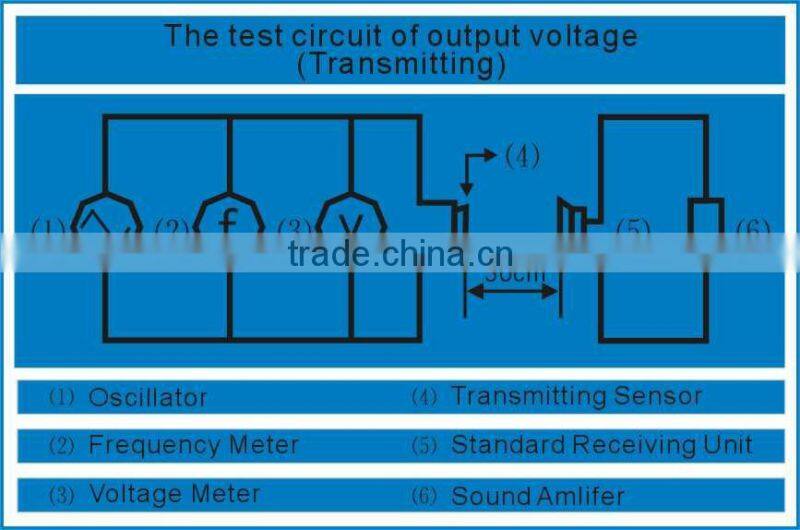

The test circuit of output voltage



 The test circuit of output voltage

ELECTRICAL SPECIFICATION:

1	Center frequency(KHz)	40±1.0KHz
2	Echo Sensitivity	≥350mV
3	Decay Time	≤1.2ms
4	Directivity (deg)  X-axis	60±15
5	Directivity (deg)  Y-axis	60±15
6	Capacitance (pF)	2000±15%
7	Allowable Maximum Input Voltage(Vp-p)	140(40KHz) Pulse width 0.5ms, interval 20ms
8	Mean Time To Failure	5000h
9	Operating Temperature	-40~+80
10	Storage temperature	-40~+85



   Since 2004 King-Car Technology has been one of the true pioneers of the Parking Sensor industry.At King-Car our business philosophy is to continuously choose perfection.

    We choose perfection by manufacturing and stringently testing all components for our Parking Sensor Systems 'in-house'. This guarantees that our systems are of the highest quality, reliability and durability, in compliance with all applicable international standards.

    We choose perfection by developing and nurturing close relationships with our distributors and other business partners to ensure that our products and services fulfill the most current market needs.

     Choosing King-Car ensures a level of perfection in your work that is unachievable by any other Parking Sensor Systems provider.

     When you choose King-Car you choose the highest performance, best-made Parking Sensor systems.
