8 5/8" Bow Casing Centralizer for Water Well Drilling Quality Choice

8 5/8" Bow Casing Centralizer for Water Well Drilling Quality Choice thumbnail-1
8 5/8" Bow Casing Centralizer for Water Well Drilling Quality Choice photo-1
US$ 50 - 150 MOQ: 20 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Horlion
Model Number:
8 5/8
Contact Supplier Request Quote Chat Now
Shenzhen Horlion Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Qingdao Shanghai Guangzhou Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Horlion
Model Number 8 5/8
Type Hydraulic Support
Machine Type Drilling Tool
Certification API
Material High Manganese Steel
Processing Type Forging
Use Well Drilling

  8 5/8" bow casing centralizer for water well drilling



Product Description

  Our casing centralizers have advantages of safe and reliable,with simple structure and high strength,which make it good strength reduction perfermance in drilling projects.Elastic casing centralizers are widely used in vertical well and highly deviated well casing operation,it's a good help to drillers.Technical datas are as the followIng:



  Weld casing centralizer

Model (in)

Hooping In-Dia. (mm)

Hooping Thickness (mm)

Hooping Height (mm)

Total Length (mm)

Max. Out-Dia. (mm)

Spring Pieces

5-1/2*8-1/2

142-148

5-7

50-60

650±50

225±5

5

6*8-1/2

154-158

5-7

50-60

650±50

255±5

5

13-3/8*17-1/2

342-349

8

50-60

580

450±5

6

20*26

510-518

8

50-60

650±50

670±5

10



  Non-weld casing centralizer

Model (in)

Hooping In-Dia. (mm)

Hooping thickness (mm)

Hooping Height (mm)

Total Length (mm)

Max. Out-Dia. (mm)

Spring Pieces

5-1/2*8-1/2

142-148

3-5

90-120

650±50

225±5

5

7*9-5/8

181-186

3-5

90-120

650±50

255±5

6

7*8-1/2

181-186

3-5

90-120

650±50

235±5

6

8-5/8*12-1/4

223-228

3-5

90-120

650±50

330±5

8

9-5/8*12-1/4

250-255

3-5

90-120

650±50

330±5

8

10-3/4*12-1/4

274-276

3-5

90-120

650±50

330±5

9

13-3/8*17-1/2

342-347

3-5

90-120

650±50

450±5

11

18-5/8*24

476±1

3-5

90-120

600±50

610±5

12

20*26

510±1

3-5

90-120

600±50

660±5

12

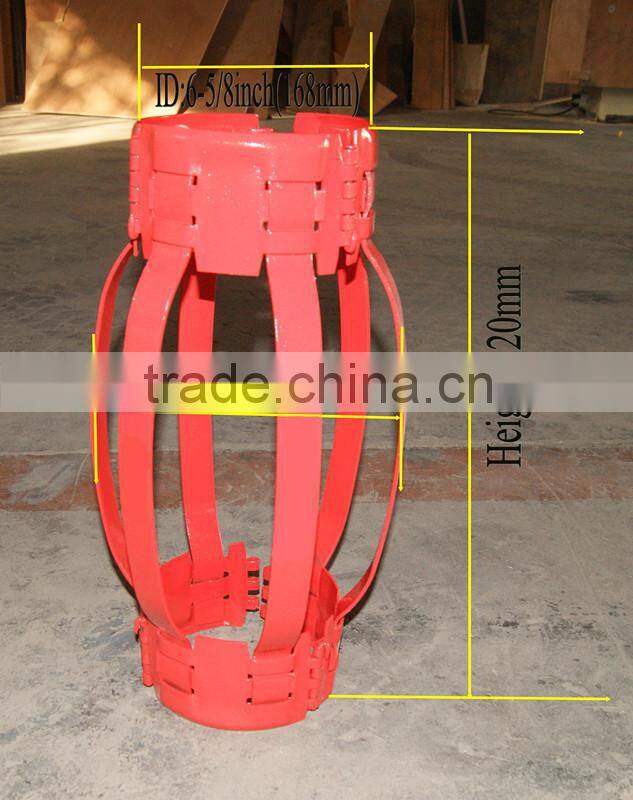

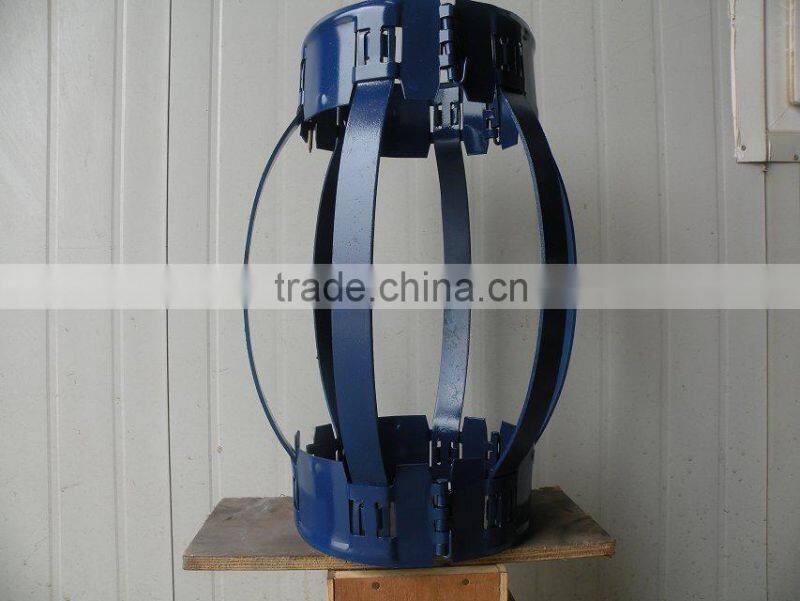

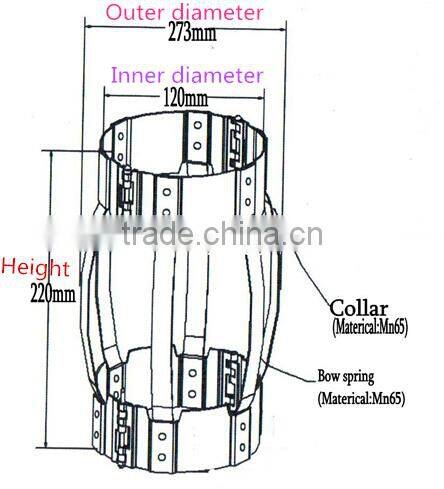

Casing centralizer pictures

 8 5/8" bow casing centralizer for water well drilling8 5/8" bow casing centralizer for water well drilling8 5/8" bow casing centralizer for water well drilling

Packaging & Shipping

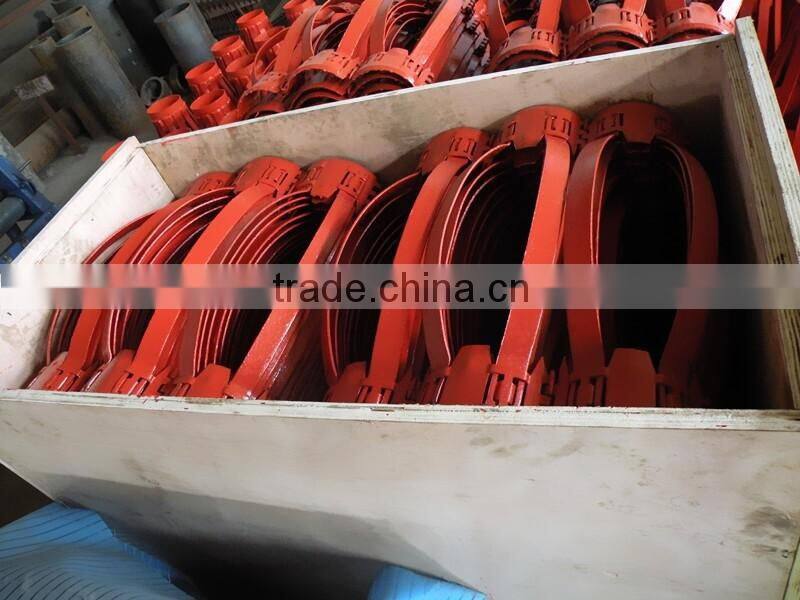

 Packing in wooden case or according to customer requirement.

8 5/8" bow casing centralizer for water well drilling

 Shipping by truck,sea,air,etc

8 5/8" bow casing centralizer for water well drilling

Our Services



  (1)Produce bow spring centralizer,rigid centralizer,roller centralizer,cast aluminium centralizer

  (2)All models are available,MOQ is only 20 pcs.Many sizes in stock.OEM,ODM all welcomed

  (3)Our casing centralizer is anti-corrosion and long working life.Export to USA and Europe

  (4)Fast production for big orders,delivery by sea,truck,air,express.Works on FOB,CFR,CIF



Company Information

  Shenzhen Horlion Machinery is a raising quality machinery exporter,as we own several drilling machine tools factory,which ones produce centralizers, water well screen,steel tooth tricone bit,TCI tricone bit,PDC bit,DTH hammer and bit,drag bit,drill pipe (rod),casing pipe,diamond wireline drilling tools.We have strong support in research,development,production and shipping from our partners.It make us more competitive in quality,price and service.



FAQ



  (1)What material centralizers you produce?



  Answer:MN65 and other material if buyer require



  (2)What specification is your casing centralizers?



  Answer: Diametere between 140mm and 510mm,length 600mm more or less.



  (3)We are interested in your casing centralizers,we have some questions.How can I get your offer?



  Answer:Kindly send us E-mail or call us,we will try all best to support you and give you good price.
