7.5 Inch Cross Flow Fans / 190mm AC Tangential Wheel Fan Diameter 30mm

FOB Price

USD $8 - $15 / Piece

500 Pieces(Min.Order)

Product Details

Electric Current Type:	AC	Blade Material:	Stainless Steel	Mounting:	Other, cooling fan
Place of Origin:	Guangdong, China	Brand Name:	OEM/ODM	Model Number:	LRE30190A22
Power:	13W	Voltage:	110-120V , 220-240V	Air Volume:	28CFM
Speed:	2700RPM	Certification:	CCC, CE, ROHS, UL, Other, UL, CE, CCC, CE, ROHS, UL, ISO9000, UL ,CE, RoHS, TUV	After-sales Service Provided:	Overseas third-party support available

7.5 Inch Cross Flow Fans / 190mm AC Tangential Wheel Fan Diameter 30mm

1. Purpose:

It is applied in air cleaner,elevator,humidifier , laboratory,workshop,dehumidifier,projector and copy machine, etc..

2. Expeceed Life:

Ball Bearing 50,000 hours
Sleeve Bearing 30,000hours

3. ELECTRICAL CHARACTERISTICS:

ALL MEASUREMENTS PERFORMED AT25~30℃ ROOM TEMPERATURE

& 50~80%R.H.UNLESS OTHERWISE SECIFIED.

1	RATED VOLTAGE	VOLTS	V	220 VAC
2	OPERATION VOLTAGE	VOLTS	V	160-242
3	FREQUENCY	Hz	Hz	50
4	NPUT CURRENT	AMP	A	0.13A±10%	AT RATED VOLTAGE
5	INPUT POWER	WATTS	W	13W ±10%	AT RATED VOLTAGE
6	ROTATION SPEED	RPM	RPM	2700±10%
7	ACOUSTICAL NOISE(AVG)	dB(A)	dB(A)	≤32	DETAILS SEE ATTACHED PAGE.
8	MAX .AIR-FLOW	CFM	Q	28	TWO-CHAMBER METHODS DEAILS SEE ATTACHED PAGE.
9	MAX . AIR-PRESSURE	mmH₂O	P	1.0	TWO-CHAMBER METHODS DEAILS SEE ATTACHED PAGE.
10	INSULATION RESISTANCE	MEG. OHM	MΩ	>20 MΩ	BETWEEN FRAME AND TERMINAL
11	DIELECTRIC STRENGTH			1800V,3S,1MA	BETWEEN FRAME AND TERMINAL.
12	ROTARY DIRECTION			CC W
13	INSULATION CLASS			CLASS E
14	LIFE EXPECTANC			15000 Hours at 25℃/65%RH

4. ENVIRONMENTAL:

4-1.OPERATING TEMPERATURE----------------------- -20 TO+50℃(CLASS E)

4-2.STORAGE TEMPERATURE ------------------------- -30 TO+75℃

4-3.OPERATING HOMIDITY-----------------------------------RH20%-80%

5. Specifications:

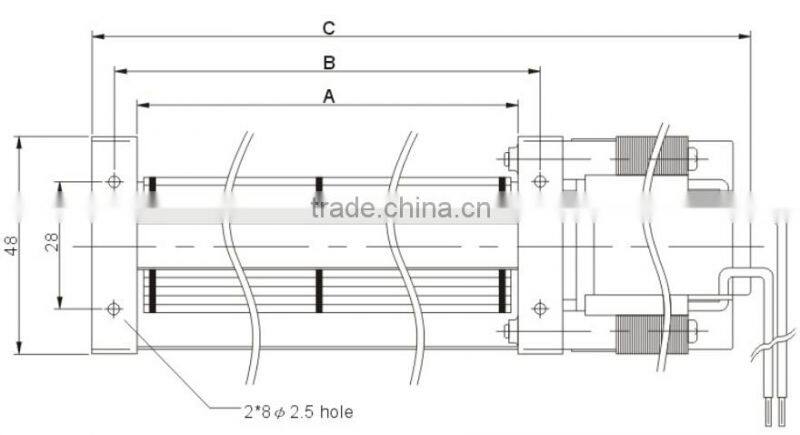

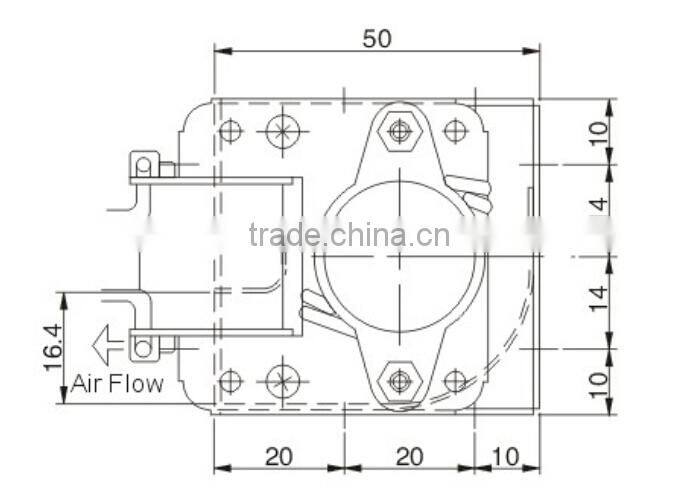

6: Dimensions (Unit:mm)
