Home > Products > Cross flow fan > 230V AC Tangential Cooling Fan/Cross Flow Cooling Fan 220/240v 50*420mm
230V AC Tangential Cooling Fan/Cross Flow Cooling Fan 220/240v 50*420mm
USD $8 - $18
/ Piece
1000 Pieces(Min.Order)
- 20000 Piece / Pieces per Month
- shenzhen
You May Like
Product Details
Electric Current Type: | AC | Blade Material: | Stainless Steel | Mounting: | Other, cooling fan |
Place of Origin: | Guangdong, China | Brand Name: | OEM/ODM | Model Number: | LRE50420A22 |
Power: | 24/29W | Voltage: | 220/240V | Air Volume: | 82/115CFM |
Speed: | 1300/1800RPM | Certification: | CE, ROHS | After-sales Service Provided: | No overseas service provided |
Product Description
230V AC Tangential Cooling Fan/Cross Flow Cooling Fan 220/240v 50*420mm
Product Description

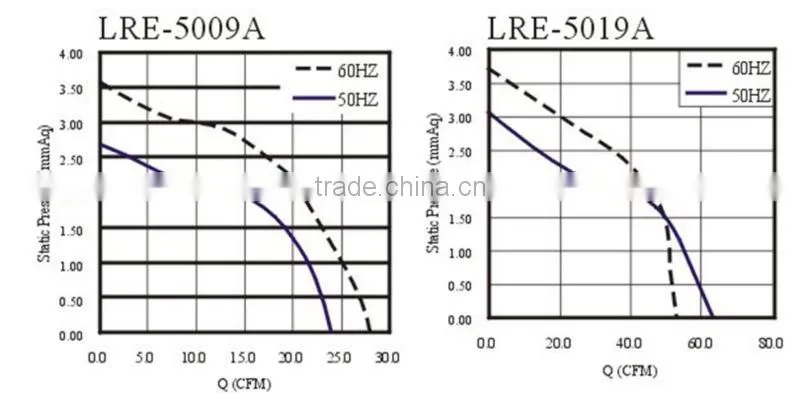

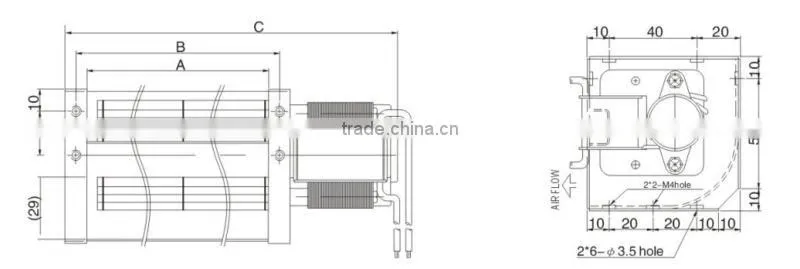

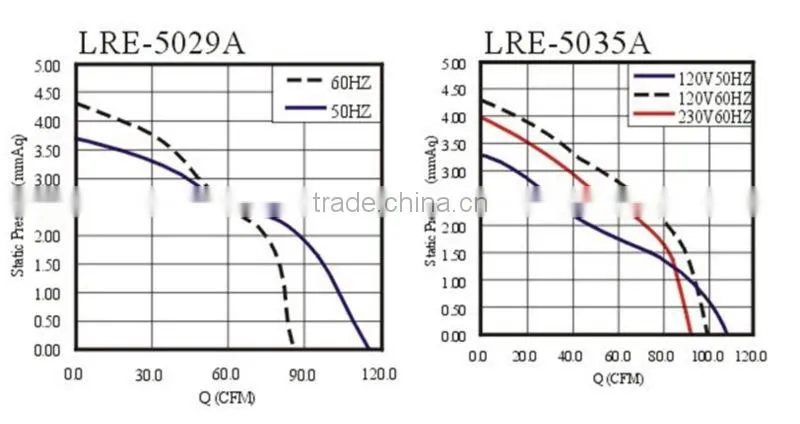

Model | Size(mm) | Beaing system | Rated voltage (v) | Freq (HZ) | Current (Amp) | Rated Input Power Watt | Speed (rpm) | Air Flow (CFM) | Air Flow (m3/mim) | Max Static Pressure (Inch-H2o) | Noise Leve (dB-A) | Weight (g) | ||
A | B | C | ||||||||||||
LRE50090A11 | 98 | 108 | 162 | Ball | 110/120 | 50/60 | 0.12 | 10 | 2650 | 24/28 | 0.7/0.8 | 1.1 | 39 | 610 |
LRE50090A22 | Ball | 220/240 | 50/60 | 0.07 | 12 | 2500 | 24/28 | 0.7/0.8 | 1 | 36 | ||||
LRE50190A11 | 198 | 208 | 267 | Ball | 110/120 | 50/60 | 0.21 | 16 | 1800 | 67/60 | 1.9/1.7 | 1.7 | 37 | 770 |
LRE50190A22 | Ball | 220/240 | 50/60 | 0.09 | 14 | 2100 | 63/65 | 1.8/1.6 | 1.8 | 41 | ||||
LRE50290A11 | 298 | 308 | 377 | Ball | 110/120 | 50/60 | 0.32 | 24 | 2100 | 116/88 | 3.3/2.5 | 3.7 | 41 | 1100 |
LRE50290A22 | Ball | 220/240 | 50/60 | 0.14 | 21 | 2250 | 116/81 | 3.3/2.3 | 3.8 | 44 | ||||
LRE50350A11 | 358 | 368 | 437 | Ball | 110/120 | 50/60 | 0.33 | 23 | 2000 | 110/103 | 3.1/2.9 | 2.9 | 42 | 1200 |
LRE50350A22 | Ball | 220/240 | 50/60 | 0.15 | 20 | 2200 | 110/92 | 3.0/2.6 | 3.1 | 40 | ||||
LRE50420A11 | 420 | 430 | 495 | Ball | 110/120 | 50/60 | 0.28 | 24 | 1300 | 115/90 | 3.3/3.1 | 2.31 | 50 | 1350 |
LRE50420A22 | Ball | 220/240 | 50/60 | 0.25 | 29 | 1800 | 115/95 | 3.3/3.0 | 3.23 | 51 |
