Help CenterSemi Trailer 28T Landing Gear, T-type Landing Gear
Related Products
Semi trailer spare parts landing gear, 28T landing gear, Jost same quality T type landing gear for trailer.
1)Capacity: 28T
2)Static Load: 80T
3)Speed: Higher 9, Lower 0.9
4)Lift/Height: 430/830; 480/880
HJ Landing Gear Factory supplies landing foot for semi-trailers & RV semi-trailers.
Gear Box: Inside & Outside
Operation: Single side & Double side
Lifting Capacity: 25 ton ~ 35 ton.
Static Load: 50 ton ~ 90ton
Out put: 100,000 pairs yearly
28T/25T T type trailer landing gear or leg:.
1) Rolling shaped, high-intensity
2) Transmission gear: high alloy steel materials
3) Lift height is 430 and 480mm.

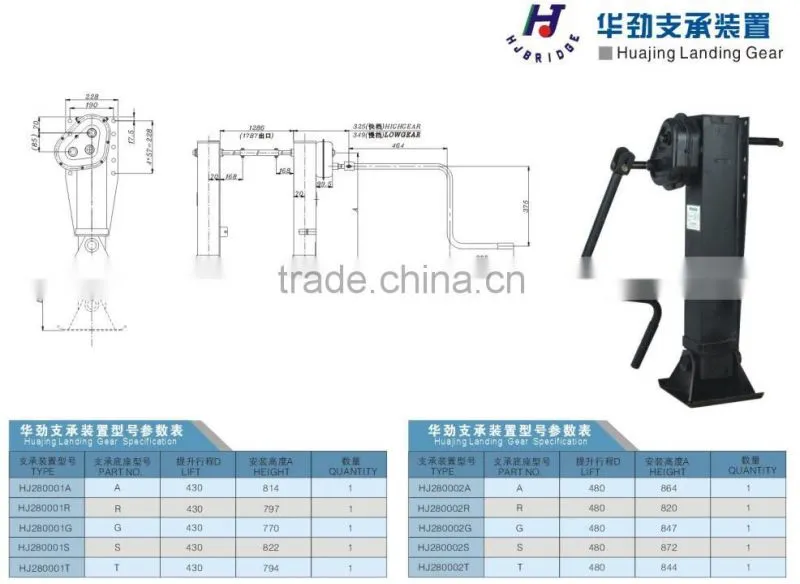

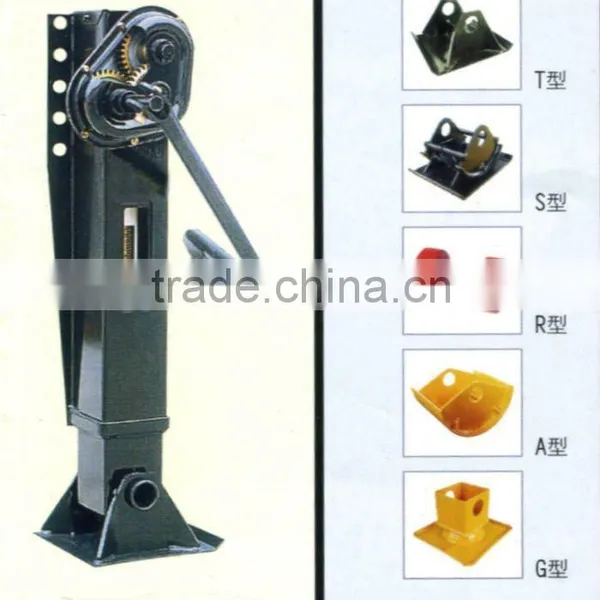

HJ28001A,R,G,S,T type Landing gear left height:430mm
HJ28002A,R,G,S,T type landing Gear left height:480mm
Landing Gear Features :
- Ideal for heavy-duty trailers
- 2-Speed jack makes cranking faster and easier
* Low gear: full lifting power offers smooth and easy ratio of 1" for every 27-1/3 turns
* High gear: ultimate speed with 1" for every 4-1/2 turns
- Traditional gearbox design requires you to reposition crank to switch gears
* Sidewind crank included
- Easy-to-access grease fittings
- Heavy-duty steel leg band provides extra strength and support
- High-efficiency, double-lead screw
- Self-leveling sand shoe offers absolute stability
- Set includes 2-speed jack, single-speed jack and crank
* Cross shaft not included - a user-made connecting rod is required to match the width of your trailer
- Direct-weld design
- Black paint finish
Landing Gear Function & Attention :
1.The device is use for semi-trailer and special trailers.
2.It lift and support trailer when it is separated from tractor.
3.It's also in use for all sorts of trucks that they are secured to work as jack.
4.The quality is up to the standard of American ABS specification.
5.Landing Gear has slow and fast two speed. Please use slow speed when loading. It is easy to operate. Do not use fast speed. It is possible to injure landing gear.
