Specifications
induction light1.75lm/w
2.High-efficiency&Energy-saving
3.CRI>80,PF>0.98
4.CE/CCC/UL/ROHS
we are a professional manufacturer of induction lamps,led flood light ,led street lights ,induciton lamps and other lighting for 14 years in China
The Feature of induction light
1. Lumen Efficiency : 68-73 lm/w
2. Color Rendering Index : ≥ 80
3. Color Temperature : 2700K~6500K
4. Starttime : ≤ 0.5 seconds
5. 20000h Lumen Maintenance : ≥ 80%
6. Operation Frequency : 2.65 MHz
7. Power Factor : > 0.98
8. Environment Temperature : -30°C~+50°C
9. Ultra - Long life up to 60,000 hours
10. Energy Saving : save up to 40 % compared to metal halides, 5 times more efficient than incandescent light bulbs, and up to twice as efficient as compact fluorescent lights.
11. Low energy consumption.
12. Flicker - free start, ideal for areas with high switching frequency.
13. High light efficacy, great Color Rendering Index.
14. 3 years warranty
International standard: CCC,CE ( EMC ) test standard,CE( LVD ) test standard ,UL,RoHS.
Specification of 200w induction light | |
| bulb type | SDWJD200W-P(Round Shape) |
| luminous flux | 13000 lm |
| color temperature | 3000K~6500K |
| color rendering index | 80 |
| diameter | 150mm |
| length | 238mm |
| life | 60000H |
| ballast type | CN-220-200W |
| input voltage | AC 220V±10% |
| input current | 1.0A |
| power | 200W |
| environment temperature | -30~50°C |
Shinder induction light can be 40w -200w,the detail is as folowing :
Power |
Dimension |
Luminous Flux |
Ra |
Power Factor |
40W |
E 90*193 R 85*155 |
2920 |
80 |
0.98 |
50W |
E 90*193 R 85*155 |
3650 |
80 |
0.98 |
65W |
E 90*193 P 110*185 |
4745 |
80 |
0.98 |
85W |
E 90*193 P 110*185 |
6205 |
80 |
0.98 |
100W |
E 120*238 P 130*210 |
7300 |
80 |
0.98 |
120W |
E 120*238 P 130*210 |
8760 |
80 |
0.98 |
135W |
E 120*238 P 130*210 |
9855 |
80 |
0.98 |
150W |
E 120*238 P 130*210 |
10950 |
80 |
0.98 |
165W |
E 125*250 P 145*220 |
12045 |
80 |
0.98 |
200W |
P 150*228 |
14600 |
80 |
0.98 |
Application for 200w induction light :
1. Indoor and outdoor lighting
2. Location where are difficult to access with, such as warehouse, shopping mall, supermarket, freeways, garage, gas stations, stadium, bridges, tunnels, subway, refrigerator, etc.
3. Location where are of high eyesight requirement for high precision operation, such as office, schools, hospitals, operating workshops, etc.
4. Emergency lighting requiring instant (re)start, such as airport.
5. Harzadous areas.
6. Solar light system.
Comparison Program between Induction Lamp & LED light
Comparison program |
induction lamp |
LED |
Feature Define |
Low Voltage Discharge |
Lighting Emit Diode |
Liner light. Good for large wattage application. |
Spot light. Usually for signboard, decoration applications. |
|
Market potential |
Big |
flood area |
Application |
Industrial, commercial, street, tunnel, bridge, garden, agriculture, Ad. … |
Traffic signal, vehicle rear lights, cell phone display screen etc. Limited in functional lighting projects. |
Technical data |
1. Power: 15~300W |
1. Each 0.5~1W, more than 100 needed for large wattage. |
2. Efficacy: >80lm/w |
2. Efficacy: <60 lm/w(white light) |
|
3. CRI: >80Ra |
3. Color Rendering Index: >80Ra |
|
4. Color temperature: 2100K~6500K full range |
4. Color temperature narrow range(white light LED) |
|
5. Depreciation: 5%(2000hrs) |
5. Light attenuation: >50%(2000 hours) |
|
6. Life:>100,000hrs |
6. Service life: <50,000hours |
|
7. Heat output: very low |
7. Heat value: very high, needs cooling device. |
|
8. Light fitting: easy to accommodate |
8. Fixture: because of more than100 led in the same large Circuit Board, it is difficult to design the right reflector. |
|
9. Liner light source: no glare, no flicker, good visual effect. |
9. Light source: Dazzling glare and flicker, serious light pollution. |
Color Temperature of induction light

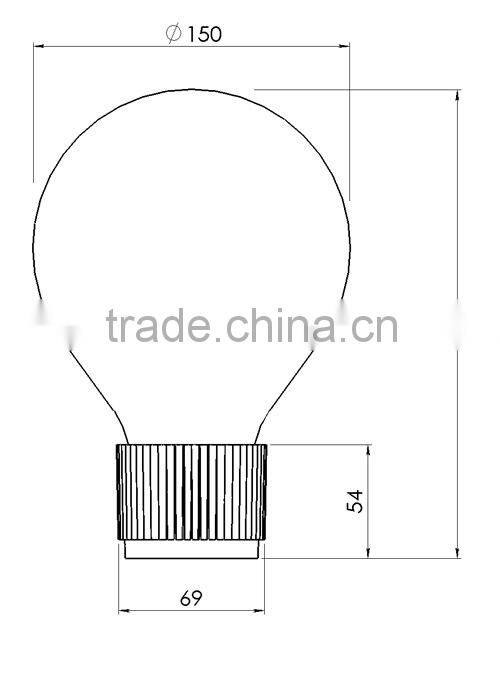

The dimension of induction light bulb

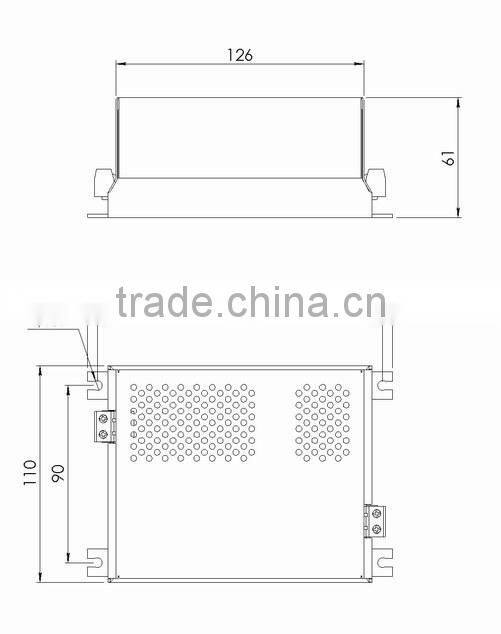

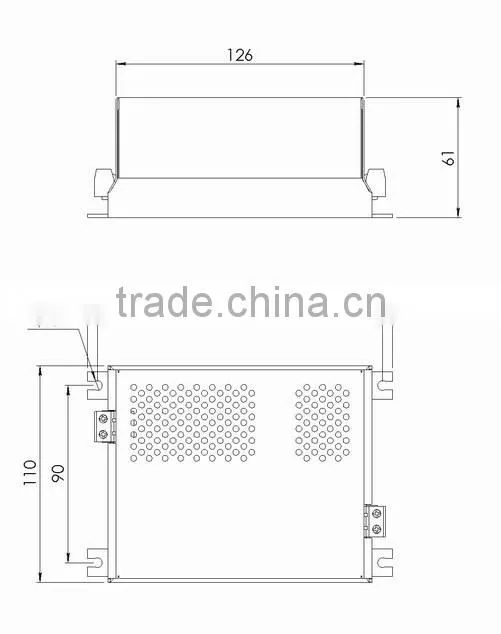

The dimension of 200w induction light Ballast :

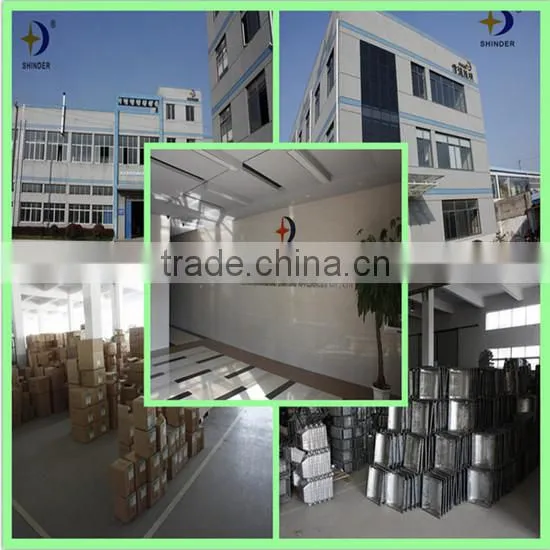

Our factory :
