Home > Transportation > Truck > Dump Truck > 2014 SINOTRUK 6x4 10-wheel Sand Tipper Truck/heavy Duty Tipper Truck
2014 SINOTRUK 6x4 10-wheel Sand Tipper Truck/heavy Duty Tipper Truck
US$ 38,000 - 55,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Drive Wheel:
6x4
Capacity (Load):
21 - 30t
Horsepower:
251 - 350hp
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
The Side Lift Dump Trailer of CIMC RuijiangUS$ 33,000 - 43,000MOQ: 1 Piece -
Sales! 5.4m BeiBen Dump Truck Was on Sale!US$ 40,000 - 45,000MOQ: 1 Piece
-
10-15 Ton 4x2 180hp JAC Dump Truck/Tipper TruckUS$ 23,000 - 25,000MOQ: 1 Unit
-
JAC 6X4 25ton 10 Wheel Dump Truck/Tipper TruckUS$ 46,000 - 47,000MOQ: 1 Unit
-
Youngman 6x4 Dump Truck/heavy Tipper TruckUS$ 40,000 - 50,000MOQ: 1 Unit
Drive Wheel
6x4
Capacity (Load)
21 - 30t
Horsepower
251 - 350hp
Condition
New
Transmission Type
Manual
Emission Standard
Euro 2
Fuel Type
Diesel
Gross Vehicle Weight
25000
Place of Origin
Anhui, China
Brand Name
CIMC RUIJIANG
Model Number
WL3217Z, ZZ3257N3647A
Dimensions (L x W x H) (mm)
9500*2500*3500, 8214x2496x3450
Company Information
CIMC RUIJIANG is a special vehicle manufacturer that belongs to CIMC group and is located in Wuhu, Anhui province. The company possesses assets worth of 160 million US Dollars with total area of 330000 square meters; the plant area encompasses approximately 90000 square meters. We have international advanced production lines for concrete mixers, powder tankers, liquid tank trucks, aluminum alloy tank trucks, dump trucks, semi-trailers. The company produces more than 300 varieties of special vehicles of more than 10 series. CIMC RUIJIANG has won a lot of titles: “National Hi-tech Enterprise”, “National Torch Plan Enterprise”, “The Famous Brand of Anhui Province”, “Anhui Province Quality Award” etc. and owns more than 600 national patents.
Product Description
| 2014 SINOTRUK 6x4 10-wheel sand tipper truck | |||||
| Truck Model | ZZ3257N3647A | ||||
| Truck Brand | SINOTRUK –HOWO | ||||
| Driving Style | Left Hand Driving | ||||
| Dimension(Lx W x H)(unloaded(mm) | 8214x2496x3450 | ||||
| Cargo body size (L*W*H, mm) | 5400x2300x1500 18.63m3 | ||||
| Cargo thickness(mm) | Bottom:8mm, Side:6mm | ||||
| Lift type of Carriage | Middle side | ||||
| Approaching angle/Departure angle(°) | 19/26 | ||||
| Overhang(front/rear) (mm) | 1500/1739 | ||||
| Wheel base (mm) | 3625+1350 | ||||
| Max speed(km/h) | 75 | ||||
| Maximum gradeability (%) | 40 | ||||
| Minimum ground clearance(mm) | 314 | ||||
| Minimum turning circle (m) | 20 | ||||
| Curb weight(kg) | 12290 | ||||
| Loading Weight(kg) | 25000 | ||||
| Fuel tanker capacity (L) | 300 | ||||
| Fuel consumption(L/km) | 28L/100 km | ||||
| Clutch | Single-plate dry clutch Φ430mm | ||||
| Engine Model | Fuel type | Diesel | |||
| Horse Power, max(kw/rpm) | 336HP,247/2200 | ||||
| (Steyr technology, made in China | Emission | EURO II | |||
| Model | WD615.96,water-cooled,four strokes,6 cylinders in line with water cooling , directly injection | ||||
| Bore | 126mm | ||||
| Stroke | 130mm | ||||
| Compression ratio | 29.8hp/l | ||||
| Specific fuel consumption | 195g/kwh | ||||
| Transmission | Model | HW15710,10 forwards and 2 reverse | |||
| Brake system | Service brake | Dual circuit compressed air brake | |||
| Parking brake | spring energy, compressed air operating on rear wheels | ||||
| Auxiliary brake | Engine exhaust brake | ||||
| Steering system | Model | ZF8098 hydraulic steering with power assistance | |||
| Front axle | HF9 , Steering with double T-cross section beam | ||||
| Rear axle | HC16, Pressed axle housing, central double reduction with differential locks between axles and wheels | ||||
| Color | Optional (White ,Red ,yellow ) | ||||
| Tyre | 12.00-20 | ||||
| Electrical system | Battery | 2X12V/165Ah | |||
| Alternator | 28V-1500kw | ||||
| Starter | 7.5Kw/24V | ||||
| Cab | HOWO76 cab, single sleeper with air conditioner, all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers | ||||

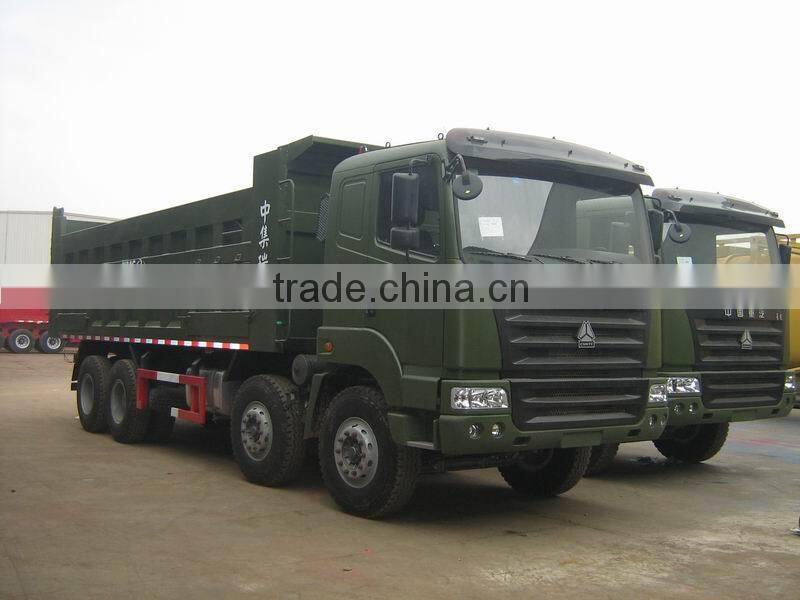

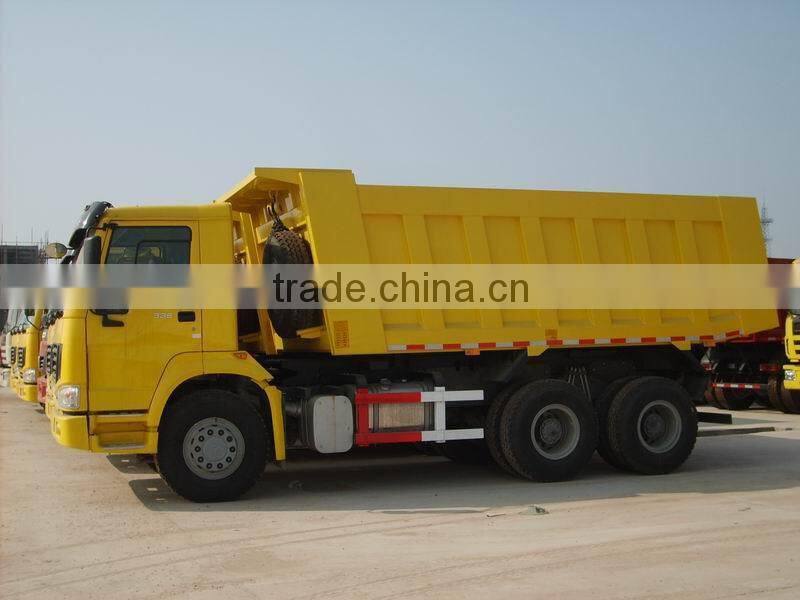

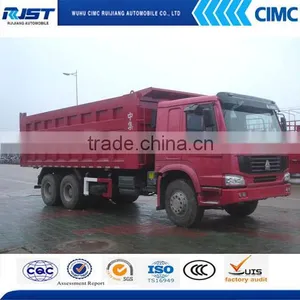

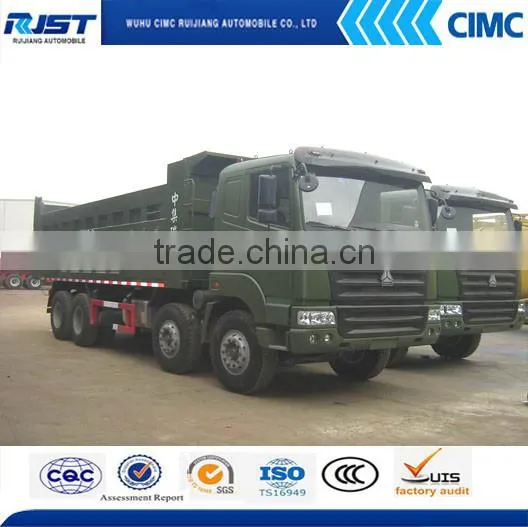

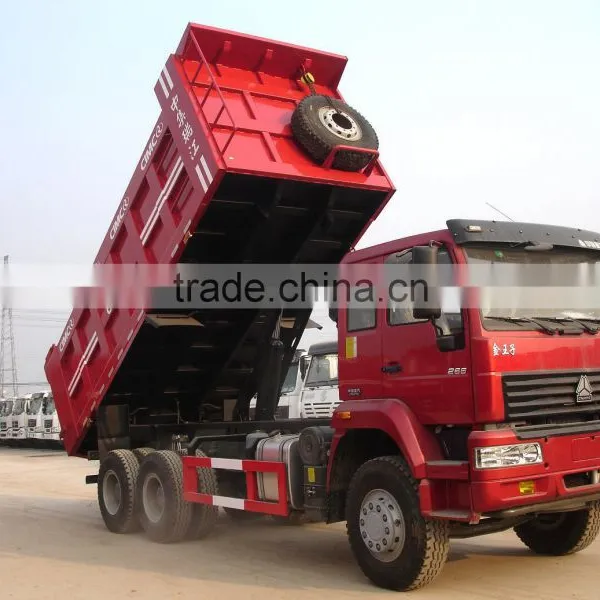

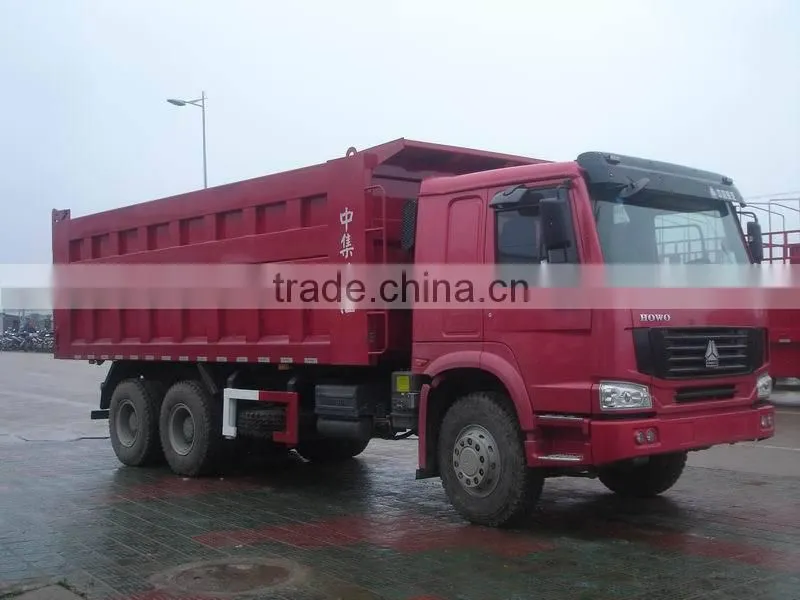

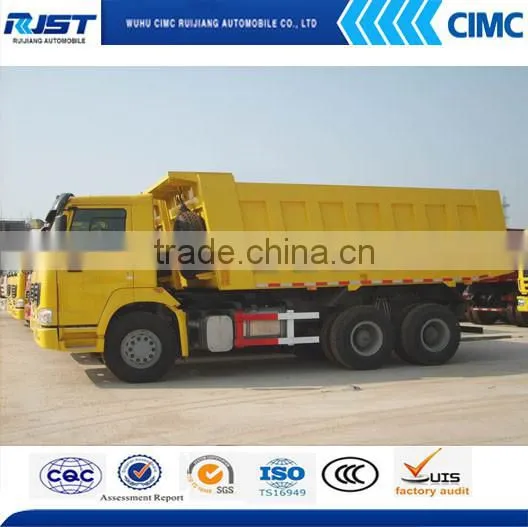

Detailed Images
