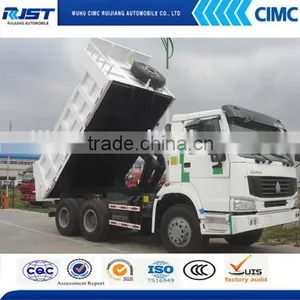

Sino dump truck /HOWO dump truck, 6x4, China new dump truck price

Model

   2015 New 6x4 Sinotruk Howo dump truck 20tons lorry dump truck HOWO 10wheels SINOTRUK used sino trucks

Drive model

4X2 6X4 8X4 6X2

Vehicle Main Dimensions

(L x W x H)mm

8500*3300*3670

Wheel base (mm)

3800+1500

Wheel track (front/rear) (mm)

2750/2520

Approach/Departure angle(°)

32/40

Weight in KGS

Curb Weight

52000

G.V.W.

75000

Max. driving speed(km/h)

50

Engine

Brand

Sinotruk

Model

WD615.47

Type

4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse Power(HP)

370HP

Displacement

9.726L

Max output power

273/2200KW

Emission standard

Euro Ⅱ

Gearbox

HW19710, 9 forwards & 2 reverse

Clutch

Reinforced diaphragm clutch, diameter 430mm

Steering Gear

ZF 8098,power steering, hydraulic steering with power assistance

Fuel tank (L)

350

Tire

14.00-24  All steel radial tire , 11 pieces including one spare tire

Brakes

Service brake: dual circuit compressed air brake

Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust valve brake

Dump Box

Hydraulic System

T-type middle lift or Front tipping

Dimension

5800*3100*1800

Material

Q235/Q345/610L/Q700

Tipping Angle

51 degree
