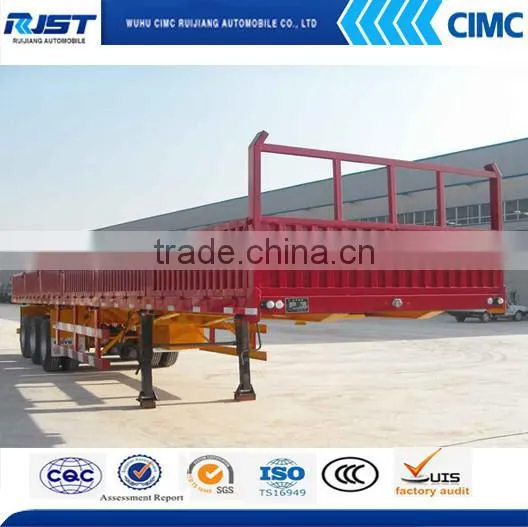

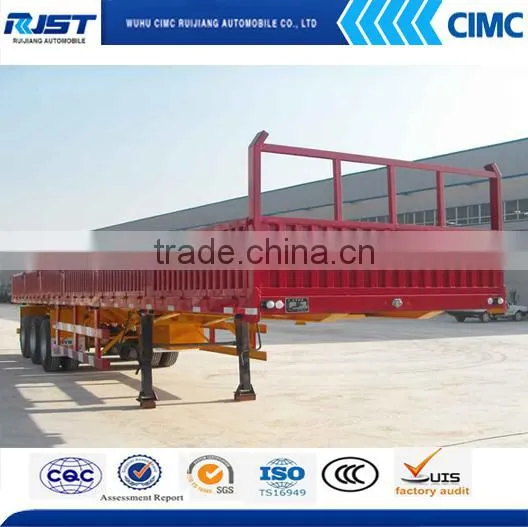

Help Center3 Axles 40 Tons Flatbed Side Wall Bulk Cargo Trailer
Related Products
-
40ft Skeleton Container Transport Trailer With 2 AxlesUS$ 5,000 - 10,000MOQ: 1 Unit -
CIMC Two Axle Skeletal Semi TrailerUS$ 7,800 - 8,000MOQ: 1 Set
-
40ft Skeleton Container Transport TrailerUS$ 8,800 - 10,000MOQ: 1 Set
-
Wood Logging Trailer In Truck Semi Trailer/Wood Transportation Semi TrailerUS$ 10,000 - 30,000MOQ: 1 Set
-
Low Price CIMC Factory 40ft 20ft Container Skeleton Flatbed Semi TrailerUS$ 10,000 - 150,000MOQ: 3 Units
Painting
Before the painting, surfaces and accessories are made smooth and then cleaned with a mixture of chemicals;
Steel blasting completely;
Painting color is according to customer’s wish.
Shipped by containers in SKD model, two units in one 40HQ container, you only need to do a little assembly work at the destination to complete the vehicles or shipped by bulk vessel with whole unit.
| 3 axles 40 tons flatbed side wall bulk cargo trailer | |
| Trailer Model | 40ft 3 axles side wall bulk cargo semi trailer |
| Overall Dimension(Lx W x H)(mm) | 13000*2500*2300(mm) |
| Height of side wall plate | 600mm |
| Function | Steel stuff, packed cargo or other cargo |
| Tare Weight(KG) | 6350KGS |
| Total Weight(KG) | 40000KGS |
| Axle Brand | FUWA axle(chinese best brand) |
| Axle Number | Three or two |
| Wheelbase(mm) | 6260+1310+1310(mm) |
| Suspension system | Common Mechanical suspension |
| Steel Spring | 8/8/8 leaf spring suspension |
| The material of Main beam | The height of the beam is 450/500 mm, |
| upper plate is14mm,down plate is 16mm, | |
| middle plate is 8mm. | |
| Thickness of side wall plate is 1.5mm. | |
| Platform plate | 3mm Diamond plate |
| Container Twist Locker | 12 pieces |
| Tire Type and quantity | 12.00R22.5 12units |
| King Pin | 50mm or 90mm |
| Spare Wheel Bracket | 2 picecs |
| Tool Box | 1 Standard |
| Landing Gear | 28ton |
| Brake system | Dual Line braking system ,none ABS. |
| Brake air chamber | 4 or 6 big double chamber |
| Electrical system | 1. Voltage: 24v 2. Receptacle: 7 ways |
| (7 wire harness) | |
| Tail lamp with turn signal, brake light & reflector, | |
| side lamp etc. | |
| One set 6-core standard Cable. | |
| Side Guard | According to customer’s requirement |
| Painting | Color by customer’s requirement |
| Packing | Polish with wax before shipping |
1. Why you choose us?
CIMC RUIJIANG is a special vehicle manufacturer that belongs to CIMC group .We have more than 10 years produce experience.And our company produces at least 300 varieties of special vehicles of more than 10 series.
2. How to trust us?
Following the business philosophy of our company which is“your partner for modern transportation”,the sales network of CIMC RUIJIANG has been covering China mainland and global markets including Asia, Africa, South America, East Europe, etc. and welcome visits our company at any time.
3. How about the delivery time?
Most of our trucks are all have in stock ,We can delivery to you within 7 days, if specially ordered , we always need around 30 days for production.
4.How do you ensure the quality of product?
Our Factory is standard production workship,got ISO CCC BV Certification,our workers are well trained. Our very product under goes a scrutinizing inspection process.
