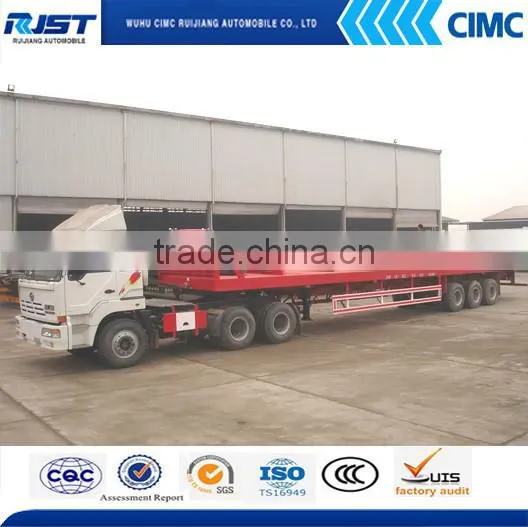

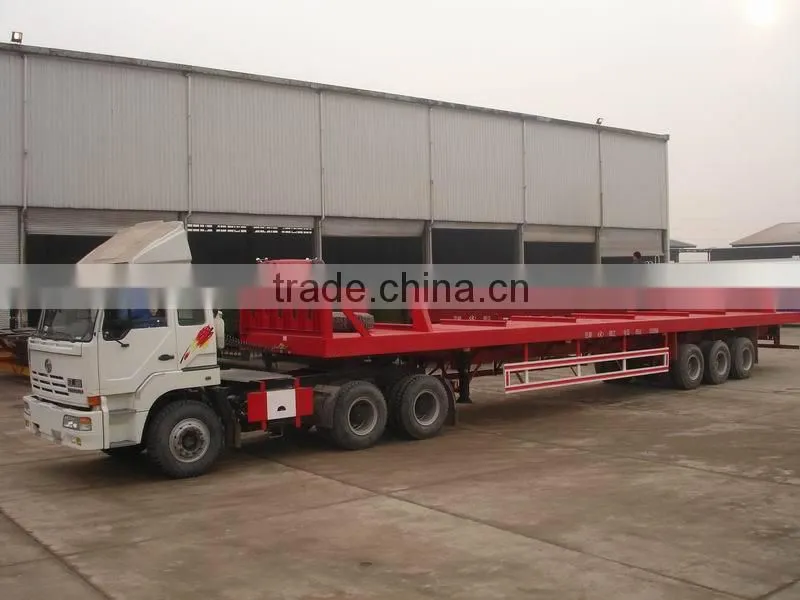

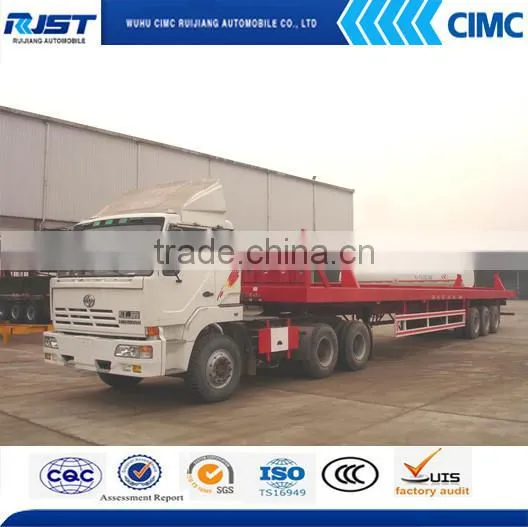

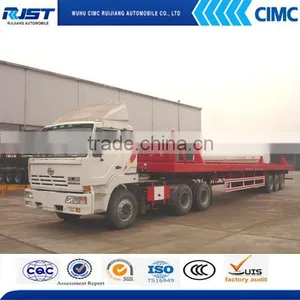

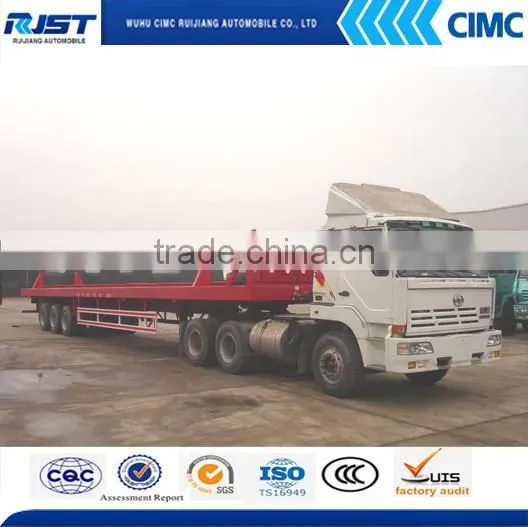

| CIMC logging semi trailer for transporting log /wood/timber/steel | |||||||||
| Dimension | |||||||||
| Trailer Model | WL9403TDPZ | ||||||||
| Function | 2*20ft and 1*40ft container | ||||||||
| Overall dimensions: (mm) | 12500*2500*1620(mm) | ||||||||
| Max payload(kgs) | 50000kg | ||||||||
| Curb weight(kgs) | 6500kg | ||||||||
| Platform | 3mm steel checkered plate | ||||||||
| Main Beam | The height of the beam is 500mm,upper plate is 14mm,down plate is 16mm,middle plate is 8 mm,the rear part 1 meter can be cut down. | ||||||||
| Side Beam | 14# channel steel | ||||||||
| Running constructon | |||||||||
| Axle | Fuwa 13T | ||||||||
| Axle Number | 3 pieces | ||||||||
| tyre | 12R22.5 | ||||||||
| Number of Tyre | 12 pieces | ||||||||
| rim | 9.0-22.5/12 | ||||||||
| Twist lock | 12 pieces | ||||||||
| leaf-spring | 90width*10pieces*13mm/6 sets | ||||||||
| Kingpin | interchangeable 90# /50# | ||||||||
| Landing gear | JOST 28T | ||||||||
| suspension | Mechanical suspension | ||||||||
| Tool box | 1 | ||||||||
| Braking system | none ABS system | ||||||||
| Electrical system | 24 voltage | ||||||||
| 7 ways(7 wire harness) | |||||||||
| Light | LED type | ||||||||
| Packing | Nude,Polish with Wax before Shipment | ||||||||
| Painting | Color is optional | ||||||||
| Remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. | ||||||||
Painting
Before the painting, surfaces and accessories are made smooth and then cleaned with a mixture of chemicals; Steel blasting completely;
Painting color is according to customer's wish.
Package
Shipped by containers in SKD model, two units in one 40HQ container, the end of the trailer should be cut and you need assemble at the destination or shipped by bulk vessel with whole unit. )
1. Why you choose us?
CIMC RUIJIANG is a special vehicle manufacturer that belongs to CIMC group .We have more than 10 years produce experience.And our company produces at least 300 varieties of special vehicles of more than 10 series.
2. How to trust us?
Following the business philosophy of our company which is“your partner for modern transportation”,the sales network of CIMC RUIJIANG has been covering China mainland and global markets including Asia, Africa, South America, East Europe, etc. and welcome visits our company at any time.
3. How about the delivery time?
Most of our trucks are all have in stock ,We can delivery to you within 7 days, if specially ordered , we always need around 30 days for production.
4.How do you ensure the quality of product?
Our Factory is standard production workship,got ISO CCC BV Certification,our workers are well trained. Our very product under goes a scrutinizing inspection process.
