Help CenterChina Best Selling 3 Axles 40ton Cargo Semi Trailer
Related Products
-
China Best Selling 3 Axles 40ton Cargo Semi TrailerUS$ 12,000 - 15,000MOQ: 2 Units -
Tri-Axles Trailer With Side Wall For SaleUS$ 12,500 - 16,500MOQ: 2 Units
-
China Best Selling 3 Axles 40ton Cargo Semi TrailerUS$ 12,000 - 16,500MOQ: 2 Units
-
3 Axles Cargo Trailer With Side Panels for Bulk Cargo TransportationUS$ 10,000 - 14,500MOQ: 2 Units
-
CIMC Tri- Axles Fenced Semi Trailer for Livestock / Cow / Cattle TransportationUS$ 13,000 - 18,000MOQ: 2 Units
Painting
Before the painting, surfaces and accessories are made smooth and then cleaned with a mixture of chemicals;
Steel blasting completely;
Painting color is according to customer’s wish.
Shipped by containers in SKD model, two units in one 40HQ container, you only need to do a little assembly work at the destination to complete the vehicles or shipped by bulk vessel with whole unit.

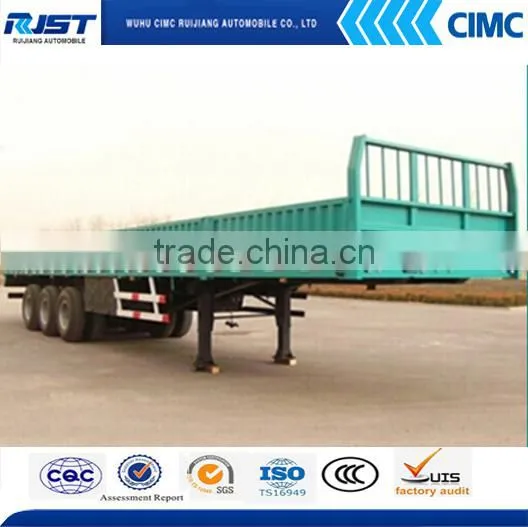

| China best selling 3 axles 40ton cargo semi trailer | |
| Trailer Model | 3axles 40ton semi trailer with side wall |
| Overall Dimension(Lx W x H)(mm) | 12500*2500*1550mm |
| Function | transport merchandise, like juice packs, rice etc. |
| Thickness(mm) | Bottom: 3mm, Side: 1.5mm |
| Loading Weight( KG) | 40000 |
| Axle Brand | FUWA 13TON Axle |
| Axle Number | Three |
| Suspension system | Standard Mechanical suspension |
| Steel Spring | 10/10/10 leaf spring suspension |
| The material of Main beam | The height of the beam is 500 mm, upper plate is14mm, |
| down plate is 16mm,middle plate is 8mm. | |
| Tire Type and quantity | 12R22.5 12units |
| Traction Pin | 90mm |
| Spare Wheel Bracket | 2 pieces |
| Tool Box | 1 Standard |
| Landing Gear | Standard brand 28ton external |
| Brake system | Dual Line braking system |
| Brake air chamber | Six big double air chamber |
| Electrical system | 1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)Tail lamp with turn signal, brake light & reflector, side lamp etc.One set 6-core standard Cable. |
| Side Guard | According to customer’s requirement |
| Painting | Blue |
| Packing | Polish with wax before shipping |
1. Why you choose us?
CIMC RUIJIANG is a special vehicle manufacturer that belongs to CIMC group .We have more than 10 years produce experience.And our company produces at least 300 varieties of special vehicles of more than 10 series.
2. How to trust us?
Following the business philosophy of our company which is“your partner for modern transportation”,the sales network of CIMC RUIJIANG has been covering China mainland and global markets including Asia, Africa, South America, East Europe, etc. and welcome visits our company at any time.
3. How about the delivery time?
Most of our trucks are all have in stock ,We can delivery to you within 7 days, if specially ordered , we always need around 30 days for production.
4.How do you ensure the quality of product?
Our Factory is standard production workship,got ISO CCC BV Certification,our workers are well trained. Our very product under goes a scrutinizing inspection process.
