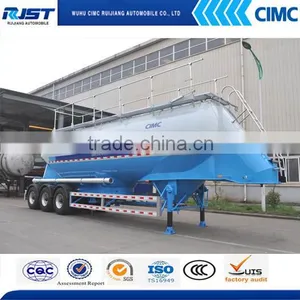

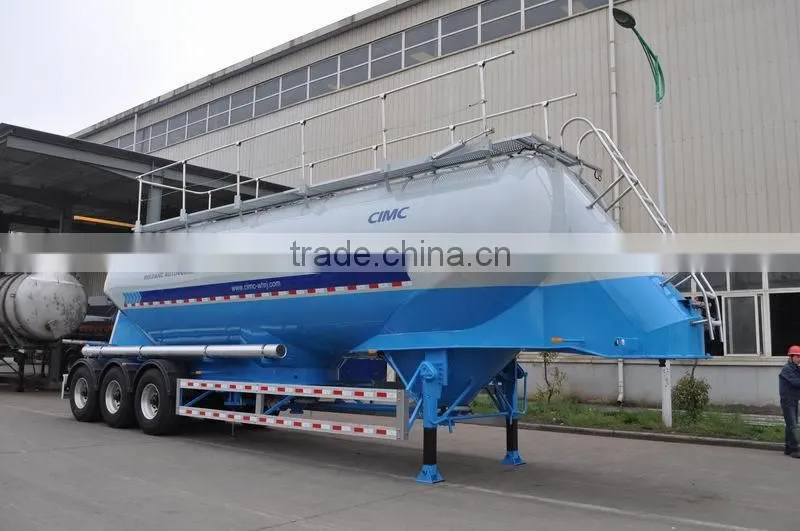

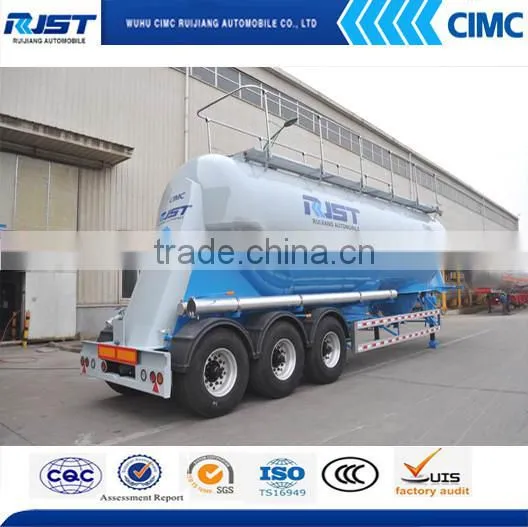

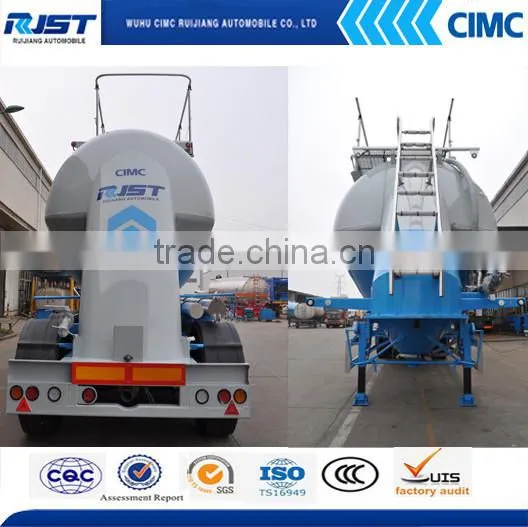

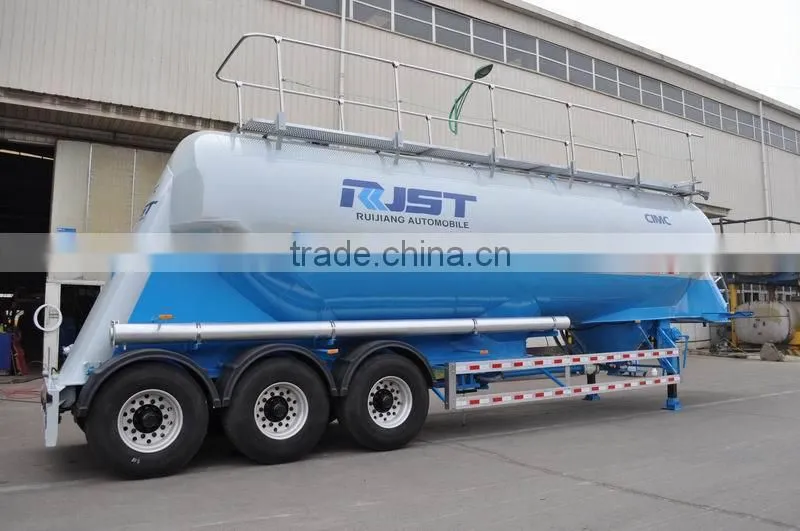

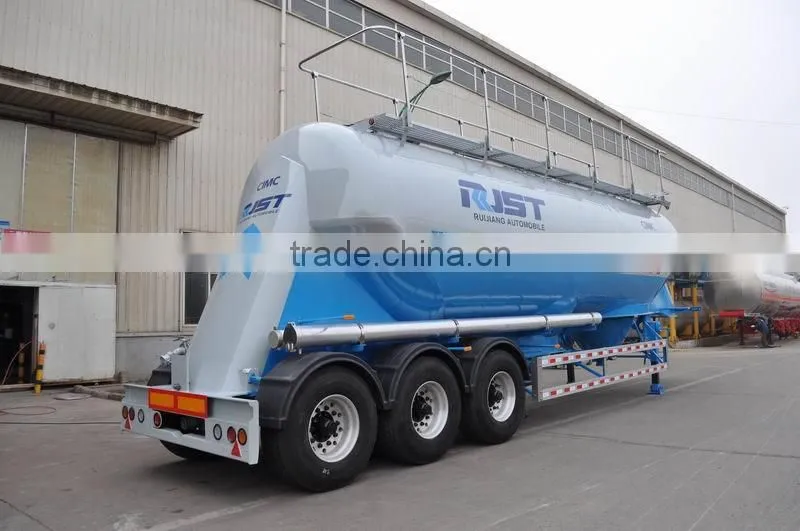

Help CenterCIMC Aluminum Alloy Vertical Powder Tank Semi Trailer/powder Tank Trailer/bulk Cement Tank Trailer
Related Products
-
60CBM Wheat Flour 3 Axle Truck Trailer/Bulk Powder and Particle Tank Trailer Bulk Cement Semi-trailerNegotiableMOQ: 1 Perch -
35M3 Cement Tank Semi TrailerNegotiableMOQ: 1 Unit
-
Hot Sale !30M3 Cement Tank Semi TrailerUS$ 19,000 - 20,000MOQ: 1 Unit
-
Bulk Cement Tank Semi-trailer 35-71cbm for SaleUS$ 20,000 - 23,500MOQ: 1 Unit
-
60000L Cement Bulk Powder Tank Semi Trailer Bulk Cement Tank Semi-trailerUS$ 25,000 - 27,000MOQ: 1 Set
| CIMC Aluminum Alloy Vertical Powder Tank Semi Trailer | |
| Overall information | |
| Tare weight | 6000kg |
| Effective Volume | 42m3 |
| Loading capacity | 42ton or other it‘s according to the medium |
| Dimension | 12260×2500×3995(mm) |
| Axle Span | 8120+1310+1310(mm) |
| Compartment | 3 or accoding to the customer's requirement |
|
shape |
V type |
| Tank material | Aluminum Alloy |
| Tank thickness | t3.5 |
| Manhole cover | 3 sets or accoding to the customer's requirement |
| Chassis | |
| Axle | Fuwa axle12ton type, 3 units |
| Rim | Magnalium;13.00*22.5 |
| Suspension | Common leaf spring suspension or air Suspension |
| Tire | 425/65R22.5 6units (triangle or double coin brand) |
| Kingpin | 50(2inch)#or 90(3.5inch)# bolt type |
| Landing gear | 28ton type |
| Color | white, yellow,red ,blue or customized |
| Braking system | 4S/2M ;T30/30 spring brake chamber |
| Others | |
| Painting | Sand blasting to clean rust, color will be according to customer’s demand. |
| Accessories | |
| Tool box | One piece |
| Electrical system | Standard 24v wire, 7 way input |
| Spare tire carrier | 1 diameter check valve |
a. High transportation speed
b. Low residual rate
c.Wider transportation scope
1.Discharged by both gravity and external power, residual rate is much lower. With wide transportation scope, it can not only convey powdery material but also granular materials with larger diameter.
2.Tank Material: carbon steel, stainless steel, aluminum alloy, etc..
3.With low residual rate, it is a good choice for transporting foodstuffs such as flour and high-requirement chemical materials.
1. Why you choose us?
CIMC RUIJIANG is a special vehicle manufacturer that belongs to CIMC group .We have more than 10 years produce experience.And our company produces at least 300 varieties of special vehicles of more than 10 series.
2. How to trust us?
Following the business philosophy of our company which is“your partner for modern transportation”,the sales network of CIMC RUIJIANG has been covering China mainland and global markets including Asia, Africa, South America, East Europe, etc. and welcome visits our company at any time.
3. How about the delivery time?
Most of our trucks are all have in stock ,We can delivery to you within 7 days, if specially ordered , we always need around 30 days for production.
4.How do you ensure the quality of product?
Our Factory is standard production workship,got ISO CCC BV Certification,our workers are well trained. Our very product under goes a scrutinizing inspection process.
