Environment Equipment Marine Zinc Die Cast Cylinders Cam Lock
US$ 7 - 7.9
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
Lipson
Model Number:
CLM-718
Payment & Shipping
Payment Methods:
Port of Shipment:
Kaohsiung Port Taiwan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Coin Lockers Industrial Machinery tv Stand Storage Cam LockUS$ 3.5 - 4.5MOQ: 100 Pieces -
Engine Dynamo Power Supply Systems Beverages Vending Machine Cam LockUS$ 36 - 45MOQ: 100 Pieces
-
Hot Sale Specialty Vehicle Adjusdable Toggle LatchUS$ 5 - 6.8MOQ: 100 Pieces
-
Hot Selling Appliances 90 Degree Bent Cam LockUS$ 6.8 - 7.2MOQ: 100 Pieces
-
Competitive Price Packaging Machine 90 Degree Bent Cam LockUS$ 2 - 2.8MOQ: 100 Pieces
Place of Origin
Taiwan, China
Brand Name
Lipson
Model Number
CLM-718
Environment Equipment Marine zinc die cast cylinders cam lock
Product Description
Description for zinc die cast cylinders cam lock
1.Material: Zinc die-cast body with a zinc plated steel rear clamp plate & screw.
2.Finish: Powder coated--Black.
3.Application: Control panel, distribution panel, Marine, rail and tramcar,
technical furniture and electrical cabinets, ship equipment.
4.Other key combinations available on request.
5.Type: lever compression panel latch lock

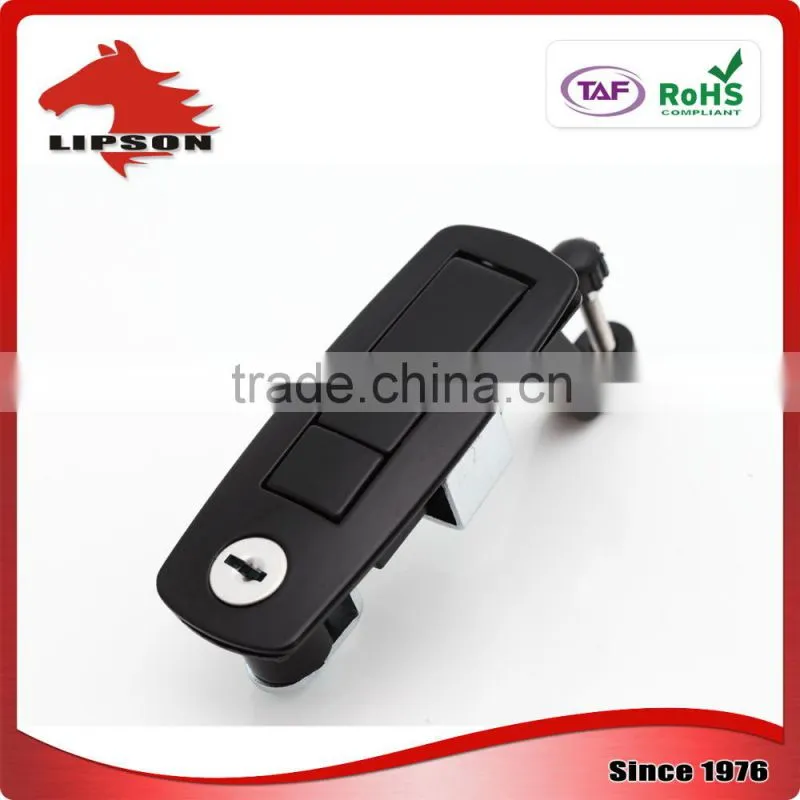

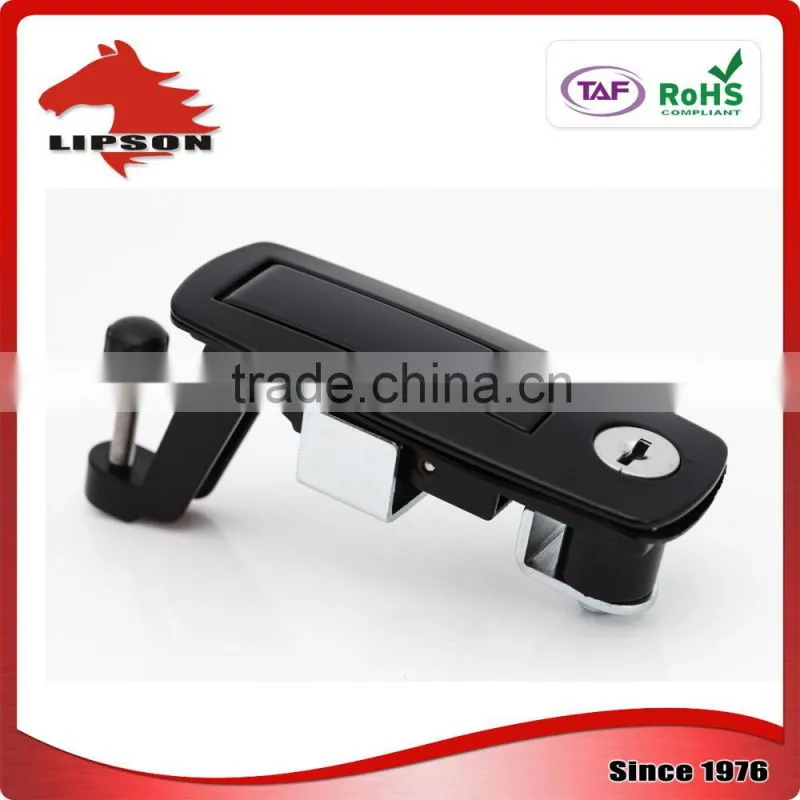

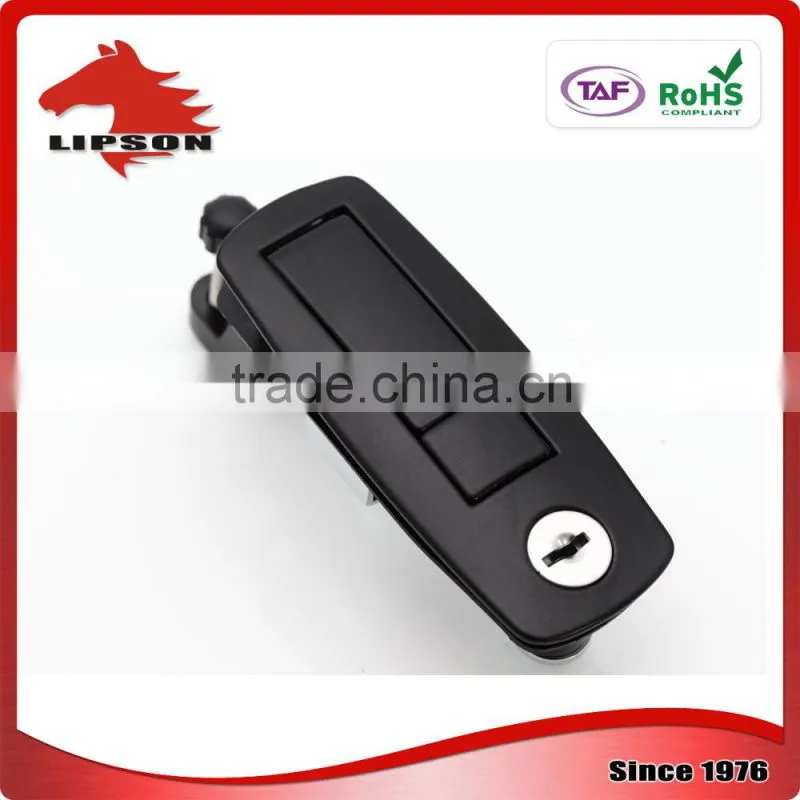

Picture of zinc die cast cylinders cam lock:
More information of zinc die cast cylinders cam lock:
| Product Name | industrial cabinet lock,sealed compression latch,Sealed Lever Latch lock,Trigger latch, compression lock latch, Lever Latch, compression cabinet latch, compression panel lock, Lever actuated compression latch, sealed lever latches, sealed lever lock, flush style compression latch, compression cabinet sealed lever latch, industry compression latch, industry electric compression latch,compression latch zinc alloy |
| Advantage | 1) Push-button release pops handle up for convenient use |
| 2) Compressive action pulls door tight without rubbing action or wear on pawl or frame. | |
| 3) Mounting hardware accommodates a wide variety of door thicknesses | |
| 4) Provides from 31 mm to 48 mm grip-range adjustment | |
| 5) Threaded adjusting screw and jam nut make it easy to provide necessary grip adjustments over time | |
| 6)Fine adjustment of the grip position can be made with the adjustment screw. | |
| 7)Rubber bumper model delivers enhanced compression with reduced vibration, wear, and noise | |
| 8)Installs easily in single rectangular hole | |
| Feature | Push button action with the facility to addjust compression force via a threaded striker bolt.Environmental sealing is achieved by sealing the mounting screw threads |
| Material and Finish | Black powder coated Zinc Alloy Die Cast body with zinc plated internal components. |
| Accessary Includes | Supplied with two keys along with a zinc plated steel clamp plate. |

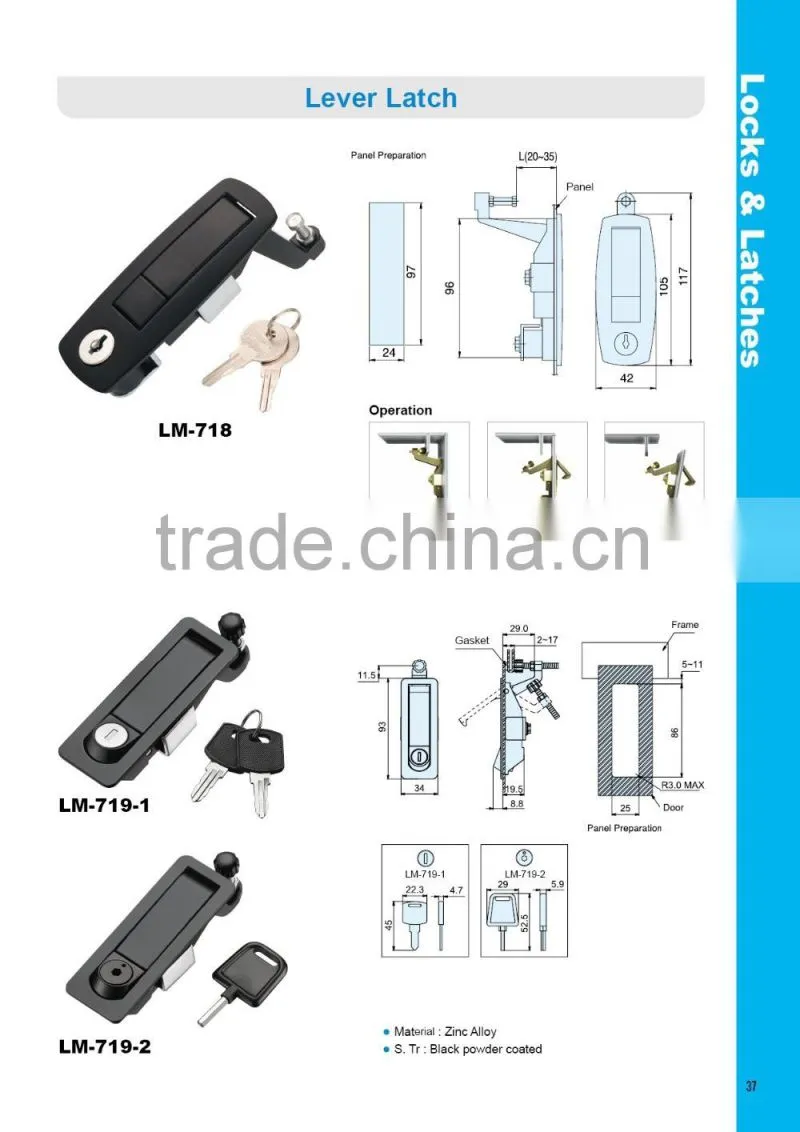

| Similar products | LM-719-1, LM-719-2, LM-718, LM-718-2B |
| Usage and Industry Applications | Automotive/Trucks, control panel, Construction Equipment, Off-Highway, Farm Equipment, distribution panel, kitchen furnishings, electronic control box, cubicle and machinery door,Electronic Enclosures,Industrial Machinery, Machine Tools, and Metal Cutting |
| Website | .tw |
| Sample | Free sample,Freight amount should be paid by customer. |
| MOQ | 100 PCS |
| Certification | ISO9001:2008 |
| Payment | T/T, L/C, Paypal |
| OEM/ODM orders are accepted | |
