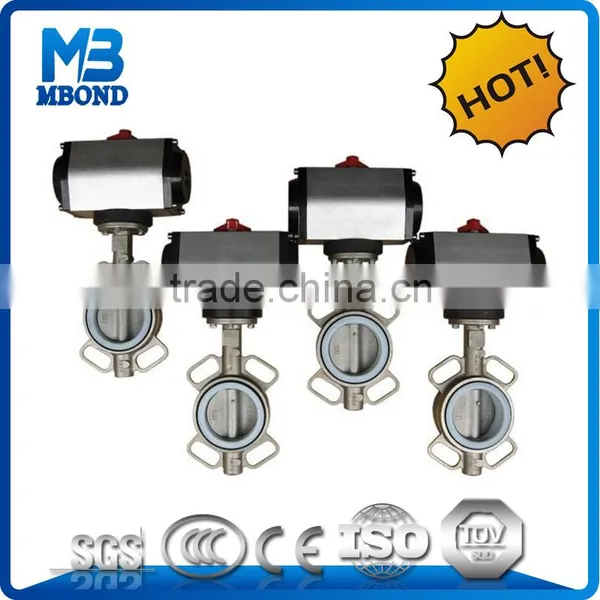

Custom industry cast iron butterfly valve
Custom industry cast iron butterfly valve details
1. Pneumatic Buttefly Valve Technical Specification:
Diameter: 2"-40"
Pressure: PN10-100, 150LB-1500LB
Temperature : -55℃~+200℃
Medium: Air, water, waste water steam, gas, oil productcs, etc
Operation way: Handwheel, gearbox, electric, pneumatic
2. Pneumatic Buttefly Valve Standards:
Design and manufacturer: JB/T8691-1998
Flange connection: :GB/T9113.1-2000 JB/T79-94
Face to face: GB/T15188.2-94
Test and inpection: GB/T13927-92
3. Pneumatic Buttefly Valve Main Parts Materials:
Part name |
Material |
Body |
Cast iron, ductile cast iron, carbon steel, stainless steel, lined with rubber, PTFE, etc |
Disc |
Cast iron, ductile cast iron, carbon steel, stainless steel, etc |
Seal ring |
Cast iron, ductile cast iron, alloy steel, stainless steel |
Stem |
45#, 2Gr13, stainless steel |
Packing |
O ring, flexible graphite |
4. Pneumatic Buttefly Valve Properties:
Nominal diameter |
DN(mm) |
50~2000 |
||
Nominal pressure |
PN(Mpa) |
0.6 |
1.0 |
1.6 |
Test pressure |
Shell |
0.9 |
1.5 |
2.4 |
Seal |
0.66 |
1.1 |
1.76 |
|
Air seal |
0.6 |
0.6 |
1.76 |
|
Medium |
Air, water, waste water steam, gas, oil productcs, etc |
|||
Operation way |
Handwheel, gearbox, electric, pneumatic |
|||
Custom industry cast iron butterfly valve factory
Changzhou MBOND Machinery Company Limited which was established in 2007, is located in Changzhou Wujin High-tech Zone, Jiangsu Province, China. Our factory has more than 100 employees and 20,000 square meters and owns more than 200 machines, including advanced CNC Machining Center, Milling Machine, Grinding Machine, Wire cut Electrical Discharge Machine, Gear Machine, etc.
MBOND is specialized in the manufacturing of mechanical production. The company mainly produces all kinds of reducer parts (output shaft, optical axis, end closure, fastening piece, gear, pendulum piece, etc) and large-scale high-end textile machinery components (high-end thin wall parts, etc).
MBOND provides numerical control processing, CNC lathe processing, precision parts processing, turning processing. According to the actual situation, we could map processing custom-related products to solve the difficulties of customers, meet the needs of the customers. We have complete product specifications, strong technical force, advanced production technology and perfect testing means.MBOND has passed ISO9001: 2008 international quality management system certification.
Custom industry cast iron butterfly valve FAQ
1)Q:Can you complete the production according our drawings?
A: Yes,we provide Customized OEM/ODM Service.we manufacture products as customer's design.
2)Q:How can you guarantee my prepayment is safety?
A:If the product is not qualified, we will return the advance payment to you.You can also choose letter of credit, Alibaba Trade Assurance,To ensure the advance payment 100% security
3)Q:What shall we do if we have no drawings?
A:1,Please send your sample to our factory,then we can copy or provide you better solutions.
2,Please send us pictures or drafts with dimensions(Length,Hight,Width),CAD or 3D file will be made for you if placed order.
4)Q:How to guarantee the quality of your products?
A: If you do not rest assured the quality of our products, you can come inspection before shipment , or entrust the third party inspection company to come to our factory for inspection (for example, SGS, TUV, BV...), after passing the test we arrange the shipment of the goods.
5)Q:What can you do if i do not satified with your finished products?
A: You can choose productive again by us or refund the payment.
6)Q:What should you do if we receive defective product?
A:If you find any defective accessories in the first order, we will give you the new parts for free to replace in the next order.
7)Q:Can we get some samples before mass production?
A:Yes,we will send some sample to you for test before mass production.
