HL-209-1R-S Industrial Cabinet Adjustable Hinge Angle Adjustable Hinge

Name: HL-209-1R-S Industrial Cabinet Adjustable Hinge Angle Adjustable Hinge
Brand: Lipson
SKU: 119421307
Availability: InStock

US$ 5.4 - 6.3 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Taiwan, China

Brand Name:

Lipson

Model Number:

HL-209-1R-S cabinet adjustable hinge

Lipson Enterprise Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Taiwan Kaohsiung Port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Taiwan, China

Brand Name Lipson

Model Number HL-209-1R-S cabinet adjustable hinge

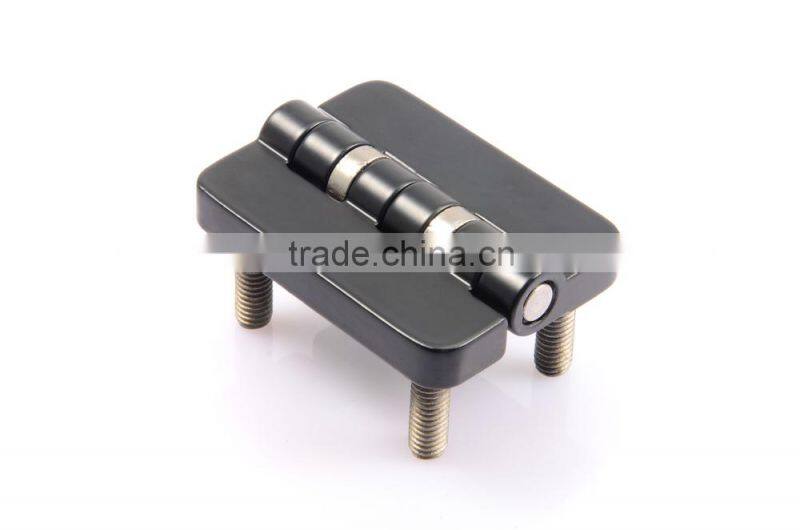

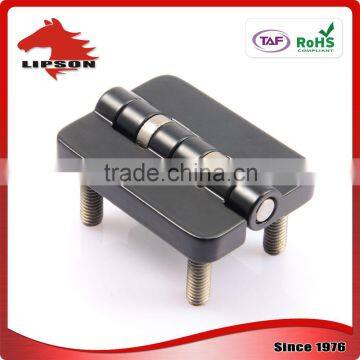

HL-209-1R-S industrial cabinet adjustable hinge angle adjustable hinge

Product Description

Product description for friction adjustable position hinge

torque position control friction hinge
Material and finish
- Leaves: zinc alloy
- Pin: 304 SUS
Prevailing torque of hinge
- Maximum prevailing torque of hinge
- HL-209-1R-L/HL-209-2R-L 47kg/cm ± 15%
- Minimum prevailing torque of hinge
- HL-209-1R-S/HL-209-2R-S 12kg/cm ± 15%
Product features and benefits
- Hinge allows users to define the level of resistance
- Once adjusted the positioning torque stays consistent throughout the full range of motion and will hold doors steady in any position
Installation notes mount with M6 (screws not supplied)
Industry applications bus, construction equipment, off-highway vehicles, farm equipment, electronic enclosures, food equipment, furniture, HVAC, industrial enclosures, industrial machinery, machine tools, metal cutting, marine, and medical

HL-209-1R-S industrial cabinet adjustable hinge angle adjustable hinge

Product Name	Torque Hinge, Adjustable Torque Hinge, adjustable door hinges, angle adjustable hinge, adjustable cabinet hinges, adjustable exterior door hinge, adjustable torque position control hinge, Adjustable Friction Hinges, adjustable position hinge, torque adjusting hinge, adjustable heavy-duty hinge, torque position control hinges, adjustable torque position control hinges
Feature and Advantage	1) Hinge articulates and holds a panel in position
	2) Porviding constant resistance thoughout the entire range of motion, enabling users to easily position doors, display screens and other mounted components and hold them securely at any desired angle.
	3) Zero-drift and backlash, even under vibration or dynamic loads
	4) Robust constrcution suitable for indoor and outdoor use
	5) Easy integration and simple installation without added cost.
Available Options	Contact us for additional torque strength.
Size	54mm*40.5mm
Material	Zinc Alloy Body, Stainless Steel pins. Black powder coated.
Installation Notes	Mount with M6 screw. Screws not Supplied.
Max.prevailing torque of hinge	HL-209-2R-L is 47kg.cm, and HL-209-2R-S is 12kg.cm
Similar products	HL-229-1A, HL-229-1B, HL-229-3A, HL-229-3B, HL-209-1R, HL-209-2R.
Lipson Website	.tw
Package	100CS/CTN Carton size:3423.521cm
Sample	Free sample,Freight amount should be paid by customer.
MOQ	100 PCS
Certification	ISO9001:2008
Payment	T/T, L/C, Paypal
OEM/ODM orders are accepted
