Specifications
2*12w white double head cob led grill light1.Cold forging heat sink
2.Black and white painted shell
3.Cob led.

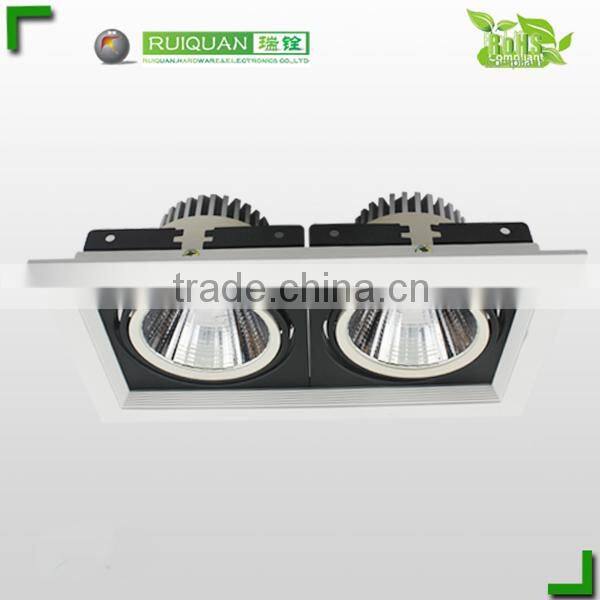

2*12w white double head cob led grill light
Grille light fixturer specification as below
| Item No.: | RQR-D0005 |
| Power: | 24w |
| Input Voltage: | AC100-240V |
| Color Temperature: | Warm white, Cool white |
| Working Temperature: | -20~60°c |
| Working Life: | 50000h |
| Application: | Indoor lighting |
| Size: | 308*169*92 mm |
| Opening Size: | 290*155 mm |
| Surface Treatment: | Painting |
Picture for 7w led grille light fixturer
LED grille light fixturer use cold forging heat sink
Comparison of LED Heat Sink Material | |||
Item |
Cold forging heatsink |
Extruded heat sink |
Die casting |
Material |
Pure AL 1070 |
AL 6063 |
ACD12 |
Thermal conductivity |
226w/m.k |
209 w/m.k |
96 w/m.k |
Surface treatment |
Anodizing |
Anodizing |
Only Painting |
Construction |
Integrated |
Separated bodies |
Integrated |
Pins thickness |
0.6mm |
1.0mm |
2.0mm |
Pins Quantity |
More |
More |
Little |
Advantage of cold forging heat sink | |||
1.Integrated cold forging heat sink use pure aluminum material, with the best heat dissipation. | |||
2. More fins and more space of heat dissipation. | |||
3. Can be anodized in any color. | |||
Below is the surface-temperature of these 3products(7w Driver) | |||
| |||
Production procedure for cold forging heatsink
