China Aluminum Cold Forging Bulb Led Fixture

China Aluminum Cold Forging Bulb Led Fixture photo-1
US$ 0.5 - 3.8 MOQ: 500 Pieces
Key Specifications
Get Latest Price
LED Light Source:
2835
Type:
Other, Bulb light
Input Voltage(V):
100-240
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
LED Light Source 2835
Type Other, Bulb light
Input Voltage(V) 100-240
Lamp Power(W) 15
Lamp Luminous Flux(lm) 900
Lamp Luminous Efficiency(lm/w) 80
Color Temperature(CCT) Pure White
Working Temperature(℃) -20, 60
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
Certification CE
Base Type E27
Place of Origin Guangdong, China
Brand Name RUIQUAN
Model Number RQ-BL8009

Specifications

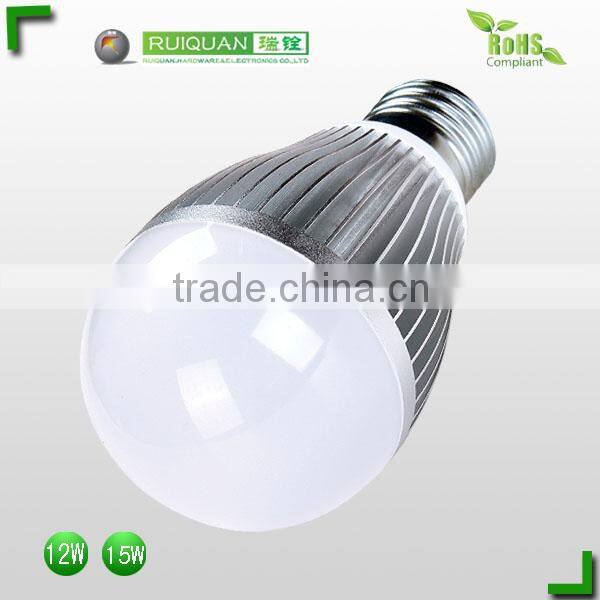

China aluminum cold forging bulb led fixture
1.Material:AL1070
2.High performance heat transfer
3.No bur and flash

China aluminum cold forging bulb led fixture
Aluminum led lightng accessories Specifications:
NameSpec.
Model No.RQ-BL8009
Diameter80mm
Height130mm
MaterialAluminum+PC
ApplicationLED BULB
Power15w
Voltage100-240V
CertificationCE,RoHS,CCC
Iterm picture



 China aluminum cold forging bulb led fixture

Comparison of LED Heat Sink Material

Item

Cold forging heat sink

Extruded heat sink

Die casting

Material

Pure AL 1070

AL 6063

ACD12

Thermal conductivity

226w/m. k

209 w/m. k

96 w/m. k

Surface treatment

Anodizing

Anodizing

Only Painting

construction

Integrated

Separated bodies

Integrated

Pins thickness

0.6mm

1.0mm

2.0mm

Pins Quantity

More

More

Little

Advantage of cold forging heat sink

1. Integrated cold forging heat sink use pure aluminum material, with the best heat dissipation.

2. More fins and more space of heat dissipation.

3. Can be anodized in any color.

Below is the surface-temperature of these 3products(7w Driver)

China aluminum cold forging bulb led fixture



Flow for cold forging heatsink

China aluminum cold forging bulb led fixture

Our Services:

1. Payment Terms: T/T, Western Union ,in advance
2.Lead Time: 7-15 day for existing storage, Otherwise negotiate.
3. Package: Blister
4. Free Samples: 1-3pcs
5. OEM ODM Service: YES
6. MOQ: 1000pcs

Company Profile

Dongguan Ruiquan Hardware Electronics Co., Ltd.  is located in Shipai Town Dongguan City, covering more than 8,400 square meters. We are dedicated to the development of electronics and LED lighting thermal solutions. With ten years of experience in R&D, production and sales of heat sinks, Ruiquan Hardware Electronics Co., Ltd has always been committed to North-South bridge heat sinks, CPU heat sinks, VGA heat sinks, liquid-cooled heat sinks, zipper fins heat sinks, heat-piped component heat sinks, cold-forging pressing heat sinks, skiving heat sinks, cross-cutting heat sinks, other heat sinks and hardware since its inception. In 2011, the company invested too much to add some CNC machines and 300T/800T hydraulic machines, fast into the industry of LED heat sink and fixtures. In April of 2012, new developed cold-forging pressing (low thermal resistance, high speed heat transportation) products met with favorable reception in domestic and overseas market. The sales have increased day by day.

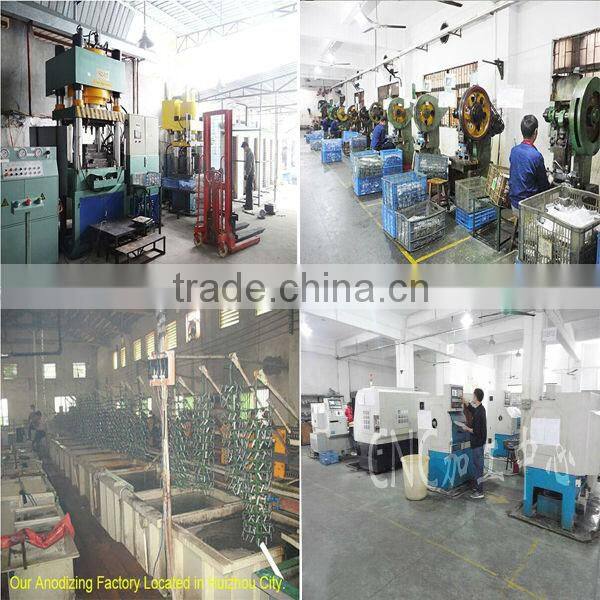

Workshop corner and Certification
China aluminum cold forging bulb led fixture
China aluminum cold forging bulb led fixture
