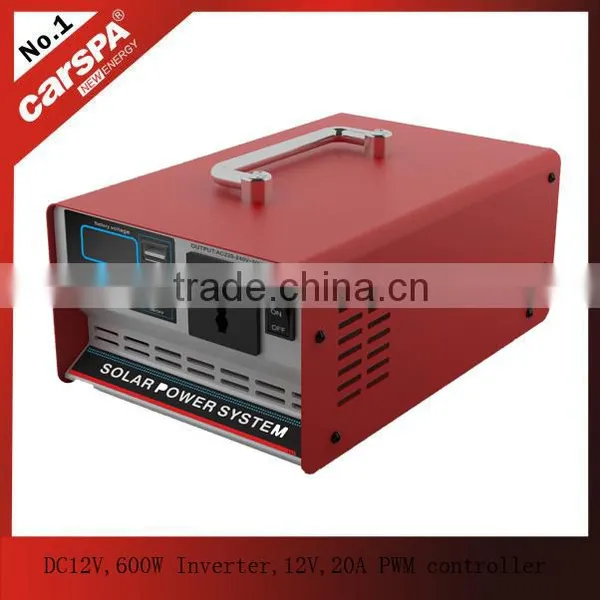

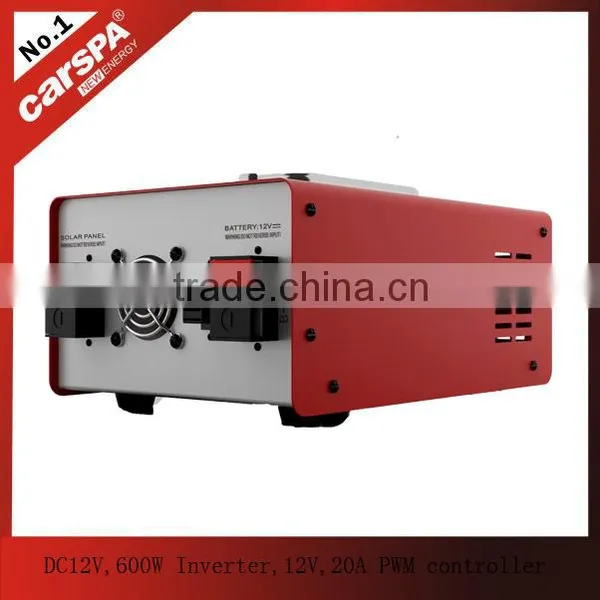

Help CenterChina Manufacturer 600W Inverter With Solar Charge Controller(solar Inverter)
Related Products
-
2016 New 400W Inverter With Solar Charge Controller(solar Inverter)US$ 57.9 - 66.6MOQ: 300 Pieces -
*China Manufacturer*, %400W% Inverter With Solar Charge Controller(solar Inverter)made in ChinaUS$ 57.9 - 66.6MOQ: 300 Pieces
-
"Off-grid Solar Power System", //400W Inverter With Solar Charge Controller(400W Solar Inverter)US$ 57.9 - 66.6MOQ: 300 Pieces
-
"Hot Sell" Off-grid Solar Power System,400W Inverter With Solar Charge Controller(solar Inverter) Made in ChinaUS$ 57.9 - 66.6MOQ: 300 Pieces
-
"Hot Sell Off-grid Power System", 600W Inverter With Solar Charge Controller(solar Inverter)US$ 67.2 - 77.3MOQ: 300 Pieces
Why Choose Us?
1. Professional Manufacturer---10years experience
2. High Quality Products----Hot selling in European Market
3. Reliable Service---We serve for our clients with a golden team.
4. Powerful R&D Team---We have R&D centers in Shanghai & Shenzhen, which can provide the ODM service for you.
5. Advanced Technology---We have adopted the SMT & used the imported components.
6. Factory Management---5S System Management provides us with clean, ordered and joyful working environment.
7. Imported Main Components---We used the main components from oversea market, such as USA, JAPAN, TAIWAN, etc.
Product Features:
1.DC output system with multiple interfaces can satisfy various demands.DC output interfaces are including 1pc 12VDC/3A and 1pc 5V,2.1A
2.Charge circuit adopts double MOS tandem control ciecuit,reducing nearly half ciucuit voltage losses than diode circuit,PWM fuzzy control is applied in the charging substantially increasing charge efficiency and using time.
3.Standby function under lower power consumption:after the startup in three minutes,if no detection on the output load,the system will automatically switch into lower power consumption standby mode.
4.Charge and discharge independently:discharging could happen when charging ;both of them are not interfered.
5.Charging display function:solar power light shall lit when solar panel start to charge for battery.There is one light indicates the normal working for inverter.The Fault light shall lit when lower voltage,over voltage, overload and short circuit happens.
6.All controls adopt industrial chip and precision components,which can work normally in cold,high temperature,moisture condition.
Specifications:
| Model | NSL550 | |
| Inverter part | Inverter rated power | 600W |
| Peak power | 1200W(few seconds) | |
| Output voltage | 110VAC or 220VAC | |
| Output frequency | 50/60Hz±1Hz | |
| No load current draw | ≤0.6A | |
| Output waveform | Pure sine wave THD≤5% | |
| Input voltage | 12V/24V | |
| Cooling fan | By load control | |
| Protection function | Bat.low voltage alarm&shut down,over temperature,over voltage,short circuit,reverse polarity,overload | |
| Charge controller part | Max.charge current | 20A |
| Max.load current | 4A±1A | |
| USB port | 5V,2.1A | |
| Others | Dimenssion(L*W*H) | 286*180*146mm |
| Unit weight | 2.81kg | |
| Output outlets | A,B,C,D,E,F,G,H,I type optional | |
