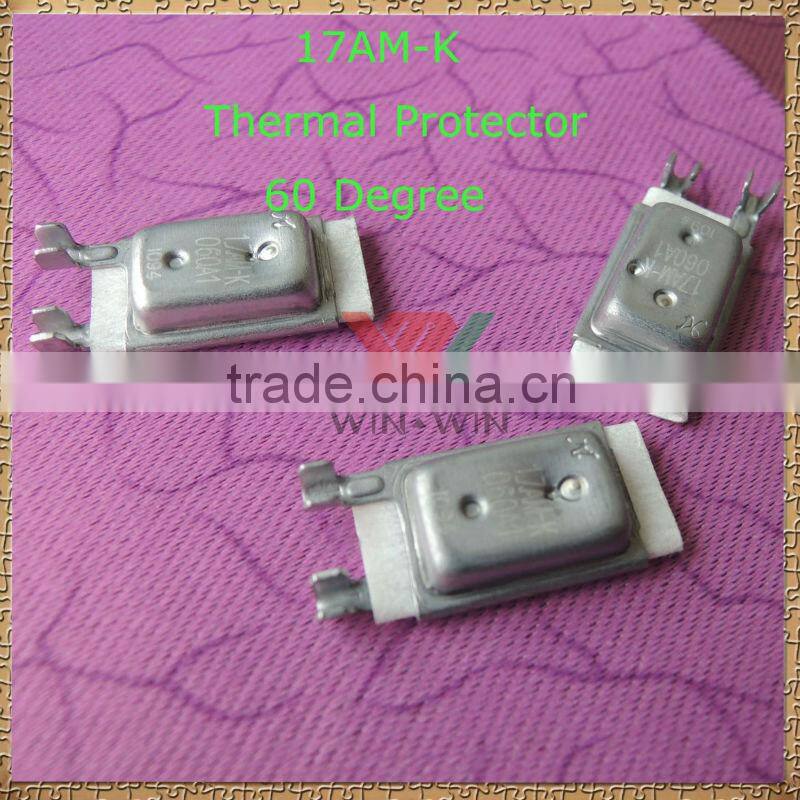

2014 Good Price Lightning Thermal Switch 17AM-K Thermal Protector 60 Degree With UL & VDE Compliant

Specifications

2014 Good Price Lightning Thermal Switch 17AM-K Thermal Protector with UL & VDE Compliant

1  Great 17AM-K Thermal Protector Usage

17AM-K series thermal protector is a kind of dual sensing of temperature and current characteristics of products, the advanced structure, small size and agility, contact capacity, long life characteristics, widely used in

*sub-horsepower motors,

*electric device,

*a fluorescent lamp ballasts,

*transformers,

*motor vehicles,

*integrated circuits and general overheating of electrical equipment over-current protection.

2  Thermal Switch Motor Thermal Protector Structure

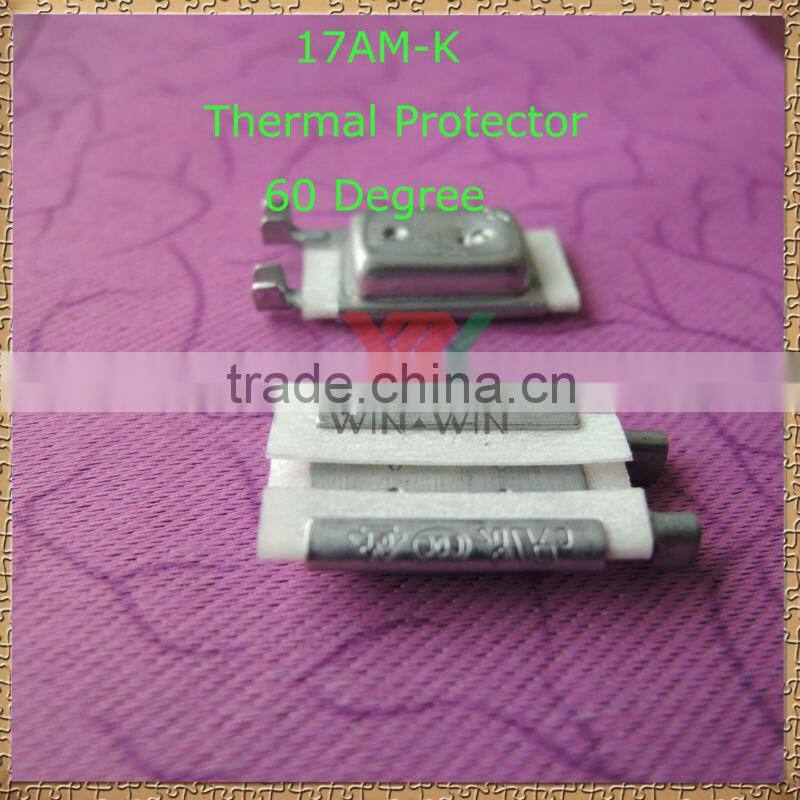

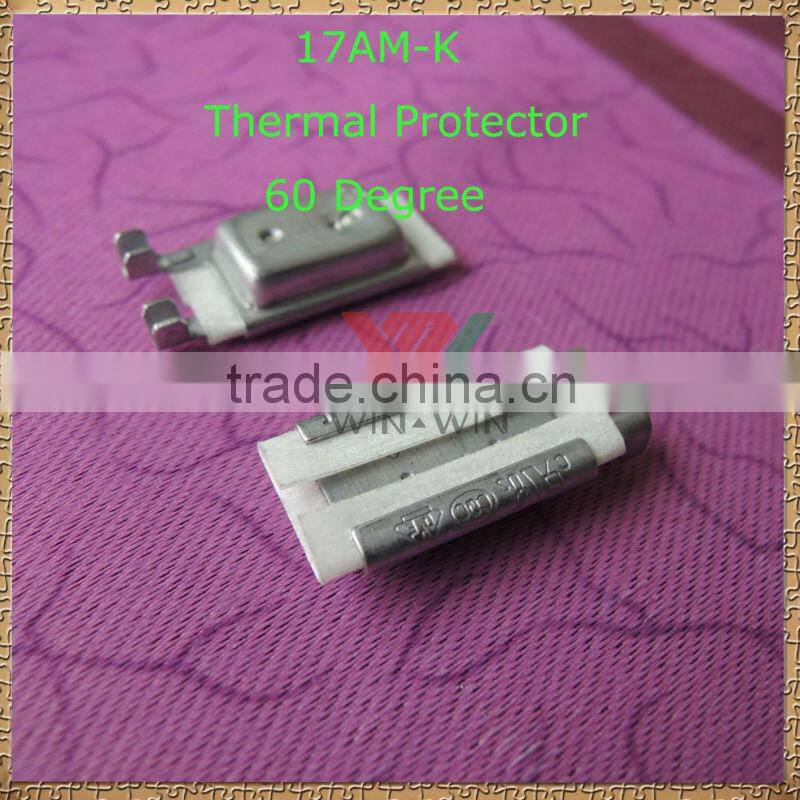

2.1Appearance: Dimensions meet the product requirements of the drawings (see photo);

2.2Wires: AWG22 # -16 # tinned copper wire, insulation layer of polyethylene material, a UL certified cable, or the implementation of customer requirements;

2.3 Housing: nickel-plated zinc alloy sheet;

2.4 Casing Material: Polyester insulating sleeve meet performance requirements for appliances.

3  Super High Quality 17AM-K Thermal Protector’s Performance

3.1 Rated current:

16A/125VAC, 8A/250VAC

3.2 Operating temperature:50 ~ 180 °C,Tolerance ± 5 °C (see below table).

        17AM-K series lightning thermal protector action temperature table

3. 3Tensile test: product of the terminal should be able to withstand greater than or equal to 50N tension, rivet line of should not be loose, wire breakage, slide.

4 Wonderful Thermal Protectors’ selling Advantages:

· Our sales work personally with you.

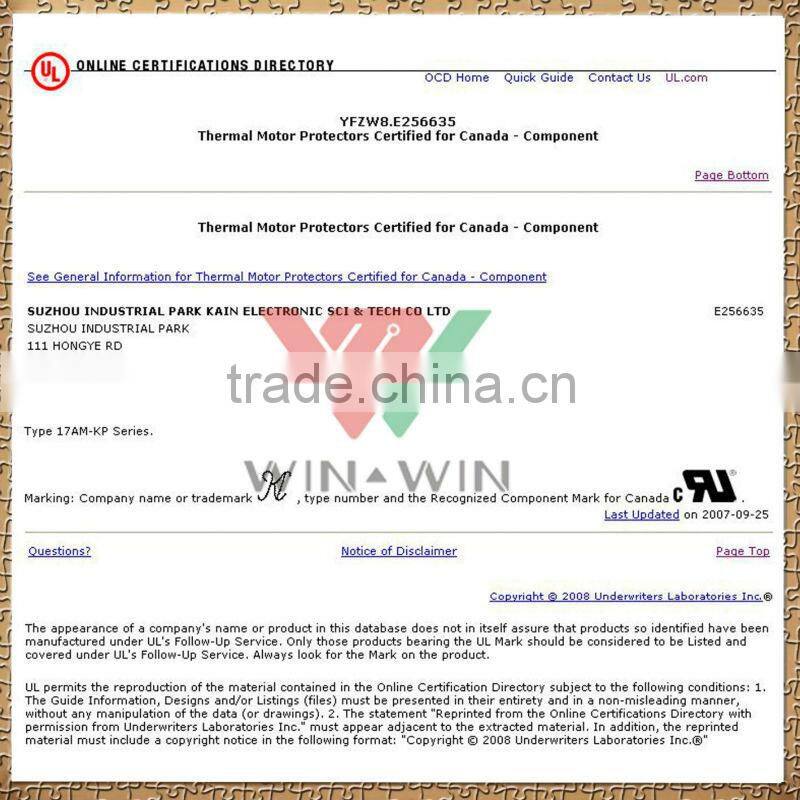

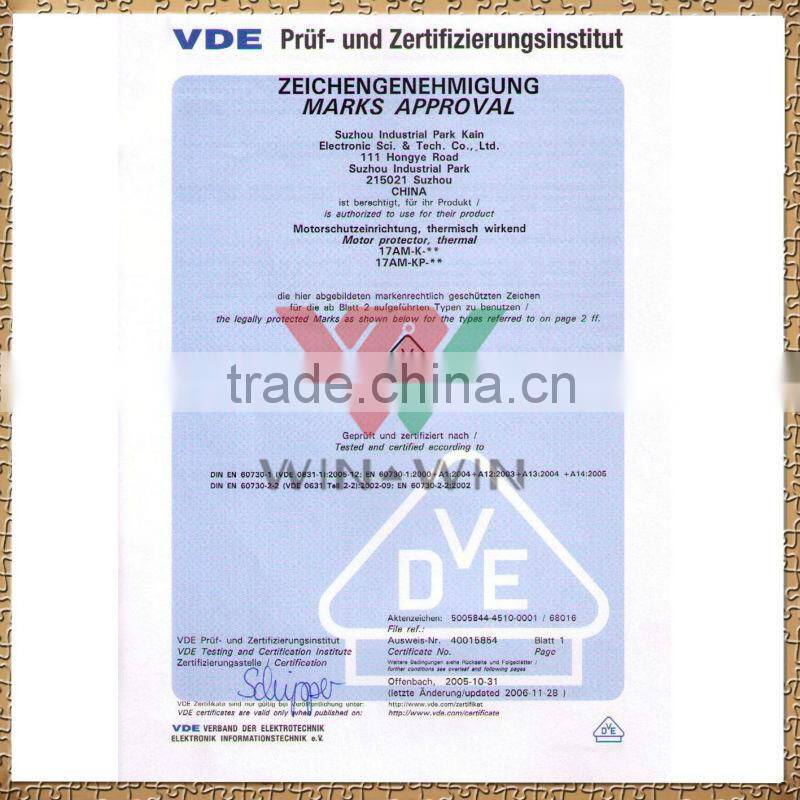

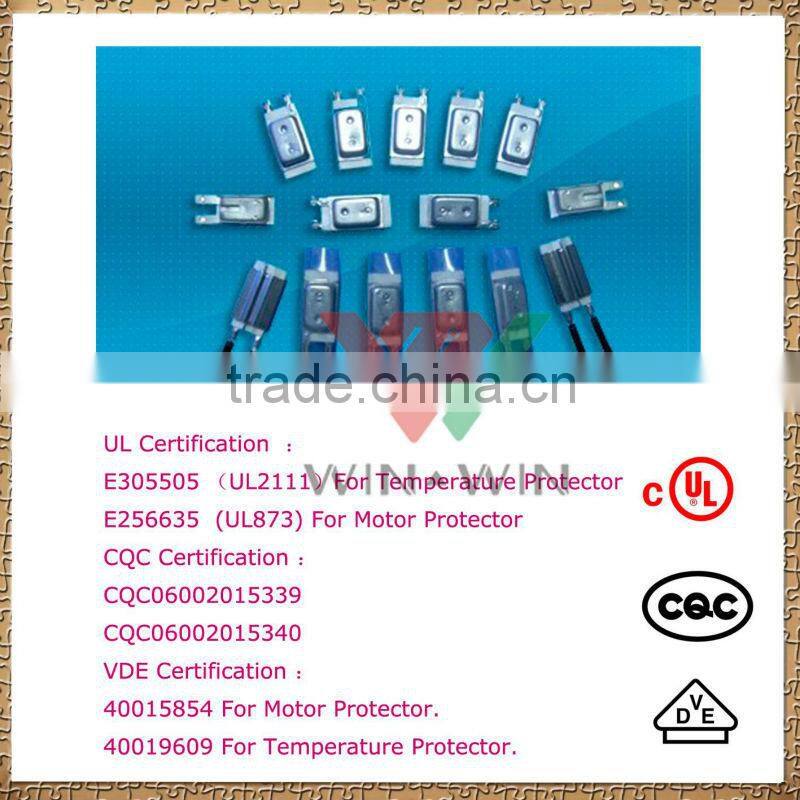

· All of our thermal protector/ thermal switch are already with UL/CUL, VDE, CQC, SGS & ROHS certificate appliance.

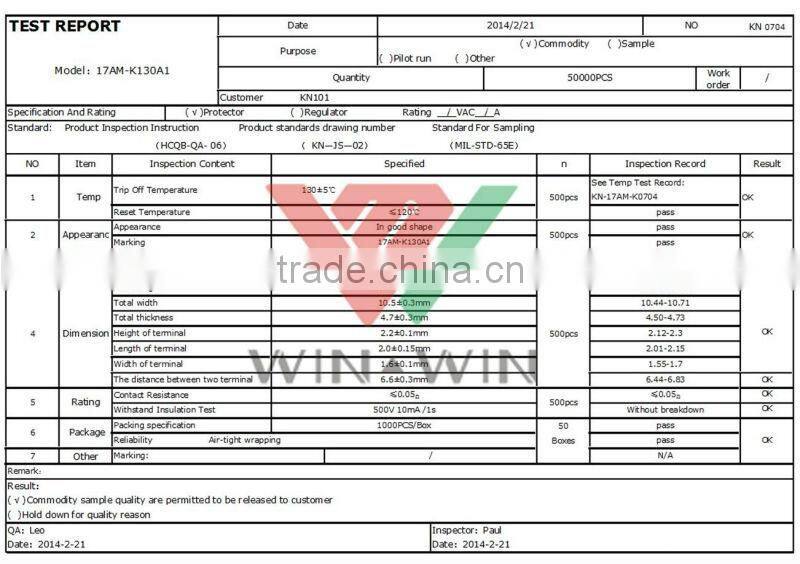

· We test 100% of your order before delivery.

· 7*24*52 services for you.

· Factory prices, absolutely competitive in the global industry interesting business.

5 ***Flexible MOQ With The Thermal Switch ***

We'd like to grow with our partners. And long term relation is we expect. We totally understand that the clients need to order the products in a small quantity at the beginning, especially for the new products.

To show our sincerity, we can accept small order in a small quantity for your evaluation. And there are great discount for big orders definitely.

6 ***Amazing Bimetal Thermal Protector Competitive Price and Promptly Delivery. ***

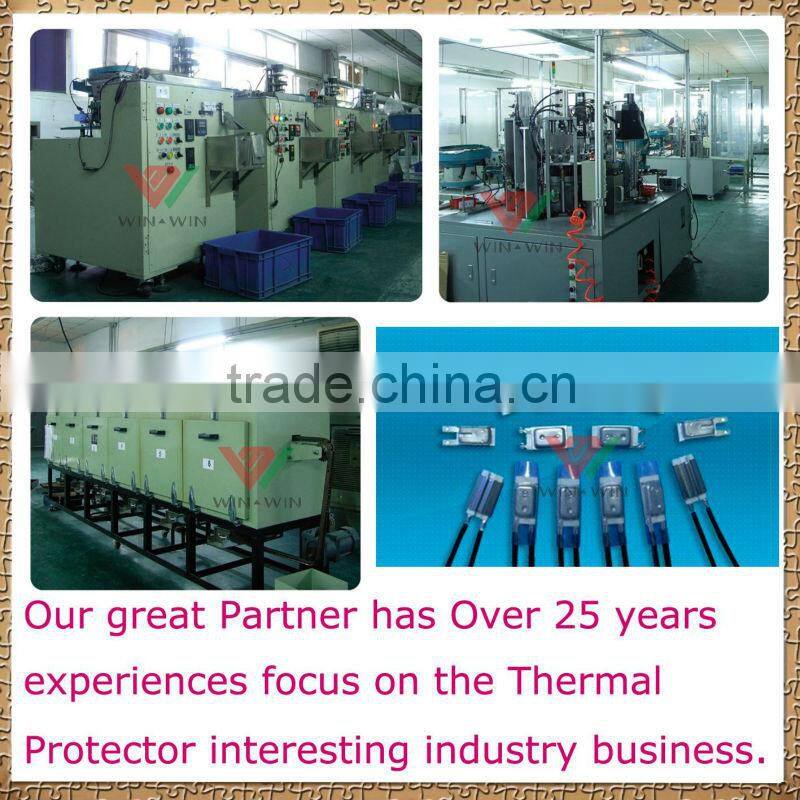

With good and stable relationship with the upstream suppliers, the capability of design and made the mold by ourselves, and the skilled & experienced workers, it make sure that we can provide the competitive price and finish the orders on time for the clients.

In order to let you feel more satisfied & confident to choose us, we feel more extremely pleasure share with you our products as below:

We Dongguan Win-Win Electrical Co., Ltd have been specialized in supplying Electrical Connectors for more than 6 years. We are striving to provide Electrical connector products with good quality, best service and competitive prices based on our expertise and good conscious team. Most popular connectors such as:

17AM-K 50-180 ° C Thermal Protector,

USB Connector,

HDMI Connector,

DC Power Jack,

DC Power Inline Plug,

1.25/2.0/2.54/3.9mm Pitch Wafer Connector,

187/250 Insulation Terminal Connector,

Ekowool Silica Braided / Twisted Wick etc

are widely used & export to USA, Brazil, Mexico, Russia, Germany, UK, France, Turkey, Israel, Denmark etc beautiful countries & enjoy a high reputation from all of our wonderful customers over there.

Suppose you have any questions or smart minds on developing new connector products, are warmly welcome to contact us, we must strive all our best to reply you within 12 hours and provide the great solutions for your nice reference top priority.Win-Win Team must consist provide 7*24*52 best services for you forever, make mutual benefits for both of us will build our sincerely & honestly friendly business relationships last whole our life time. You Happy, we feel more great happier. We firmly believe that long-term customer satisfaction is the cornerstone of our success, looking forward to your great visiting or contacting us at your most convenient time.
