Mobile Phone Keypad/ Plastic Translucent Keys Hand-hold Fiber Laser Marking Machine

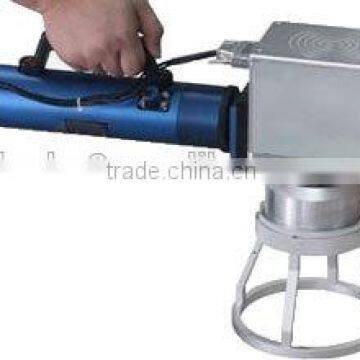

Mobile Phone Keypad/ Plastic Translucent Keys Hand-hold Fiber Laser Marking Machine photo-1
Mobile Phone Keypad/ Plastic Translucent Keys Hand-hold Fiber Laser Marking Machine photo-2
Mobile Phone Keypad/ Plastic Translucent Keys Hand-hold Fiber Laser Marking Machine photo-3
Mobile Phone Keypad/ Plastic Translucent Keys Hand-hold Fiber Laser Marking Machine photo-4
Mobile Phone Keypad/ Plastic Translucent Keys Hand-hold Fiber Laser Marking Machine photo-5
US$ 2,000 - 6,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Laser Type:
Fiber Laser
CNC or Not:
Yes
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/ Tianjin/ Shanghai/ Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Laser Type Fiber Laser
CNC or Not Yes
Cooling Mode Air Cooling
Graphic Format Supported AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, Other
Place of Origin Shandong, China
Brand Name Bodor
Model Number BML-FH(S)
Power(W) 10w 20w 30w
Certification CE, ISO, Other, CE, ISO, FDA BV
After-sales Service Provided Engineers available to service machinery overseas



Product Description



hand hold color marking fiber laser marking machine metal, pvc, plastique



Main Features

1.Adopting separated design. The portable part can move according to processing demand, and mark on big and heavy materials directly, which break through the limitation of working table and bring more convenience to our respected customers. 2.Equipped with focal length adjustable protective covering, to ensure marking accuracy. 3. High quality laser path suitable for delicate marking. Reaching nearest to the limit of diffraction. Exporting TEMOO of fundamental transverse mode. M2 near to 1. Beam divergence angle is only 1/4 of diode laser. Focus dot diameter is not over 20 um. 4. High pulse repeating rate and stable power bring high speed laser marking. Unit pulse power surge is lower than 1%. Easy control laser dot size, thickness and shape. 5. High speed 2-3 times over than traditional diode pumped marking machine. 6. Air-cooling smart machine size! 7. Long lifetime. Ultra-low power consumption of 0.5 kw. Efficiency conversion reach to over 30%. 8.Suitable for various fiber laser generators.

                                           Technical Parameter of hand hold fiber laser marking machine



Model BML10FH/20FH/30FH BML10FHS
Marking Range 100*100mm 100*100mm
Laser Power 10W/20W/30W 10W
Q-frequency 20KHz~80KHz 20KHz~30KHz
Laser Wavelength 1064nm
Divergence 0.3mard
Minimum Line Width 0.02mm
Minimum Character 0.15mm
Marking Depth 0 ~0.5mm
Engraving Line Speed ≤7000mm/s
Repeatability Accuracy ±0.001mm
Beam Quality M2:1.2~1.8
Marking Format Graphics, Text, Bar Codes, Two-dimensional Code, Automatically Marking the Date,Batch Number,Serial Number,Frequency,etc.
Graphic Format Supported bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.
Working Voltage 220V±10%/50Hz/4A
Unit Power <0.5kw
Use of the Environment Clean and Dust Free or Dust less
Working Condition:Humidity 5%-75%,Free of Condensed Water
Laser Module Life >100000 hours

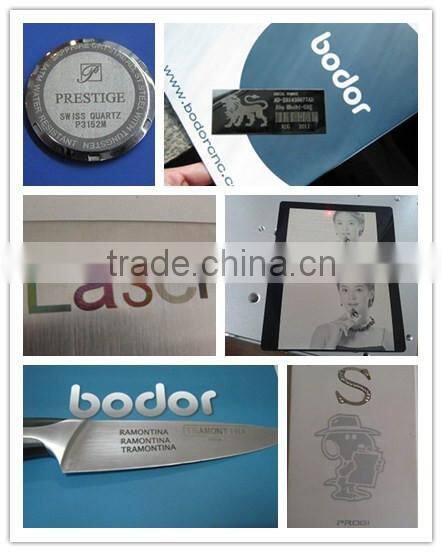

Images for hand hold fiber laser marking machine

Mobile phone keypad/ plastic translucent keys Hand-hold fiber laser marking machine >Mobile phone keypad/ plastic translucent keys Hand-hold fiber laser marking machine

Mobile phone keypad/ plastic translucent keys Hand-hold fiber laser marking machine

Mobile phone keypad/ plastic translucent keys Hand-hold fiber laser marking machine

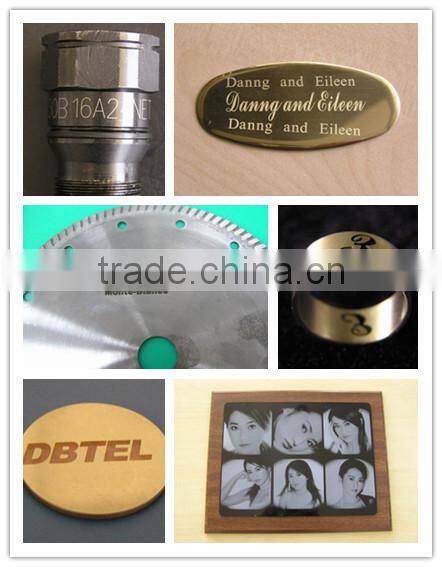

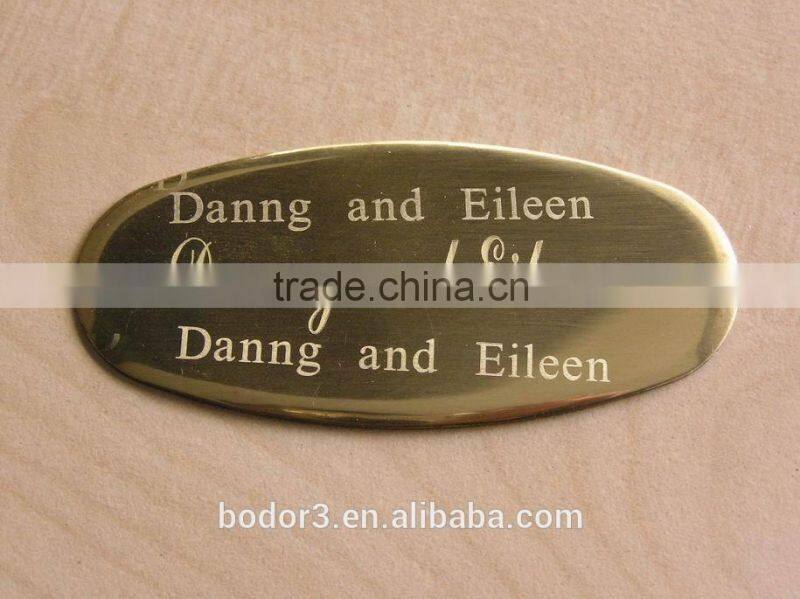

                                                metal laser marking samples





Packaging & Shipping



inside package:  transparent membrane



outside package: wooden boxes for sea transport or air transport





Company Information



Jinan Bodor CNC Machine Co.,Ltd was founded in 2002.



In 2008 we formally changed name to Bodor with RMB 10 million registered capital.For 12 years,Bodor laser has always been devoted in studying and manufacturing laser cutting,engraving and marking etc




Our Services



  2 year warranty
