Help CenterBodor 20w Hand-hold Metal Fiber Laser Marking Machine
Related Products
-
Bodor Good Price On-line Laser Marking MachineUS$ 11,000 - 15,000MOQ: 1 Set -
Bodor Good Price Metal Auto-turntable Laser Marking MachineUS$ 8,000 - 20,000MOQ: 1 Set
-
10W 20W 30W Fiber Laser Marking Machine BML-FTUS$ 4,000 - 6,000MOQ: 1 Set
-
CNC Suppliers New Designed Portable Fiber Laser Marking Machine Quality ChoiceUS$ 3,000 - 8,000MOQ: 1 Set
-
Lowest Price 2015 China Hot Selling High Speed Dustrial Fiber Laser Marking MachineUS$ 5,000 - 10,000MOQ: 1 Set
Main Features
2.Equipped with focal length adjustable protective covering, to ensure marking accuracy.
3. High quality laser path suitable for delicate marking. Reaching nearest to the limit of diffraction. Exporting TEMOO of fundamental transverse mode. M2 near to 1. Beam divergence angle is only 1/4 of diode laser. Focus dot diameter is not over 20 um.
4. High pulse repeating rate and stable power bring high speed laser marking. Unit pulse power surge is lower than 1%. Easy control laser dot size, thickness and shape.
5. High speed 2-3 times over than traditional diode pumped marking machine.
6. Air-cooling smart machine size!
7. Long lifetime. Ultra-low power consumption of 0.5 kw. Efficiency conversion reach to over 30%.
8.Suitable for various fiber laser generators.
Model |
BML10FH/20FH/30FH |
Marking Range |
100*100mm |
Laser Power |
10W/20W/30W |
Q-frequency |
20KHz~80KHz |
Laser Wavelength |
1064nm |
Divergence |
0.3mard |
Minimum Line Width |
0.02mm |
Minimum Character |
0.15mm |
Marking Depth |
0 ~0.5mm |
Engraving Line Speed |
≤7000mm/s |
Repeatability Accuracy |
±0.001mm |
Beam Quality |
M2:1.2~1.8 |
Marking Format |
Graphics, Text, Bar Codes, Two-dimensional Code, Automatically Marking the Date, Batchnumber,Serialnumber,Frequency,etc. |
Graphic Format Supported |
bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc. |
Working Voltage |
220V±10%/50Hz/4A |
Unit Power |
<0.5kw |
Use of the Environment |
Clean and Dust Free or Dust less |
Working Condition:Humidity |
5%-75%,Free of Condensed Water |
Laser Module Life |
>100000 hours |
Samples

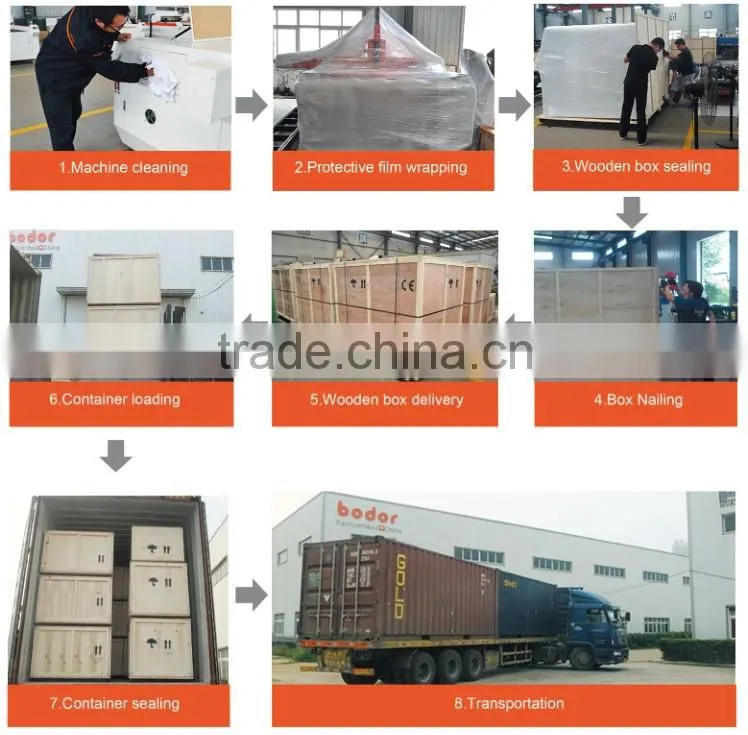

Our Package Advantage:
1.Our wooden case is after fumigation treatment.Needn’t timber inspection,saving shipping time.
2.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.
Avoiding all damages that could happen in the delivery process.Then we’ll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
3.The outmost is wooden case with fixed formwork.
4.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
We offer
- Sea Transportation
- Land Transportation
- Air Transportation
2 Years Warranty
1) 24 Hours online service.
2) 24 months warranty for the whole machine except for wearing parts.
3) Engineers available to service machinery overseas.
About Bodor
Jinan Bodor CNC Machine Co.,Ltd was founded in 2002.In 2008 we formally changed name to Bodor with RMB 10 million registered capital.For 12 years,Bodor laser has always been devoted in studying and manufacturing laser cutting,engraving and marking etc.
With all Bodor staff persistence and hard working,Bodor laser has developed to a large-scale international manufacturing company.More accuracy,more automatically and higher quality products with intimate after-sales service enables Bodor be the leader of laser industry.Suitable services for customers,2-year warranty products,standard scientific management make bodor earn the best reputation and word-wide trusted customers.
For 12 years,Bodor laser machines cover all Chinese market and also very popular in America,West Europe,South Asian,East Asian etc. More than 80 countries. Bodor lasers will try our best to serve for you suitable laser solutions. Welcome you to join Bodor family,share top laser products and services together with word-wide customers.
Our Customer in Factory
Products series
Our sales team
1-Does this machine pass CE certificate?
-Yes, this machine passed European CE certificate and meet Safety Standard.
2-How long time about machine warranty?
-Two years.
3-Do you have agent or distributor in our country?
-There are so many end-users in your country, and just we are looking for agent in your country, do you have any interest?
4-Could you ship the machine to our address?
-Usually how to ship the machine, by sea, by air, by land or even by internation express are considered, we will give you the best choice according to your adress and model, even budget.
